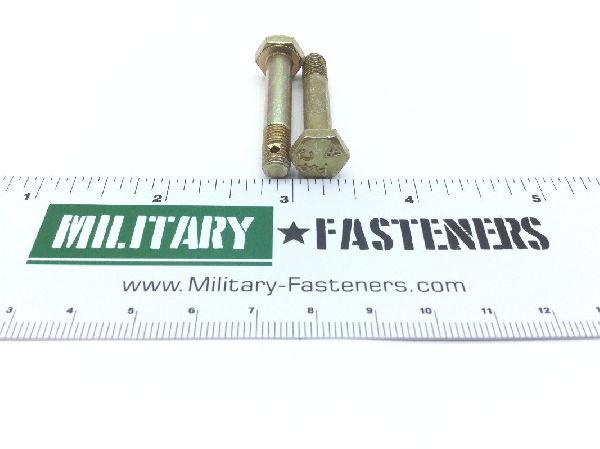

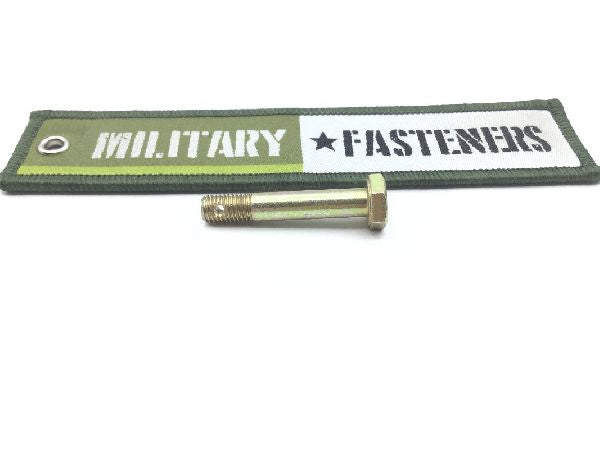

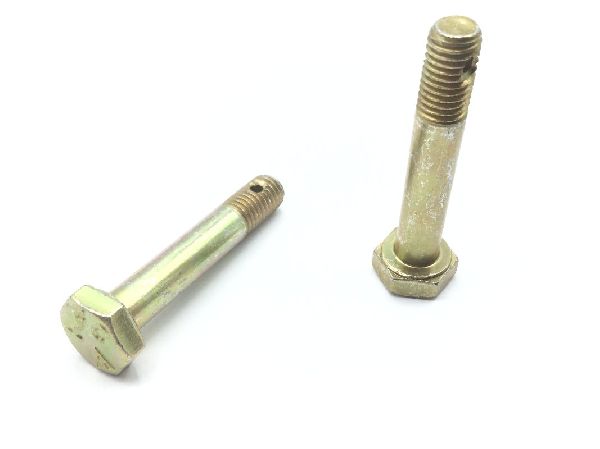

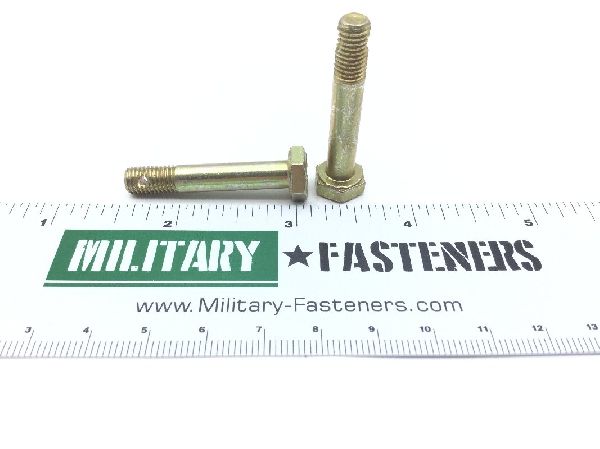

AN174-13 Machine Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Hexagon

Material

Steel comp 4140 or steel comp 8740 or steel comp 8630 or steel comp 8735 or steel comp 4130 or steel comp 4037

Surface Treatment

Qq-p-416 type 2 cl 3 federal specification single treatment response

Thread Class

Distance From Head Largest Bearing Surface To Shank Hole Center: 1.240 inches first hole and 1.260 inches first hole
Fastener Length: Between 1.391 inches and 1.438 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.922 inches and 0.953 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.140 inches and 0.172 inches
Min. Tensile Strength (psi): 125000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.076 inches first hole and 0.086 inches first hole
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.438 inches and 0.516 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.428 inches and 0.440 inches
