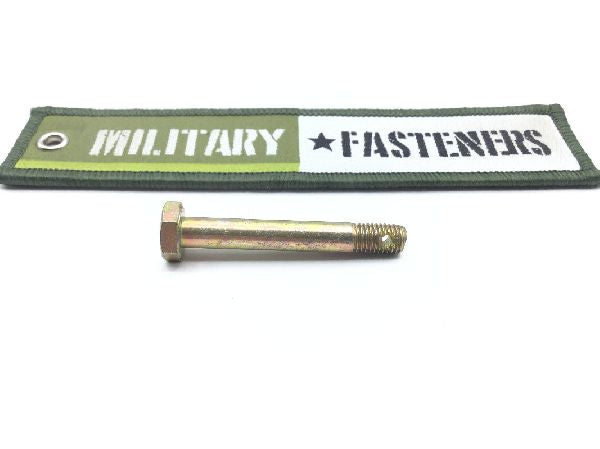

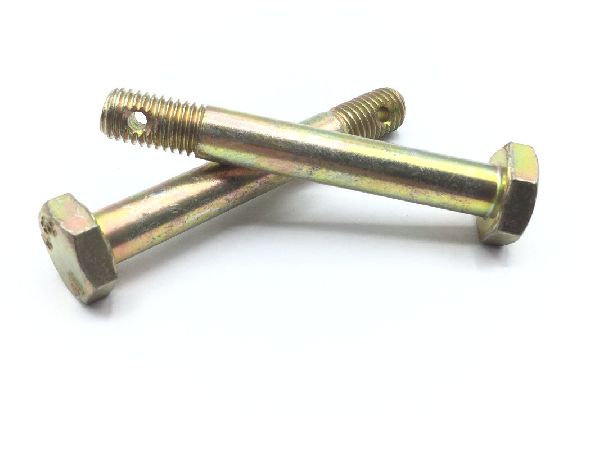

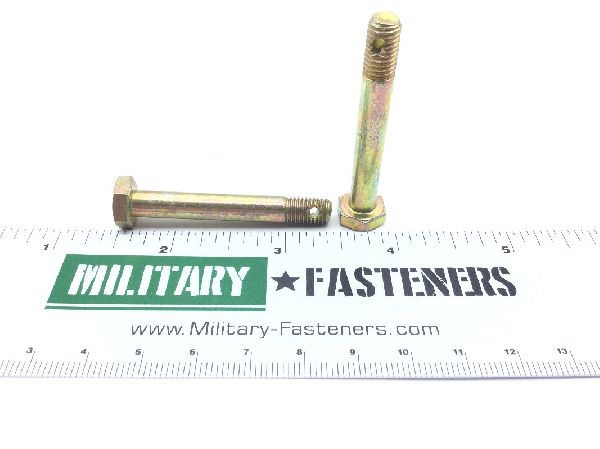

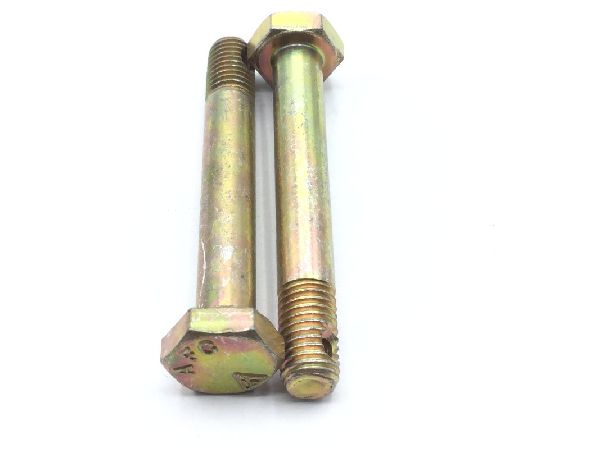

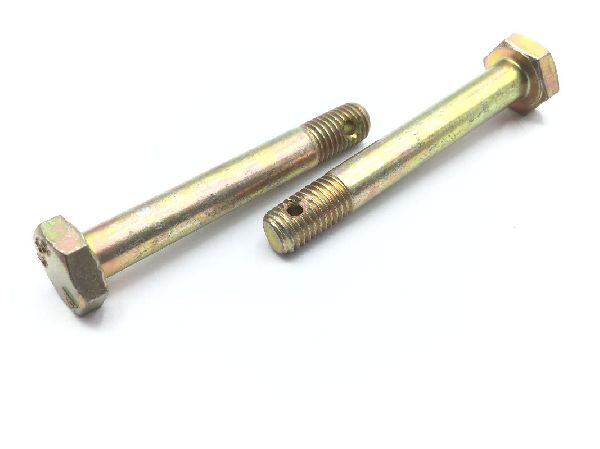

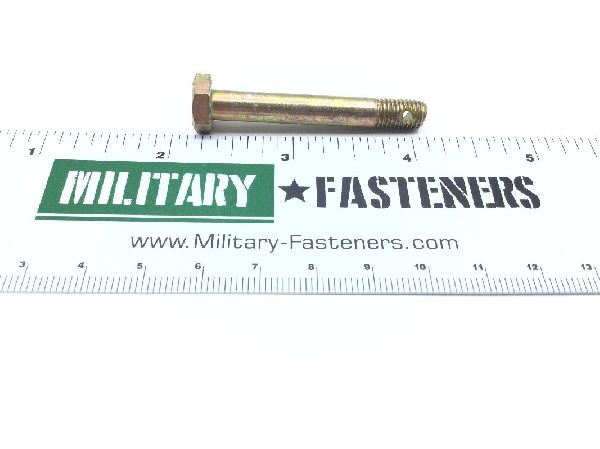

AN174-16 Close Tolerance Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $2.91

Units per Pack 10

Price per Pack $29.10

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $29.10

Add item to quote

Head Style

Hexagon

Material

Steel comp 8740 or steel comp 8630 or steel comp 8735 or steel comp 4140 or steel comp 4130 or steel comp 4037

Surface Treatment

Class 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Distance From Head Largest Bearing Surface To Shank Hole Center: 1.624 inches first hole
Fastener Length: Between 1.766 inches and 1.812 inches
Grip Diameter: Between 0.2487 inches and 0.2492 inches
Grip Length: 1.312 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.140 inches and 0.172 inches
Min. Tensile Strength (psi): 125000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.076 inches first hole
Surface Finish: 63.0 microinches grip
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.437 inches and 0.516 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.428 inches and 0.440 inches
