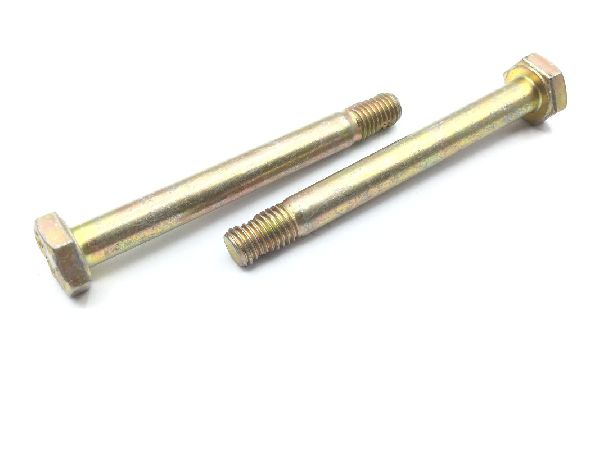

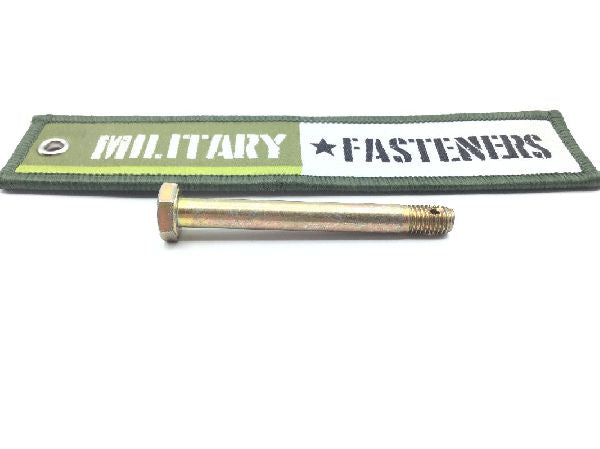

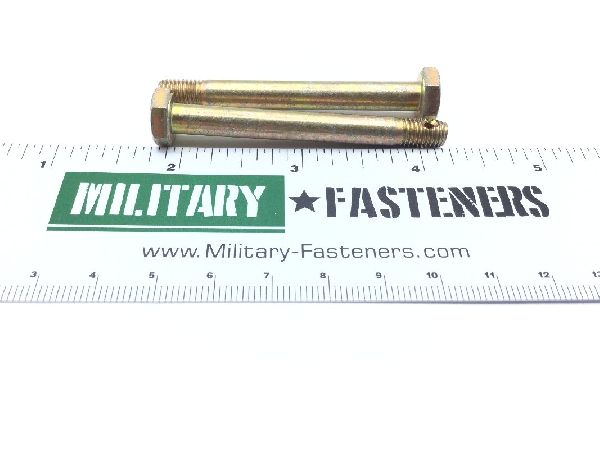

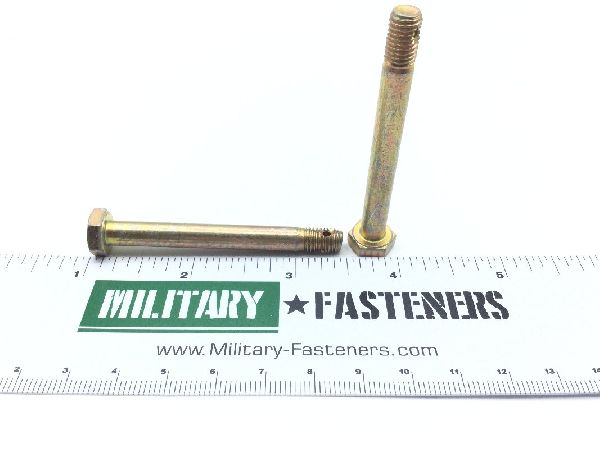

AN174-22 Close Tolerance Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Hexagon

Material

Steel

Thread Class

End Application: chinook ch-47d helicopter
Fastener Length: 2.281 inches
Grip Diameter: Between 0.2487 inches and 0.2492 inches
Grip Length: 1.812 inches
Head Height: Between 0.124 inches and 0.156 inches
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 0.469 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.428 inches and 0.440 inches
