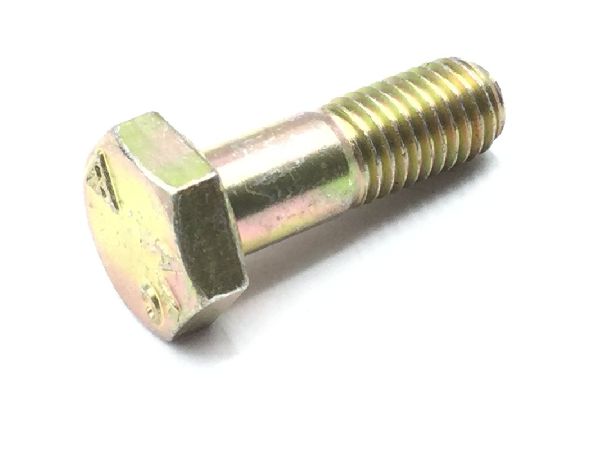

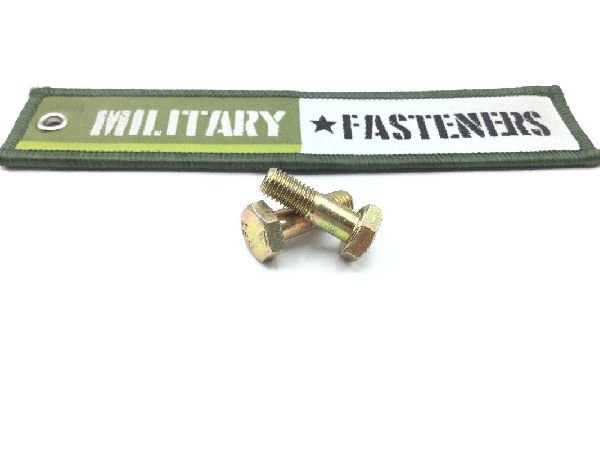

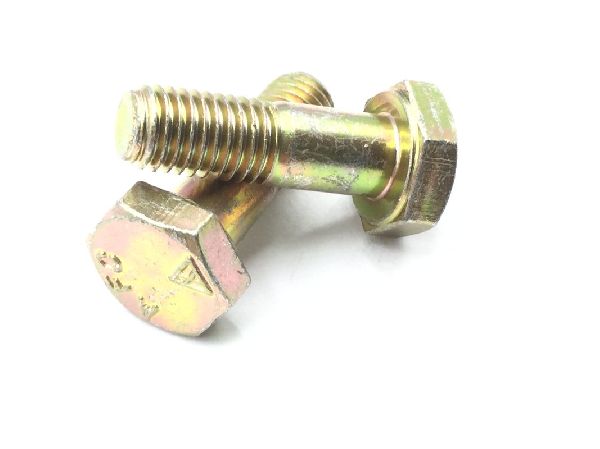

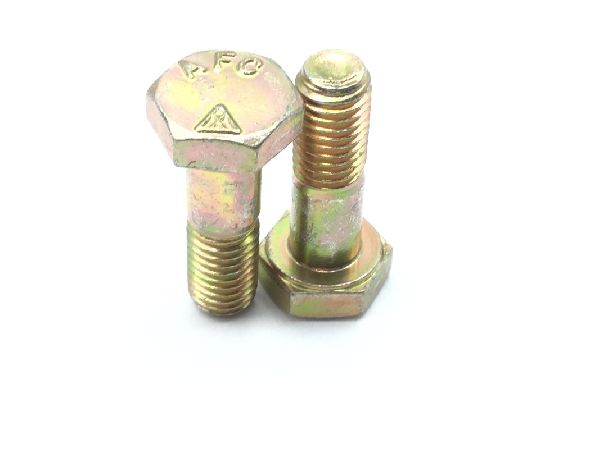

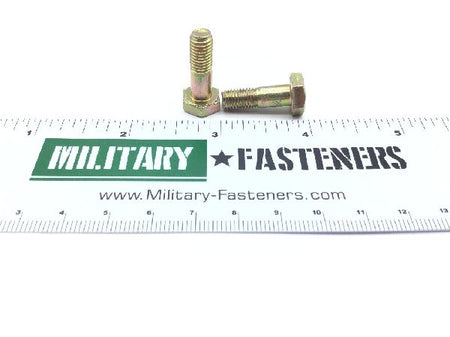

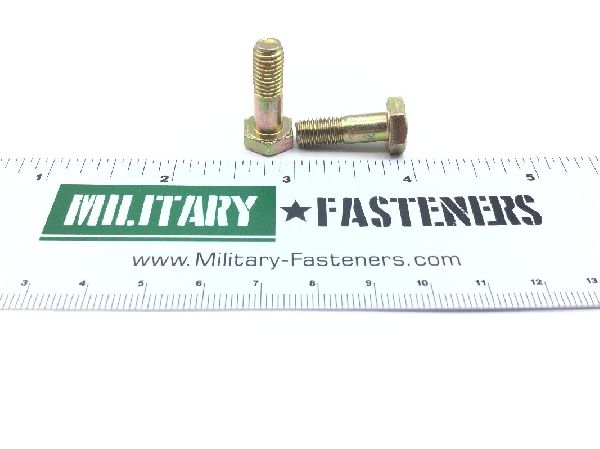

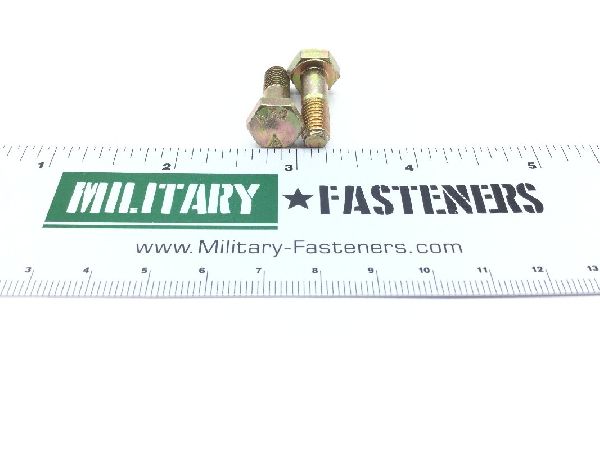

AN174-6A Close Tolerance Bolt

NSN: 5306-00-206-4910
Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $1.31

Units per Pack 25

Price per Pack $32.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $32.75

Add item to quote

Head Style

Hexagon

Material

Steel comp 4140 or steel comp 8740 or steel comp 8630 or steel comp 8735 or steel comp 4130 or steel comp 4037

Surface Treatment

Cl 3 federal specification all treatment responses type 2 qq-p-416

Thread Class

Fastener Length: 0.781 inches
Grip Diameter: Between 0.2487 inches and 0.2492 inches
Grip Length: 0.312 inches
Hardness Rating: 26 rockwell c and 32 rockwell c
Head Height: Between 0.14 inches and 0.172 inches
Min. Tensile Strength (psi): 125000 pounds per square inch
Surface Finish: 63 microinches grip
Thread Diameter: 0.25 inches
Thread Direction: Right-hand
Thread Length: 0.469 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.428 inches and 0.44 inches
