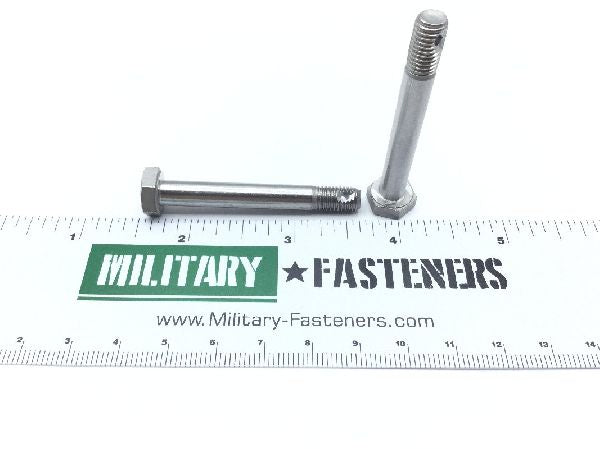

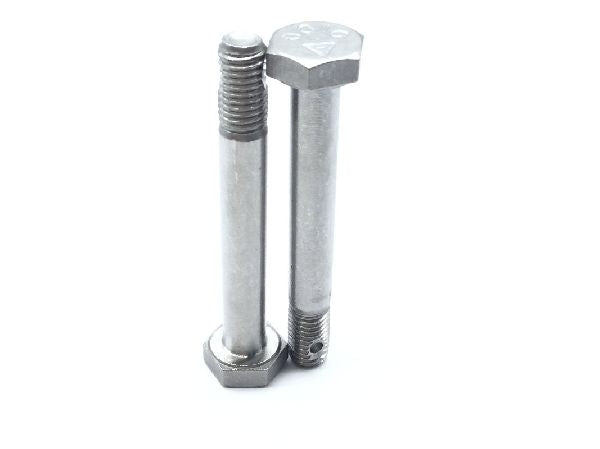

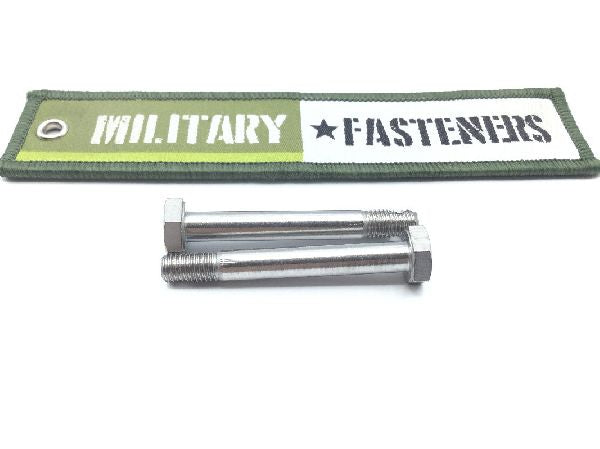

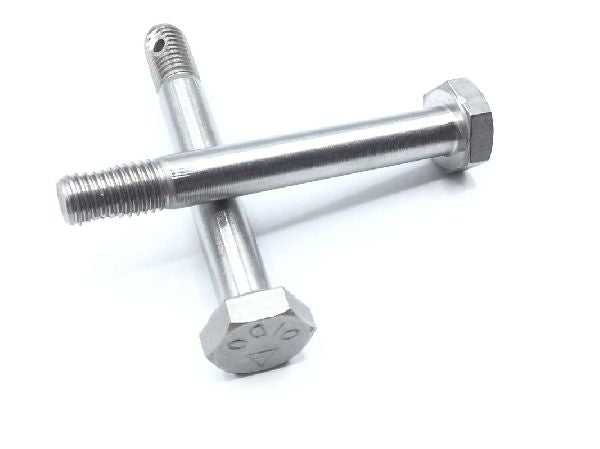

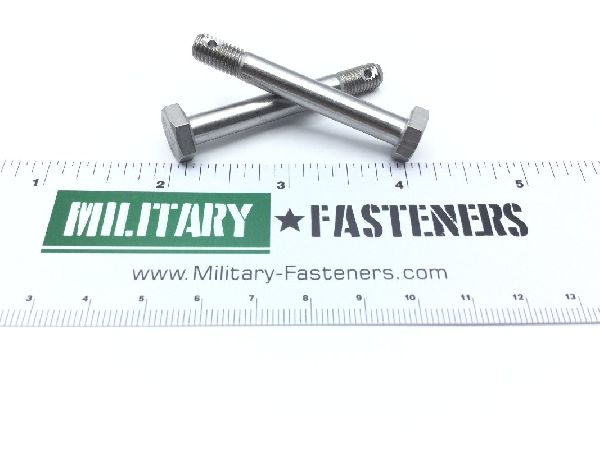

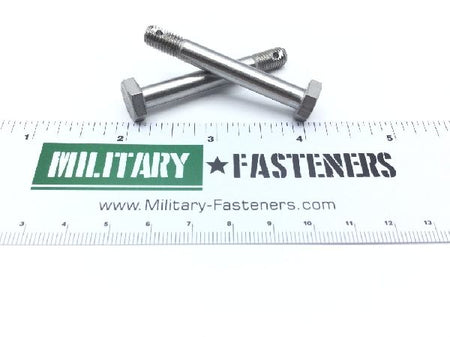

AN174C17 Close Tolerance Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Hexagon

Material

Steel

Thread Class

Distance From Head Largest Bearing Surface To Shank Hole Center: 1.734 inches first hole and 1.766 inches first hole
Fastener Length: Between 1.890 inches and 1.937 inches
Grip Diameter: Between 0.2487 inches and 0.2492 inches
Grip Length: Between 1.422 inches and 1.454 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.140 inches and 0.172 inches
Material Specification: Mil-s-18732 military specification single material response
Min. Tensile Strength (psi): 125000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.076 inches first hole and 0.086 inches first hole
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.436 inches and 0.515 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.428 inches and 0.440 inches
