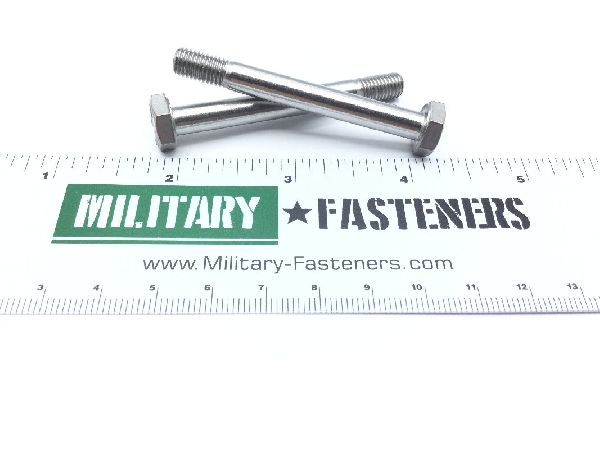

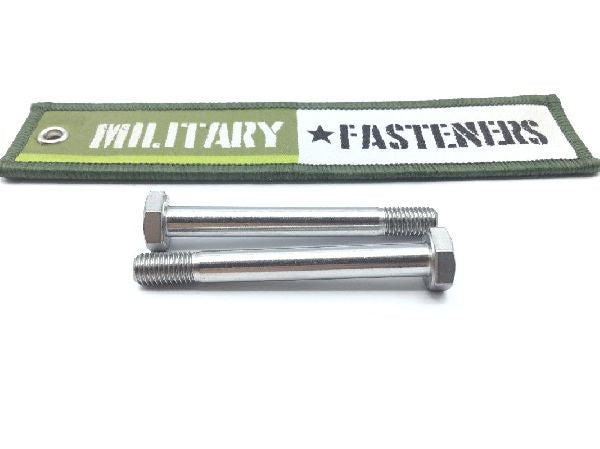

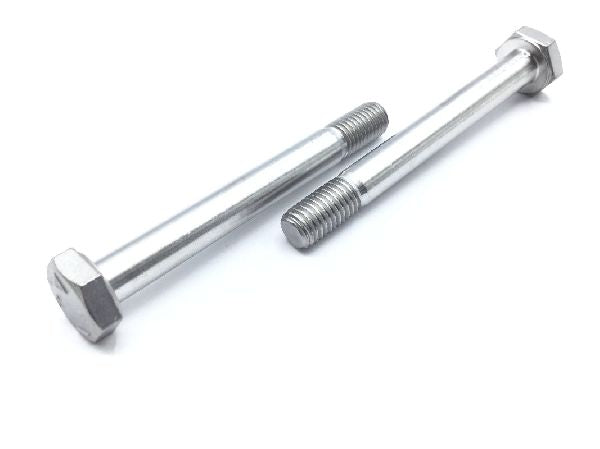

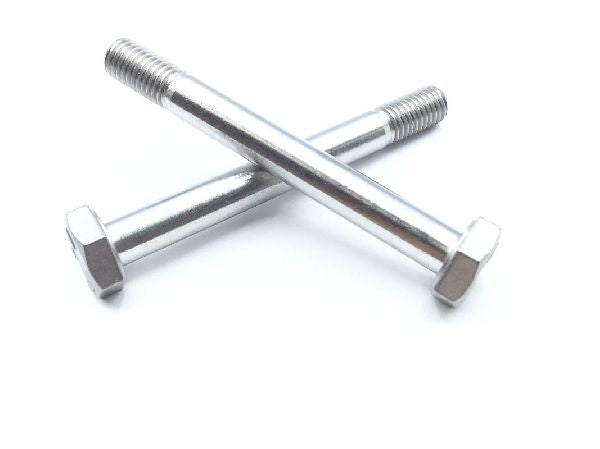

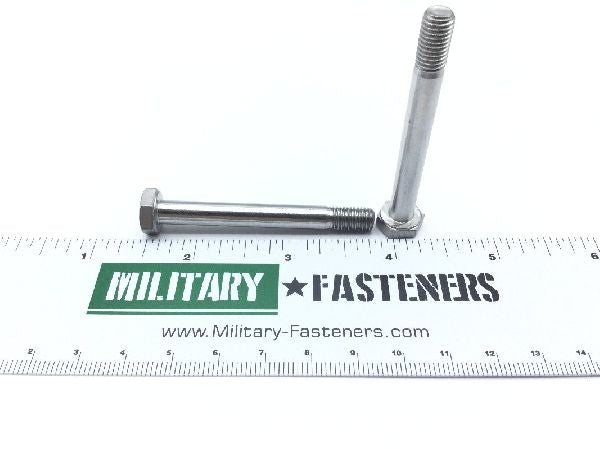

AN174C21A Close Tolerance Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Hexagon

Material

Steel

Thread Class

Fastener Length: Between 2.141 inches and 2.188 inches
Grip Diameter: Between 0.2487 inches and 0.2492 inches
Grip Length: Between 1.672 inches and 1.703 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.140 inches and 0.172 inches
Material Specification: Mil-s-18732 military specification single material response
Min. Tensile Strength (psi): 125000 pounds per square inch
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.438 inches and 0.515 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.428 inches and 0.440 inches
