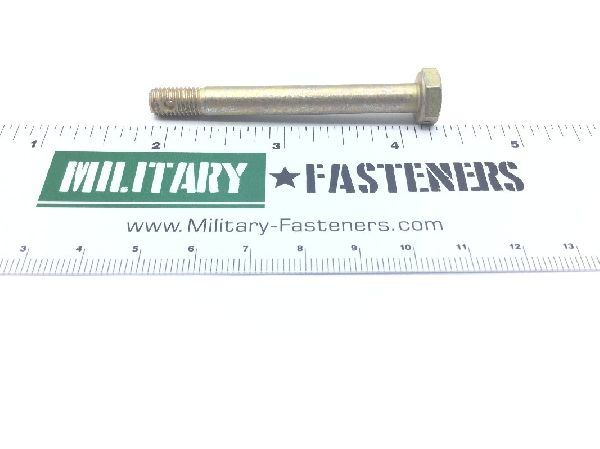

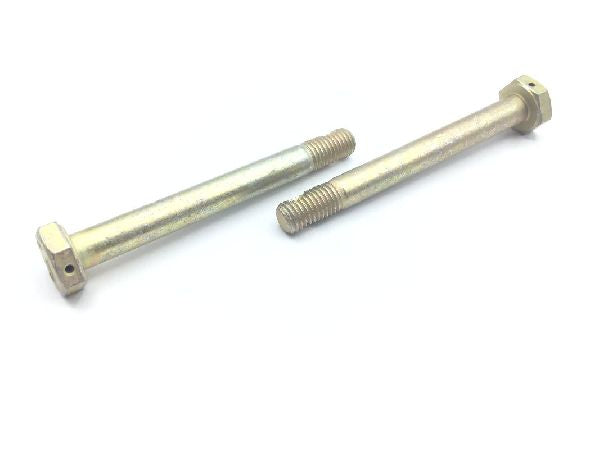

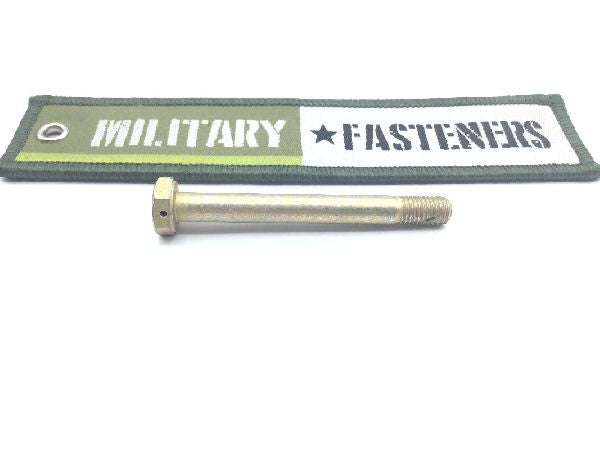

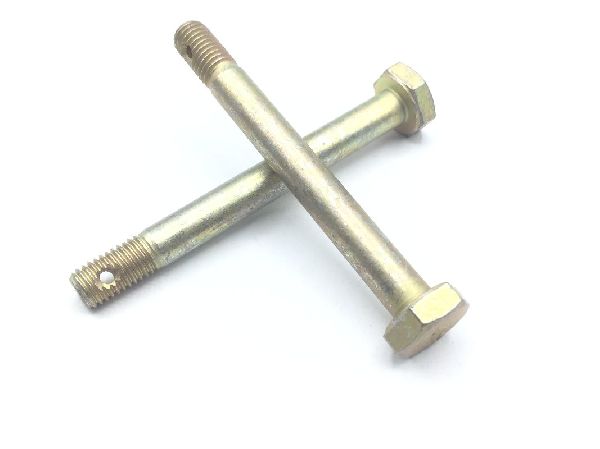

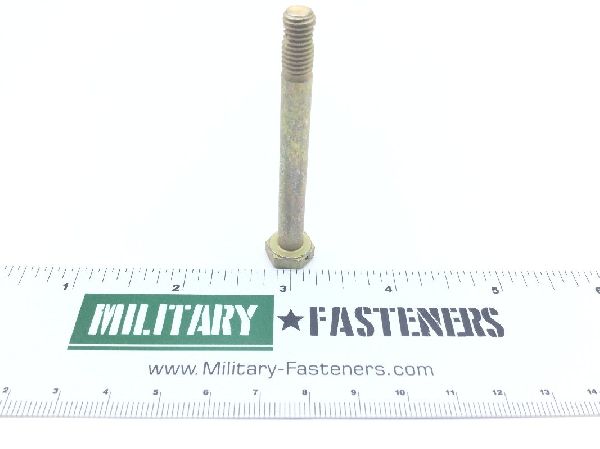

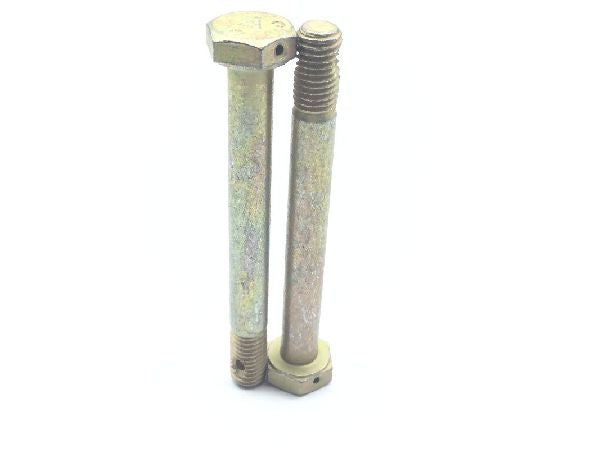

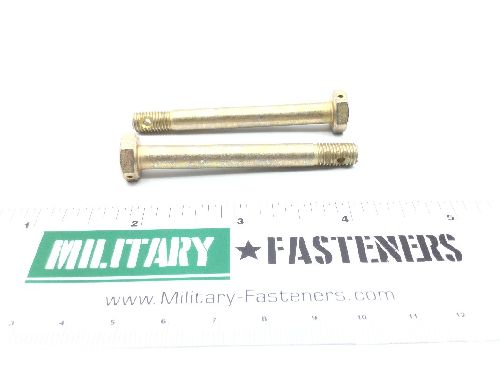

AN174H22 Close Tolerance Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $6.86

Units per Pack 10

Price per Pack $68.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $68.60

Add item to quote

Head Style

Hexagon

Material

Steel comp

Surface Treatment

Qq-p-416 type 2 cl 3 federal specification single treatment response

Thread Class

Distance From Head Largest Surface To Shank Hole Center: 2.124 inches first hole
Fastener Length: 2.281 inches
Grip Diameter: Between 0.2487 inches and 0.2492 inches
Grip Length: 1.812 inches
Hardness Rating: 26 rockwell c and 32 rockwell c
Head Height: Between 0.14 inches and 0.172 inches
Hole Configuration Style: Hexagon flats
Hole Quantity: 1
Hole Type: Drilled
Min. Tensile Strength (psi): 125000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.076 inches first hole
Surface Finish: 63.0 microinches surface of head
Thread Diameter: 0.25 inches
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.428 inches and 0.440 inches
Hole Diameter: 0.046 inches
