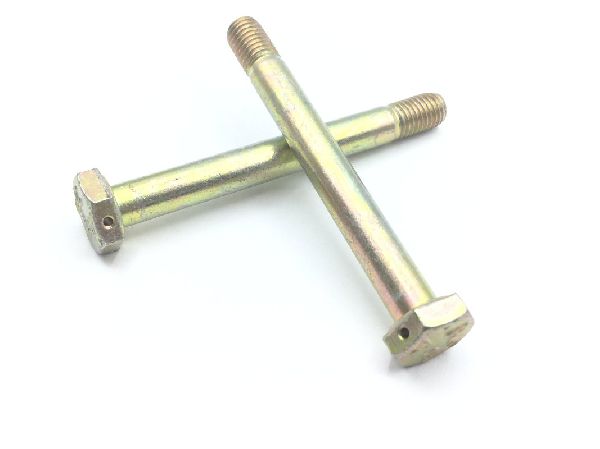

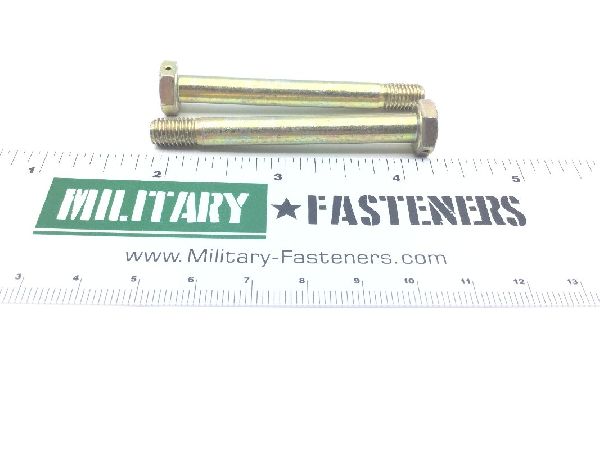

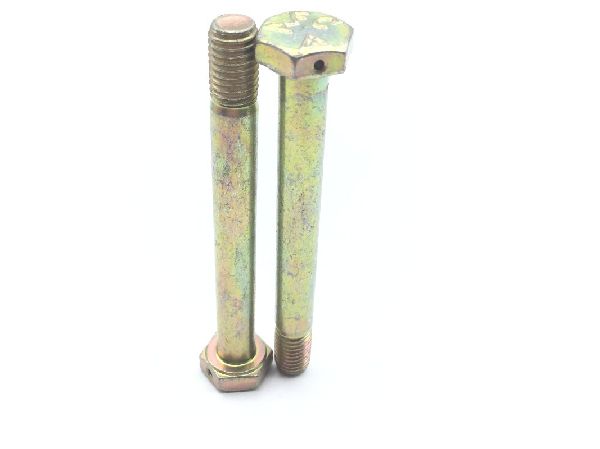

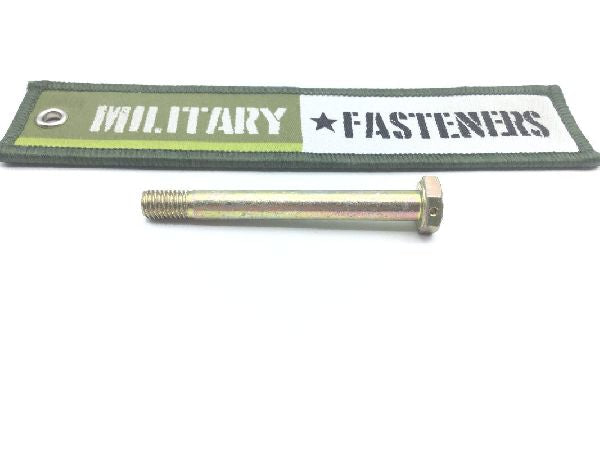

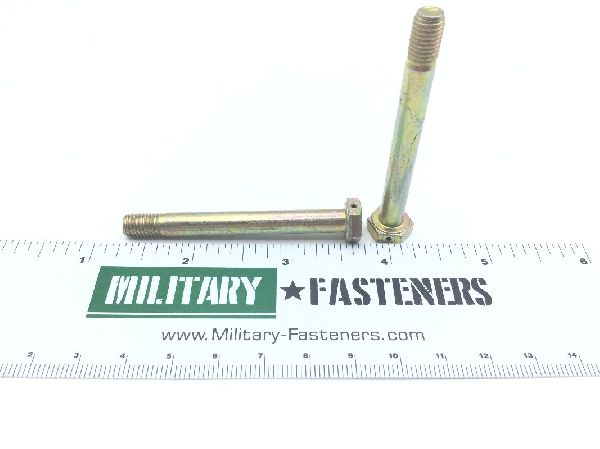

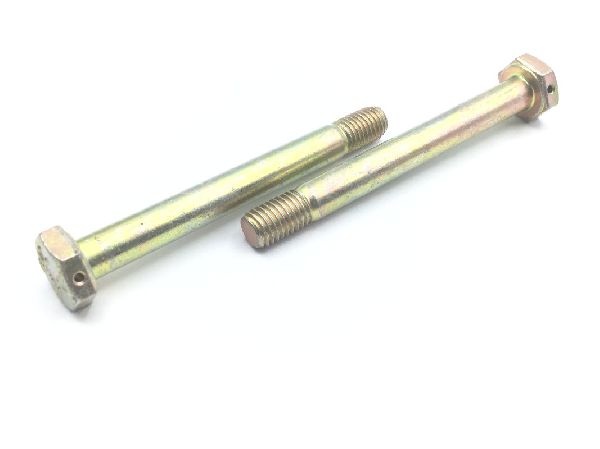

AN174H22A Close Tolerance Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Hexagon

Material

Steel comp 4140 or steel comp 8740 or steel comp 8630 or steel comp 8735 or steel comp 4130 or steel comp 4037

Surface Treatment

Cl 3 federal specification all treatment responses type 2 qq-p-416

Thread Class

Fastener Length: 2.281 inches
Grip Diameter: Between 0.2487 inches and 0.2492 inches
Grip Length: 1.812 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.140 inches and 0.172 inches
Hole Configuration Style: Hexagon flats
Hole Quantity: 1
Hole Type: Drilled
Min. Tensile Strength (psi): 125000 pounds per square inch
Surface Finish: 63.0 microinches grip
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 0.469 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.428 inches and 0.440 inches
Hole Diameter: 0.046 inches
