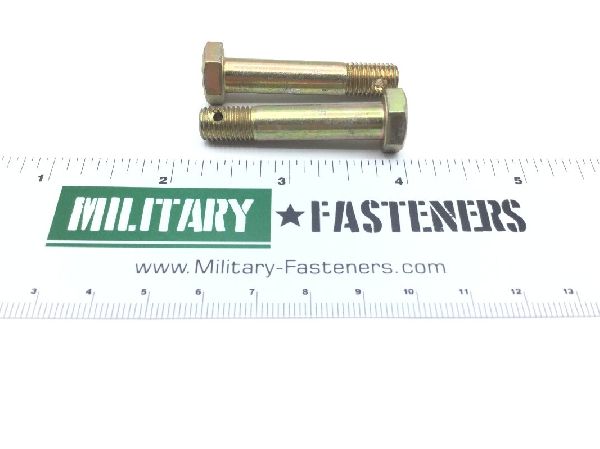

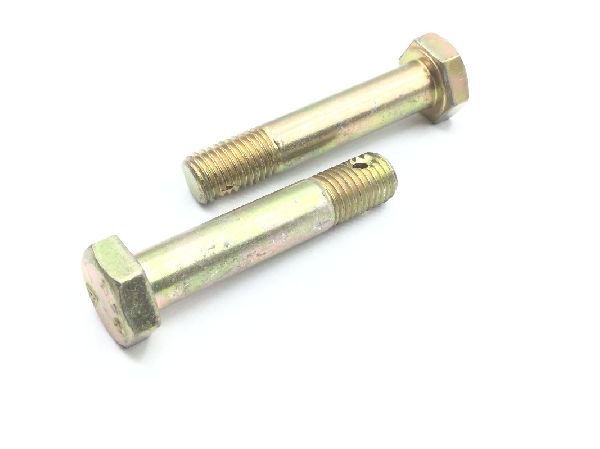

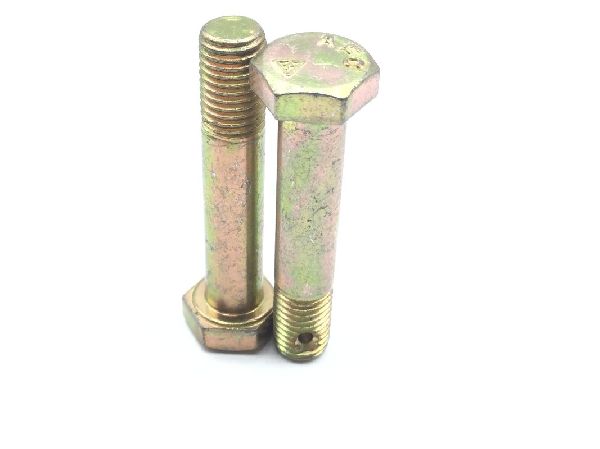

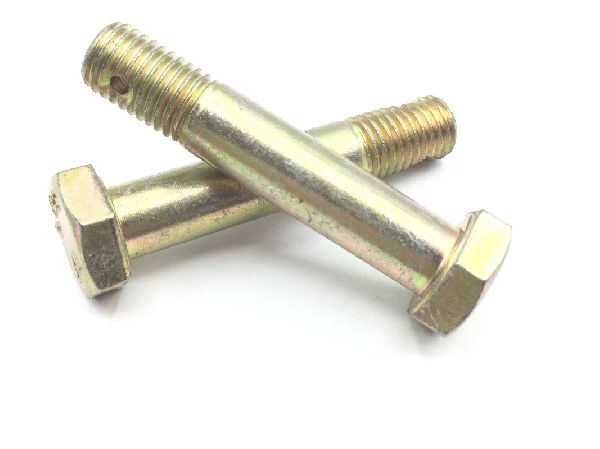

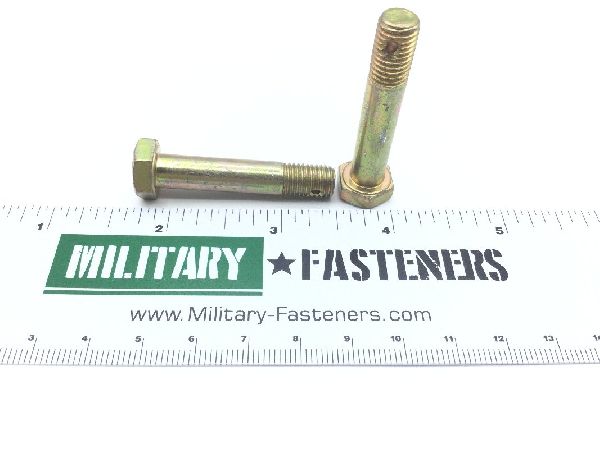

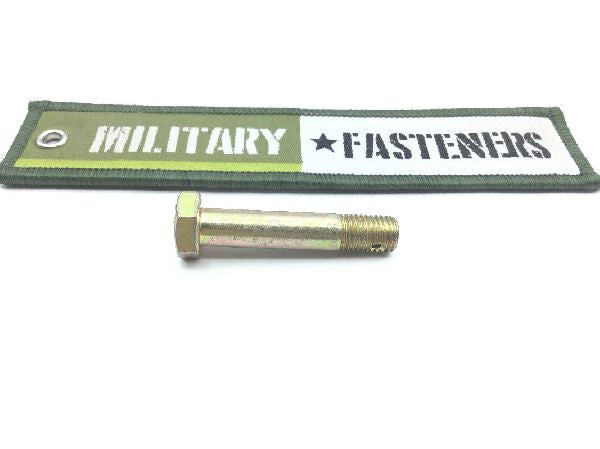

AN175-14 Close Tolerance Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $5.54

Units per Pack 10

Price per Pack $55.40

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $55.40

Add item to quote

Head Style

Hexagon

Material

Steel comp

Surface Treatment

Qq-p-416 type 2 class 3 federal specification all treatment responses

Thread Class

Distance From Head Largest Bearing Surface To Shank Hole Center: 1.421 inches first hole
Fastener Length: Between 1.579 inches and 1.625 inches
Grip Diameter: Between 0.3112 inches and 0.3117 inches
Grip Length: 1.062 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.172 inches and 0.204 inches
Min. Tensile Strength (psi): 125000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.076 inches first hole
Surface Finish: 63.0 microinches grip
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: Between 0.500 inches and 0.579 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.490 inches and 0.502 inches
