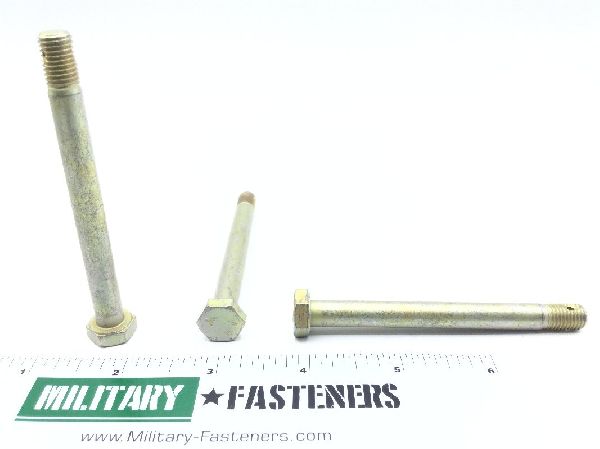

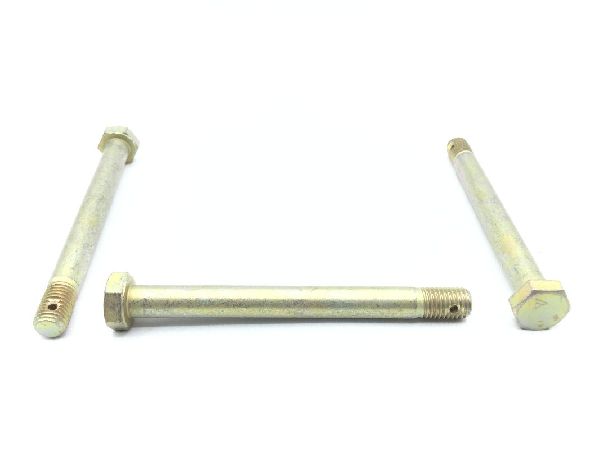

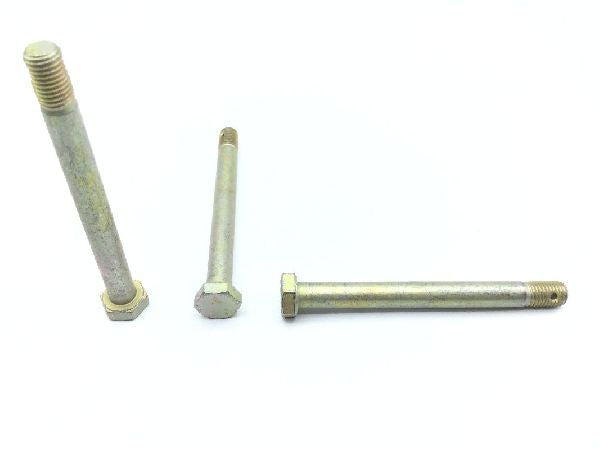

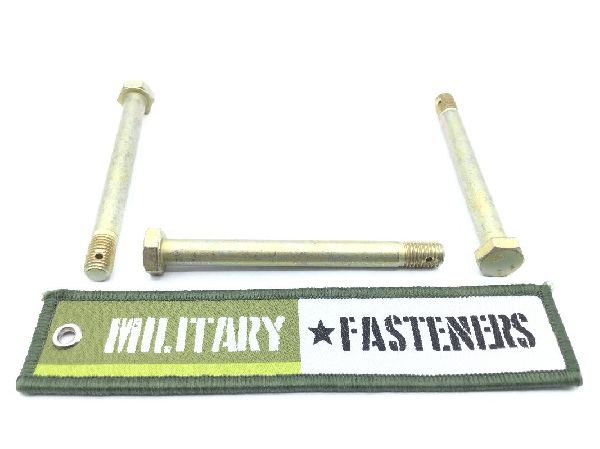

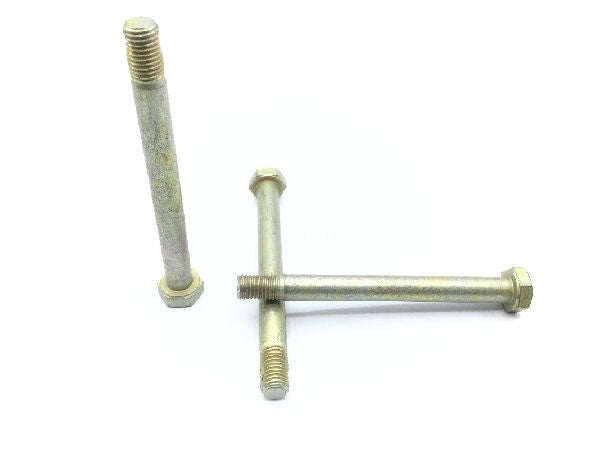

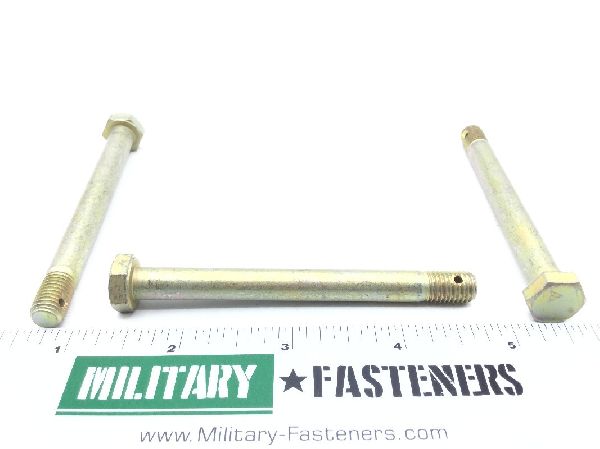

AN175-31 Close Tolerance Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $11.01

Units per Pack 5

Price per Pack $55.05

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $55.05

Add item to quote

Head Style

Hexagon

Material

Steel comp

Surface Treatment

Qq-p-416 type 2 class 3 federal specification all treatment responses fastener

Thread Class

Distance From Head Largest Bearing Surface To Shank Hole Center: 3.047 inches first hole
Fastener Length: 3.219 inches
Grip Diameter: Between 0.3112 inches and 0.3117 inches
Grip Length: 2.688 inches
Hardness Rating: 26 rockwell c and 32 rockwell c
Head Height: Between 0.172 inches and 0.204 inches
Min. Tensile Strength (psi): 125000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.076 inches first hole
Surface Finish: 63.0 microinches surface of head
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: 0.531 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.490 inches and 0.502 inches
