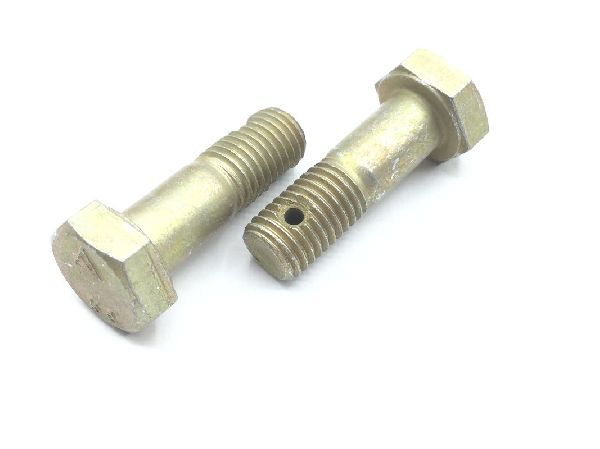

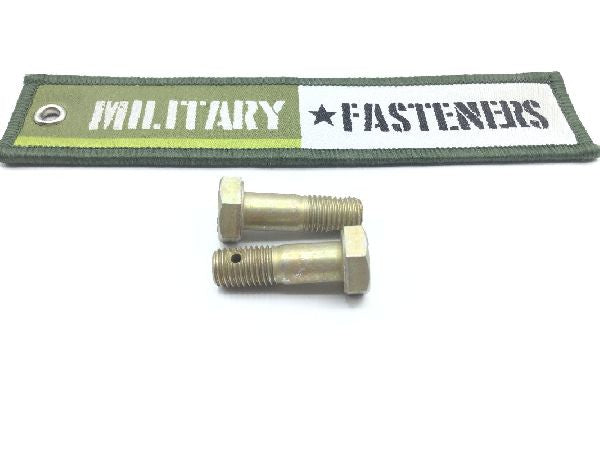

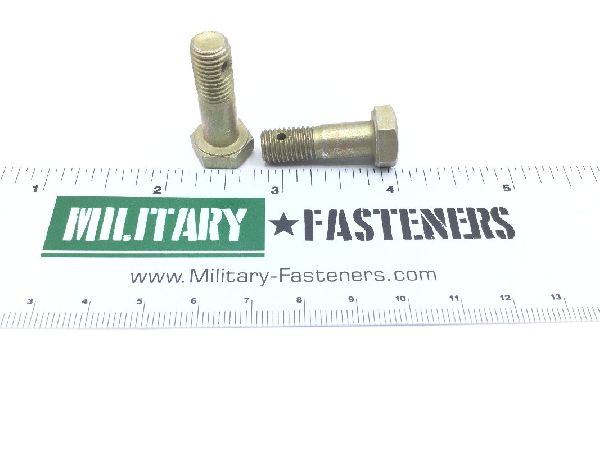

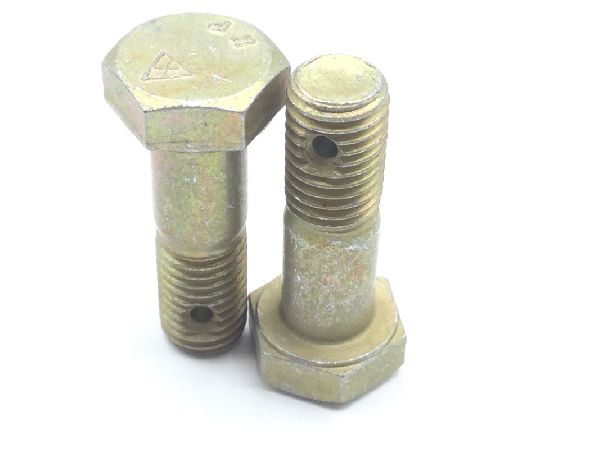

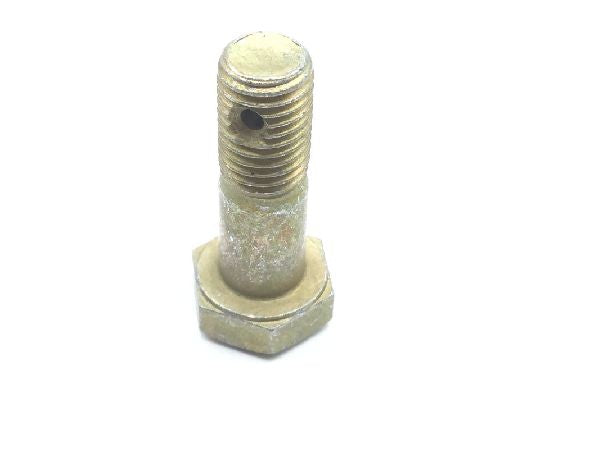

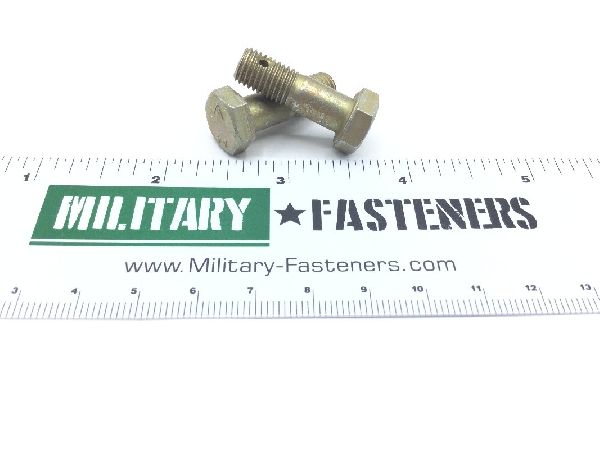

AN175-7 Close Tolerance Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $16.56

Units per Pack 5

Price per Pack $82.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $82.80

Add item to quote

Head Style

Hexagon

Material

Steel comp 4140 or steel comp 8740 or steel comp 8630 or steel comp 8735 or steel comp 4130 or steel comp 4037

Surface Treatment

Qq-p-416 type 2 class 3 federal specification all treatment responses

Thread Class

Distance From Head Largest Bearing Surface To Shank Hole Center: 0.359 inches first hole
Fastener Length: 0.969 inches
Grip Diameter: Between 0.3112 inches and 0.3117 inches
Grip Length: 0.438 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.172 inches and 0.204 inches
Min. Tensile Strength (psi): 125000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.076 inches first hole
Surface Finish: 63.0 microinches grip
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: 0.531 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.490 inches and 0.502 inches
