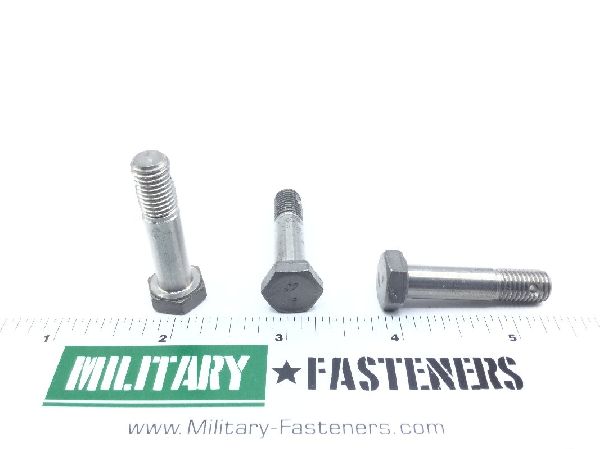

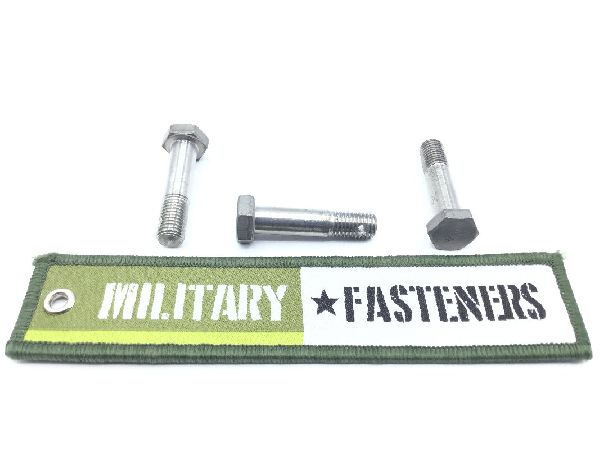

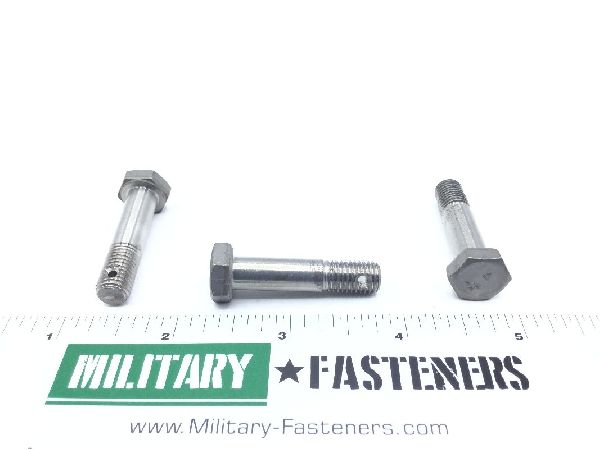

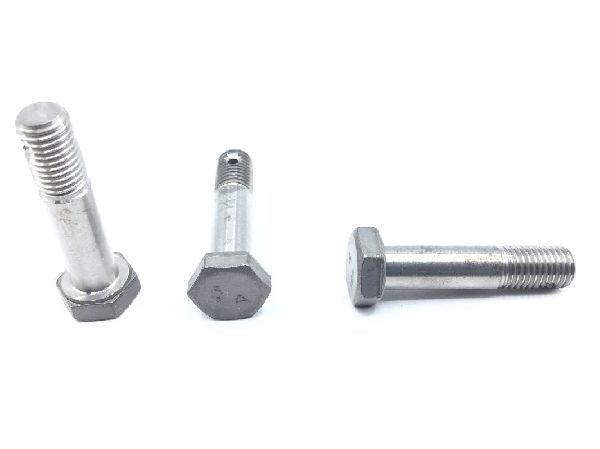

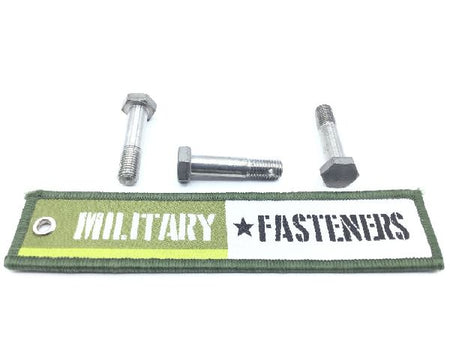

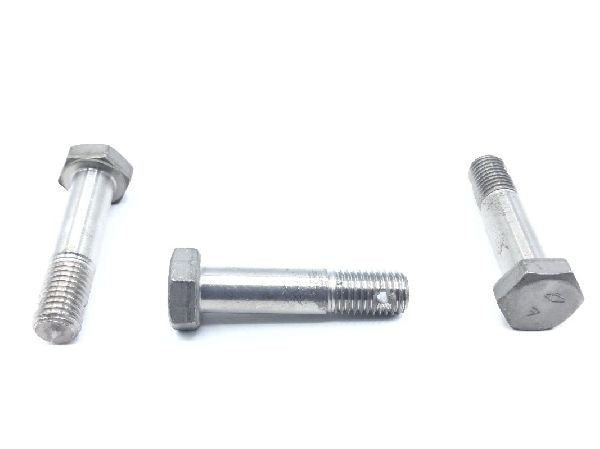

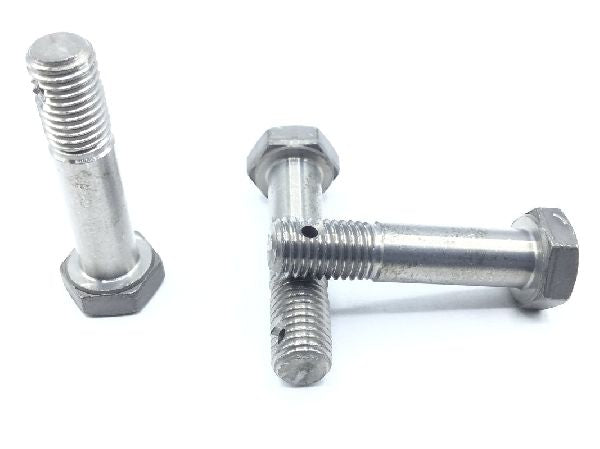

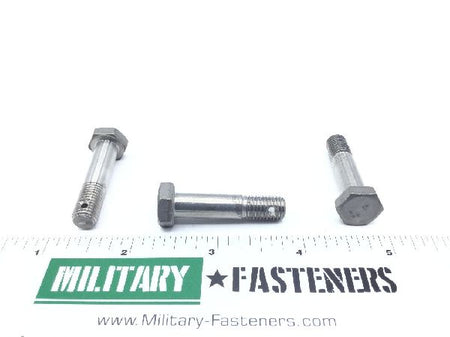

AN175C12 Close Tolerance Bolt
- Product Series
- AN
- ECCN
- 9A991
- Schedule
- 7318.15.8085
Unit of Measure:
EA
Add to Quote
We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.
Add to QuoteCouldn't load pickup availability
- Fastener Length
- Between 1.326 inches and 1.356 inches
- Grip Diameter
- Between 0.3112 inches and 0.3117 inches
- Grip Length
- Between 0.797 inches and 0.827 inches
- Head Height
- Between 0.172 inches and 0.204 inches
- Specification Data
- 88044-an175 government standard
- Thread Diameter
- 0.312 inches
- Thread Direction
- Right-hand
- Thread Length
- 0.529 inches
- Thread Qty Per Inch (tpi)
- 24
- Thread Series Designator
- Unf (fine thread)
- Width Between Flats
- 0.58 inches
