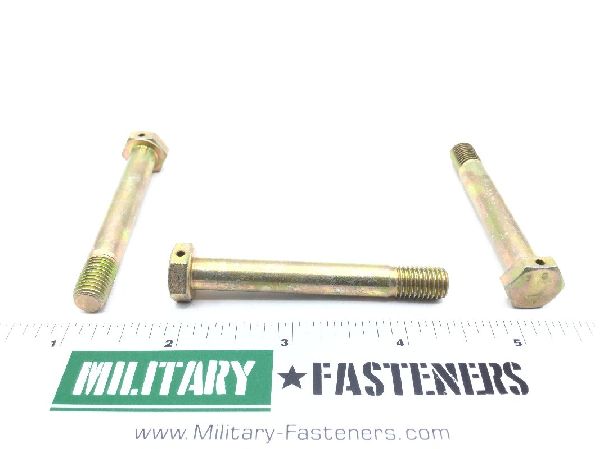

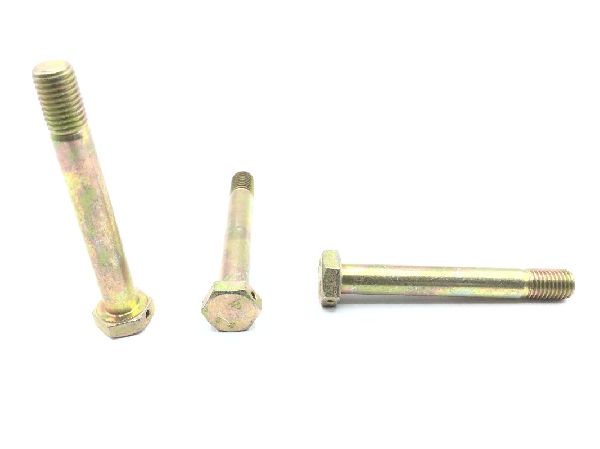

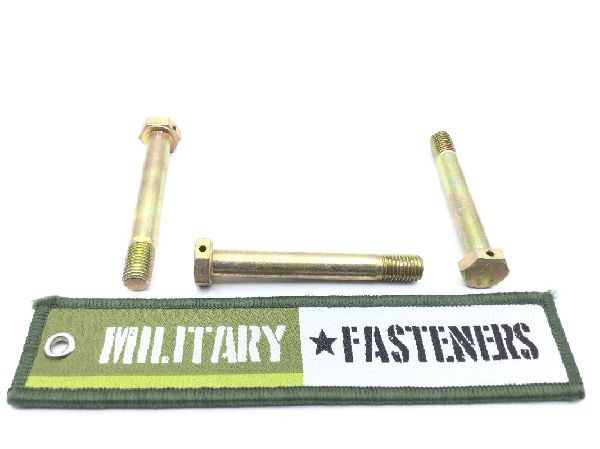

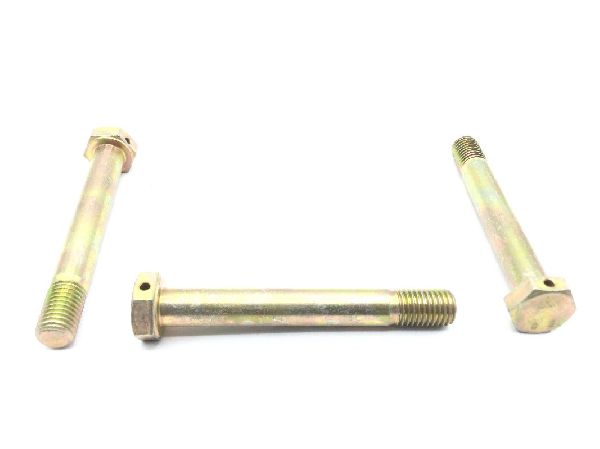

AN175H22A Close Tolerance Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $6.56

Units per Pack 5

Price per Pack $32.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $32.80

Add item to quote

Head Style

Hexagon

Material

Steel comp

Surface Treatment

Class 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Fastener Length: 2.344 inches
Grip Diameter: Between 0.3112 inches and 0.3117 inches
Grip Length: 1.812 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.172 inches and 0.204 inches
Hole Configuration Style: Hexagon longitudinal hole
Hole Quantity: 1
Hole Type: Drilled
Min. Tensile Strength (psi): 125000 pounds per square inch
Surface Finish: 63.0 microinches surface of head
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: 0.532 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.490 inches and 0.502 inches
Hole Diameter: 0.070 inches
