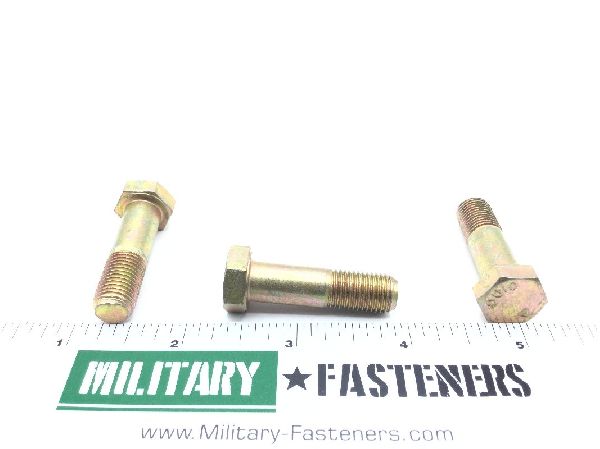

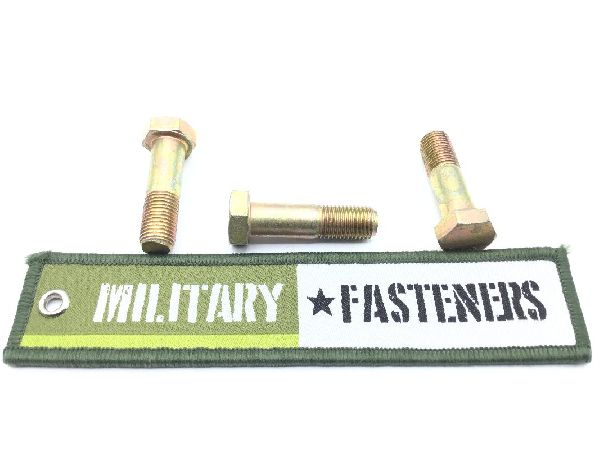

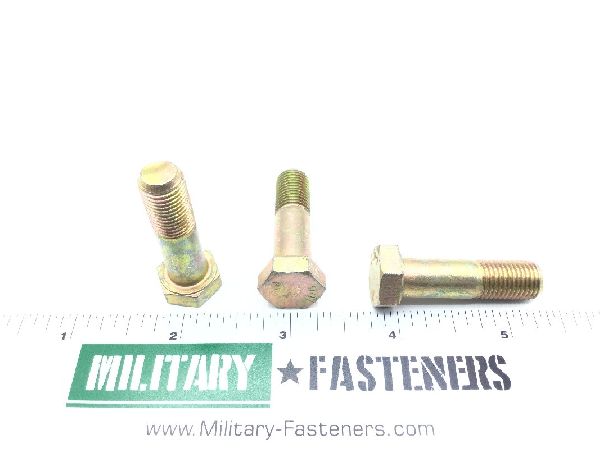

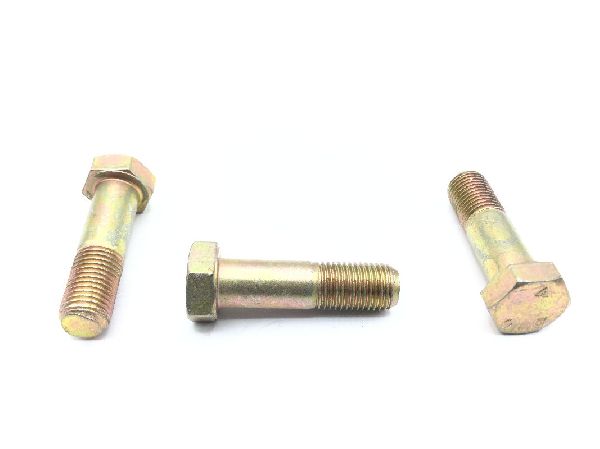

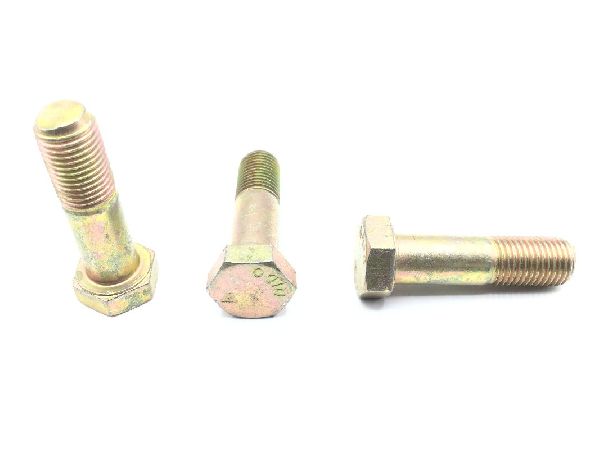

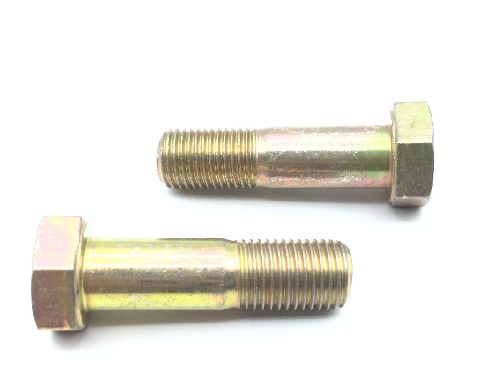

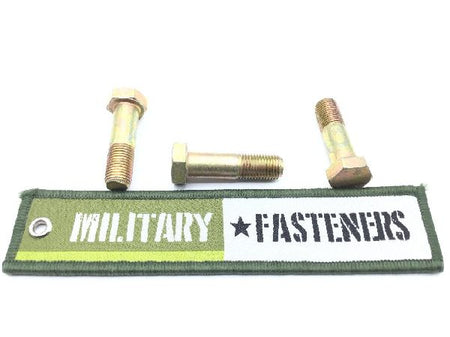

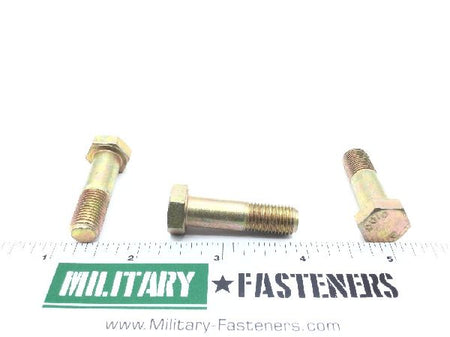

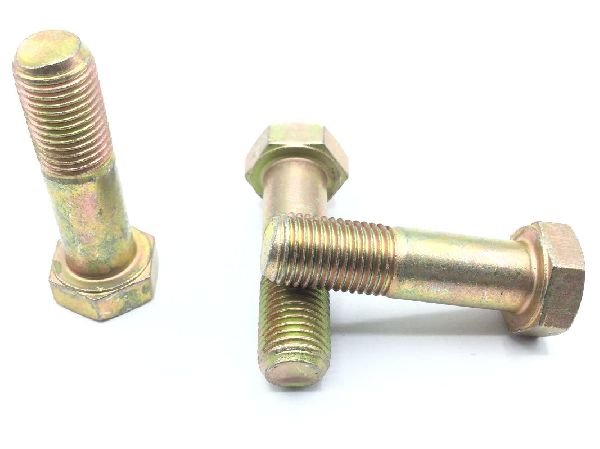

AN176-12A Close Tolerance Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $6.04

Units per Pack 10

Price per Pack $60.40

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $60.40

Add item to quote

Head Style

Hexagon

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Fastener Length: Between 1.312 inches and 1.359 inches
Grip Diameter: Between 0.3737 inches and 0.3742 inches
Grip Length: Between 0.672 inches and 0.703 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.203 inches and 0.235 inches
Min. Tensile Strength (psi): 125000 pounds per square inch
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: Between 0.609 inches and 1.359 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.553 inches and 0.565 inches
