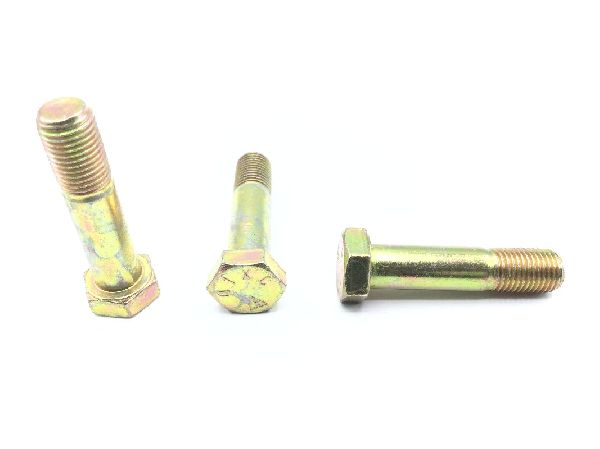

AN176-14A Close Tolerance Bolt

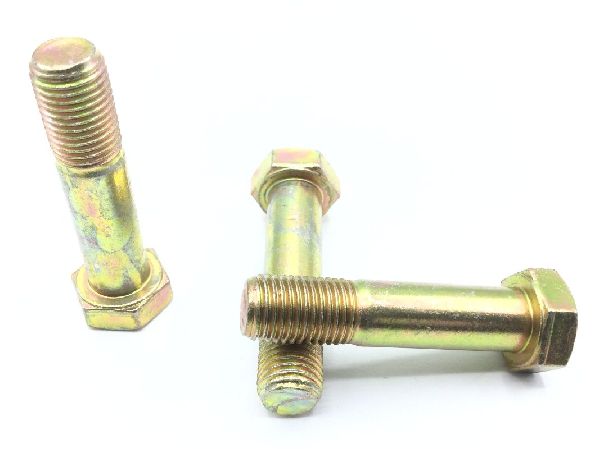

AN176-14A Close Tolerance Bolt (2)

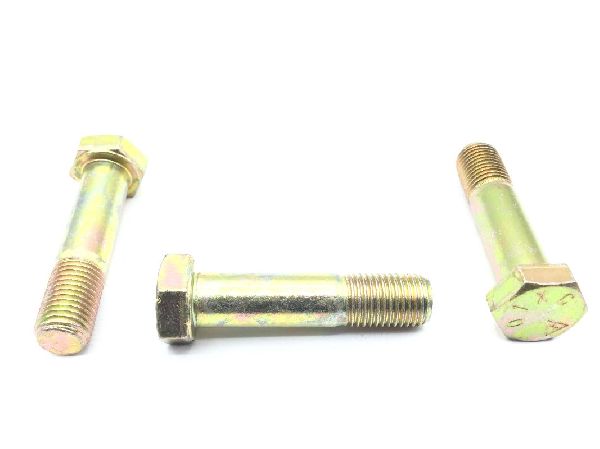

AN176-14A Close Tolerance Bolt (3)

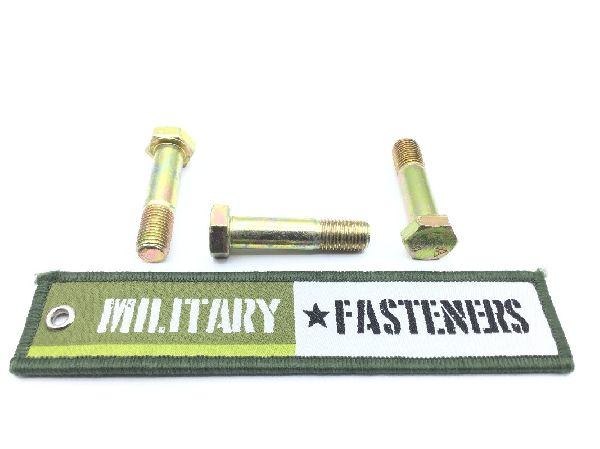

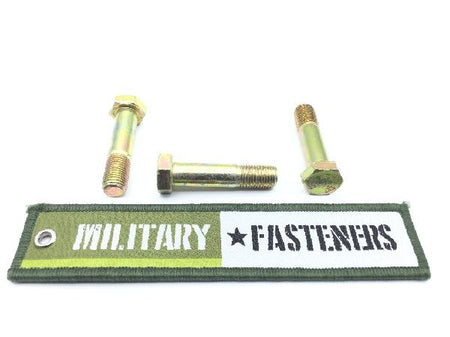

AN176-14A Close Tolerance Bolt (4)

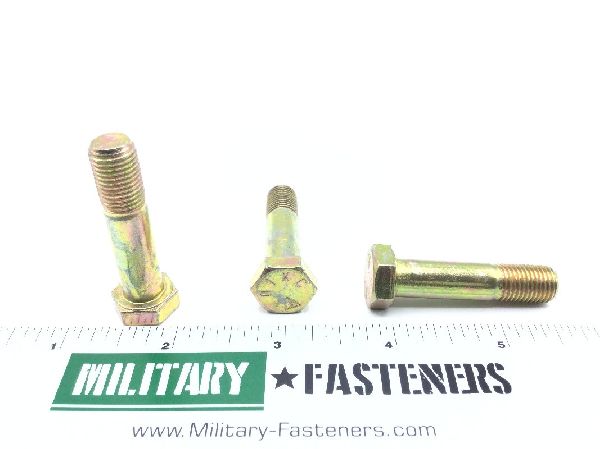

AN176-14A Close Tolerance Bolt (5)

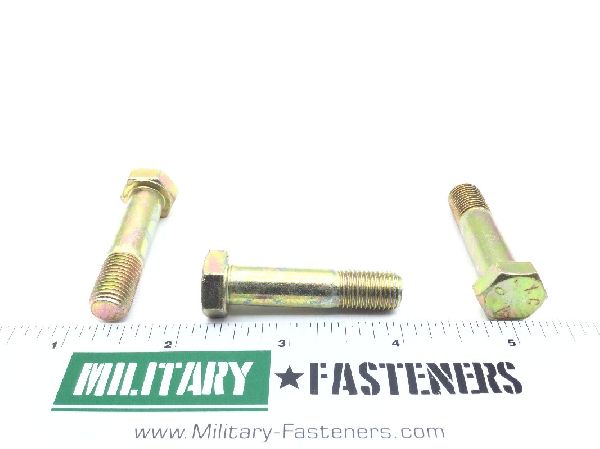

AN176-14A Close Tolerance Bolt (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN176-14A Close Tolerance Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $3.94

Units per Pack 10

Price per Pack $39.40

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $39.40

Add item to quote

Head Style

Hexagon

Material

Steel comp

Surface Treatment

Qq-p-416 type 2 class 3 federal specification single treatment response

Thread Class

3a

Fastener Length: 1.578 inches
Grip Diameter: Between 0.3737 inches and 0.3742 inches
Grip Length: 0.938 inches
Hardness Rating: 26 rockwell c and 32 rockwell c
Head Height: Between 0.203 inches and 0.235 inches
Min. Tensile Strength (psi): 125000 pounds per square inch
Surface Finish: 63 microinches grip
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.553 inches and 0.565 inches
