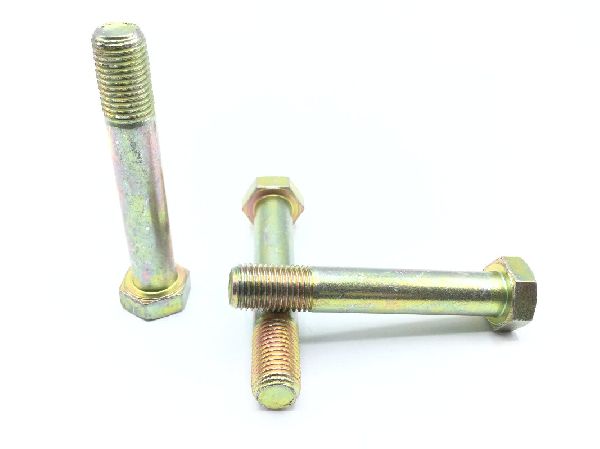

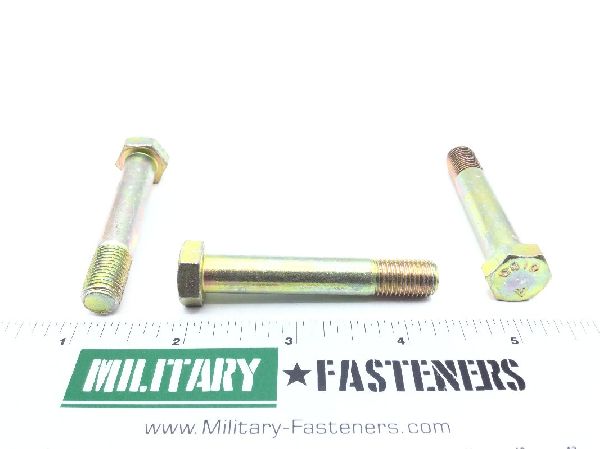

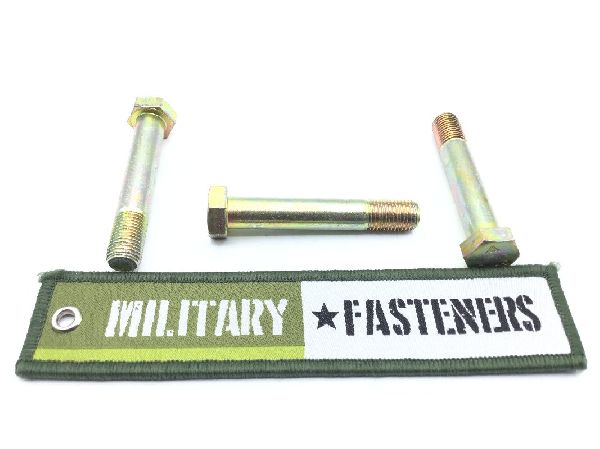

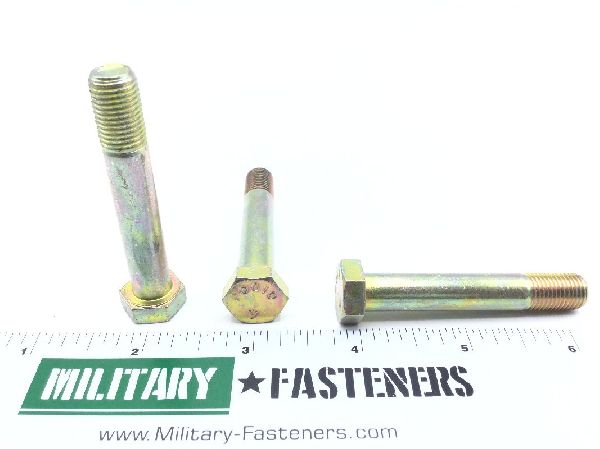

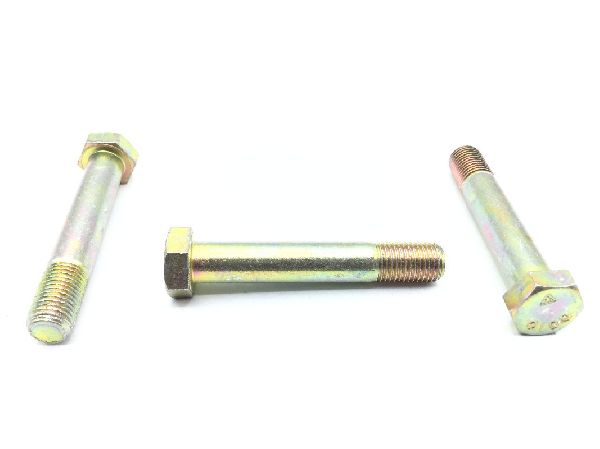

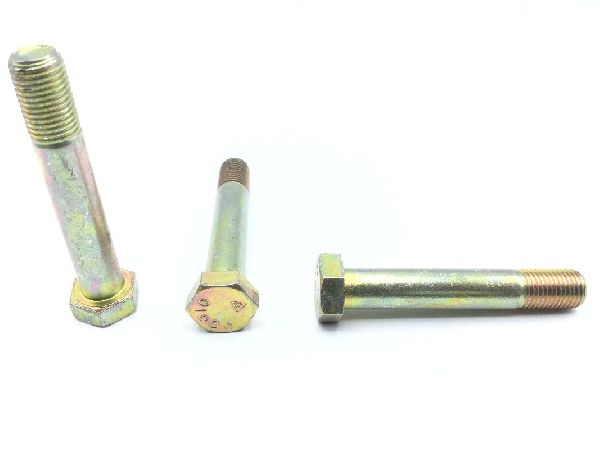

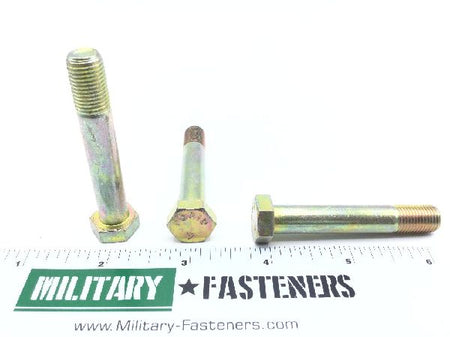

AN176-21A Close Tolerance Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $4.45

Units per Pack 10

Price per Pack $44.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $44.50

Add item to quote

Head Style

Hexagon

Material

Steel

Surface Treatment

Qq-p-416 type 2 cl 3 federal specification single treatment response

Thread Class

Fastener Length: Between 2.187 inches and 2.234 inches
Grip Diameter: Between 0.3737 inches and 0.3742 inches
Grip Length: Between 1.546 inches and 1.578 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.203 inches and 0.235 inches
Min. Tensile Strength (psi): 125000 pounds per square inch
Surface Finish: 63.0 microinches grip
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: Between 0.609 inches and 0.688 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.553 inches and 0.565 inches
