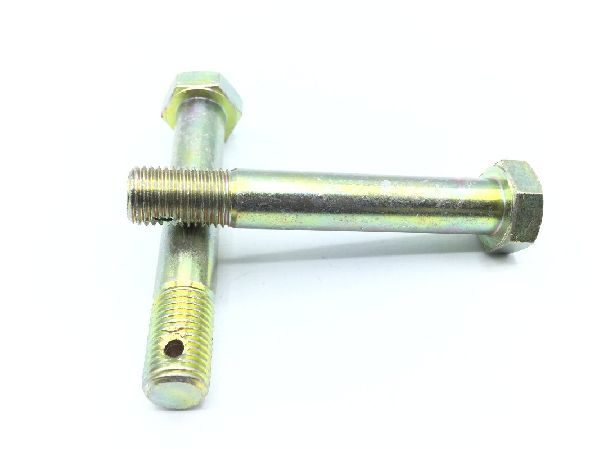

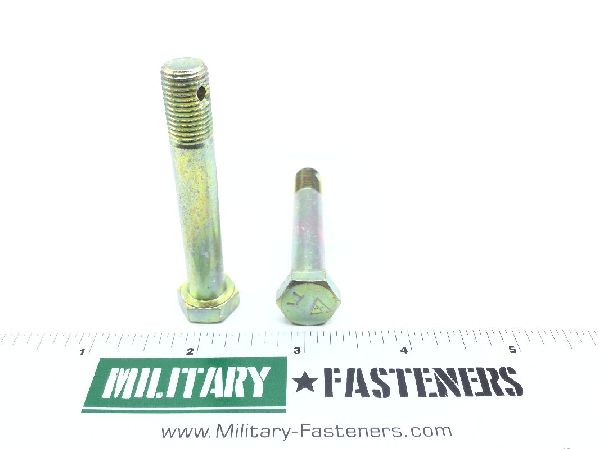

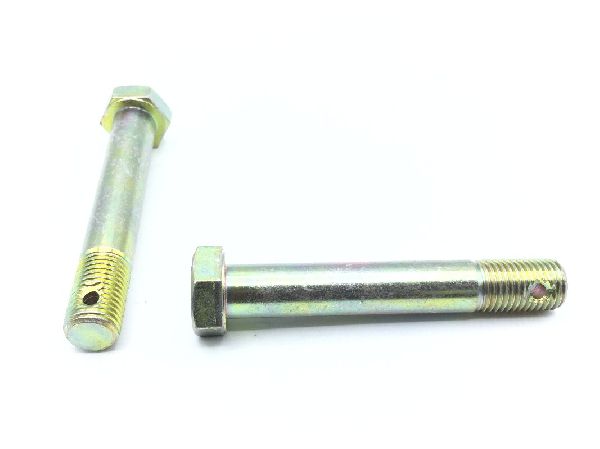

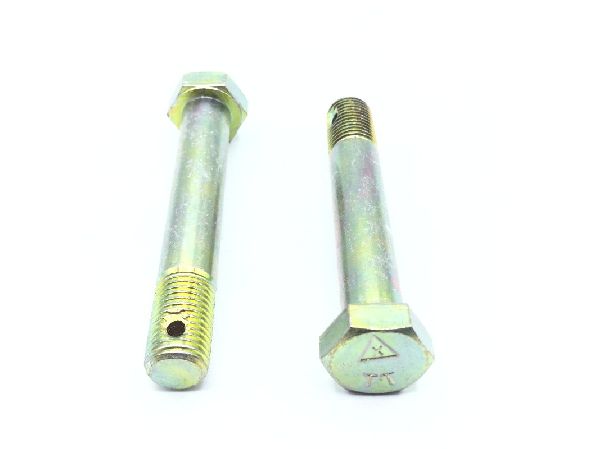

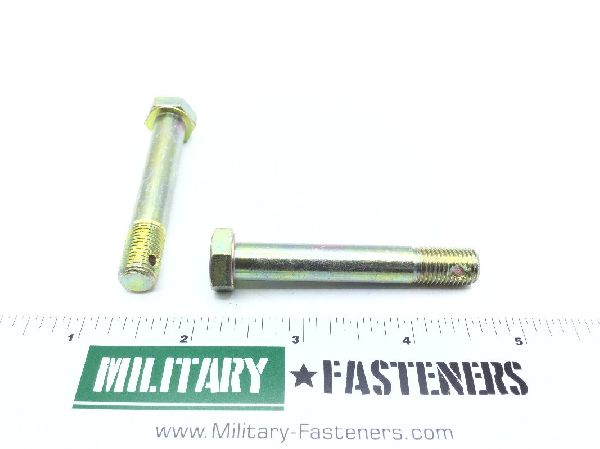

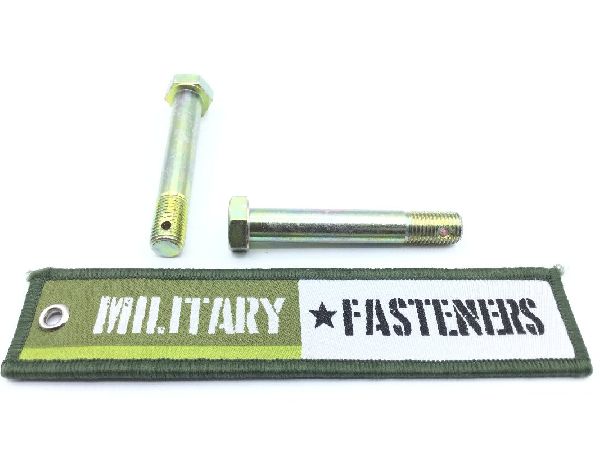

AN176-22 Close Tolerance Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $55.37

Units per Pack 2

Price per Pack $110.74

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $110.74

Add item to quote

Head Style

Hexagon

Material

Steel

Thread Class

Thread Quantity Per Inch (tpi)

Distance From Head Largest Bearing Surface To Shank Hole Center: 2.124 inches first hole
Fastener Length: 2.328 inches
Grip Diameter: Between 0.3742 inches and 0.3787 inches
Grip Length: 1.687 inches
Head Height: Between 0.203 inches and 0.235 inches
Shank Unthreaded Hole Diameter: 0.106 inches first hole and 0.116 inches first hole
Surface Finish: 63.0 microinches grip
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: 1.641 inches
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.553 inches and 0.565 inches
