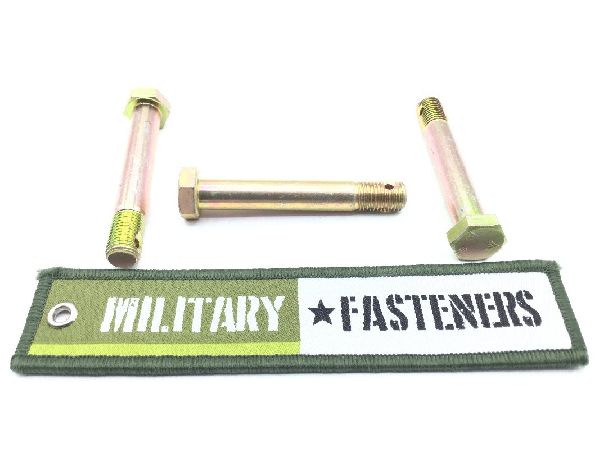

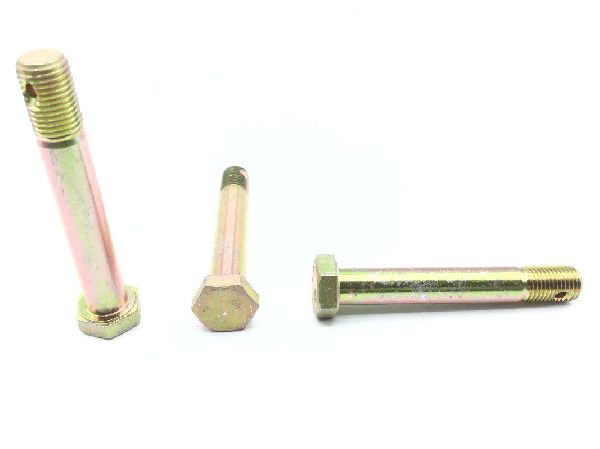

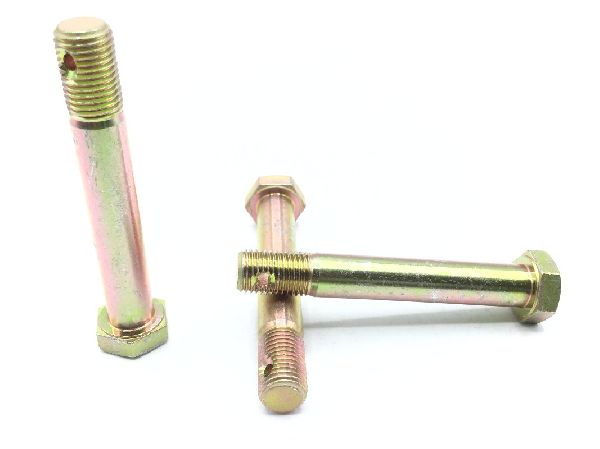

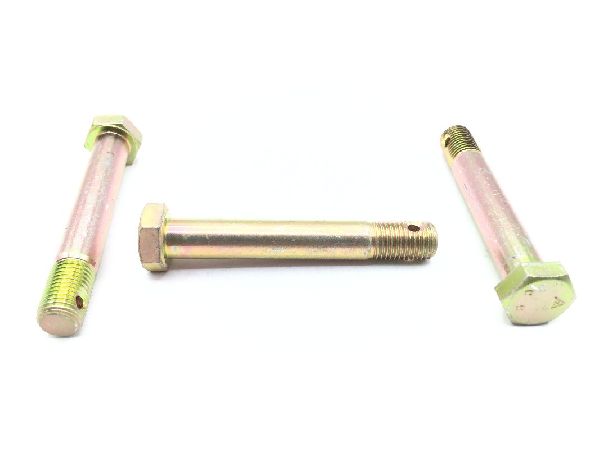

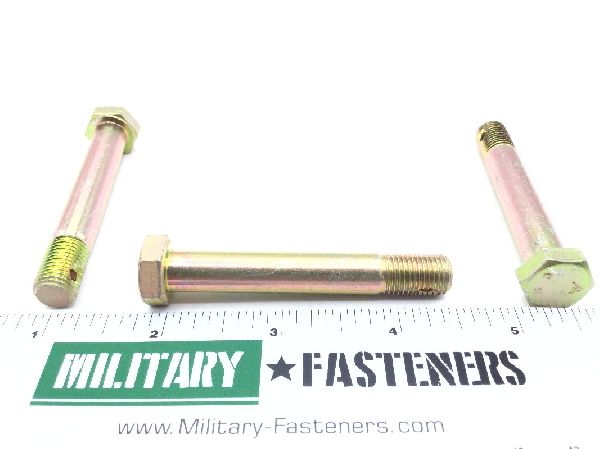

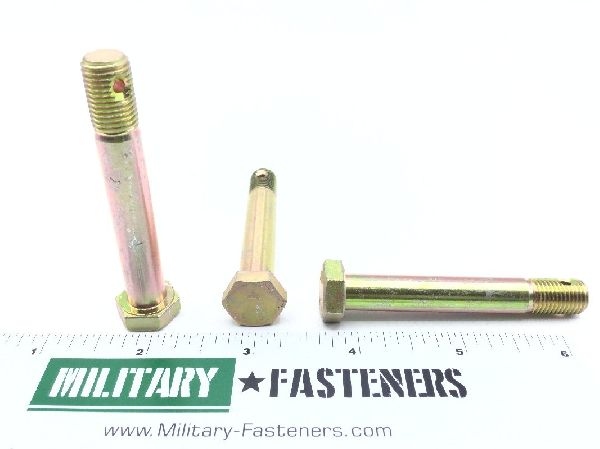

AN176-23 Close Tolerance Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $11.01

Units per Pack 5

Price per Pack $55.05

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $55.05

Add item to quote

Head Style

Hexagon

Material

Steel comp

Surface Treatment

Qq-p-416 type 2 class 3 federal specification all treatment responses

Thread Class

Distance From Head Largest Surface To Shank Hole Center: 2.250 inches first hole
Fastener Length: 2.453 inches
Grip Diameter: Between 0.3737 inches and 0.3742 inches
Grip Length: 1.812 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.203 inches and 0.235 inches
Min. Tensile Strength (psi): 125 pounds per square inch
Shank Unthreaded Hole Diameter: 0.106 inches first hole
Surface Finish: 63.0 microinches surface of head
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: 0.641 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.553 inches and 0.565 inches
