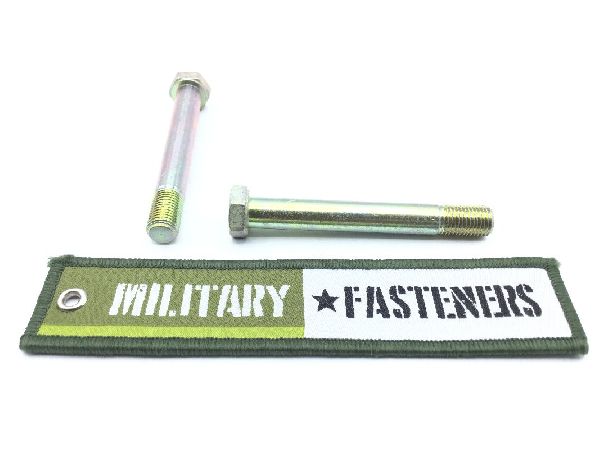

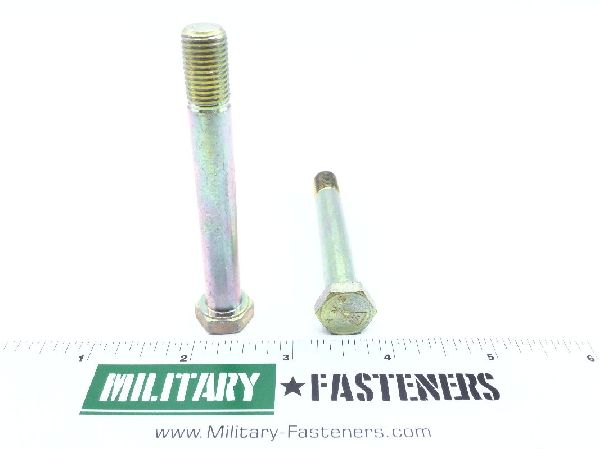

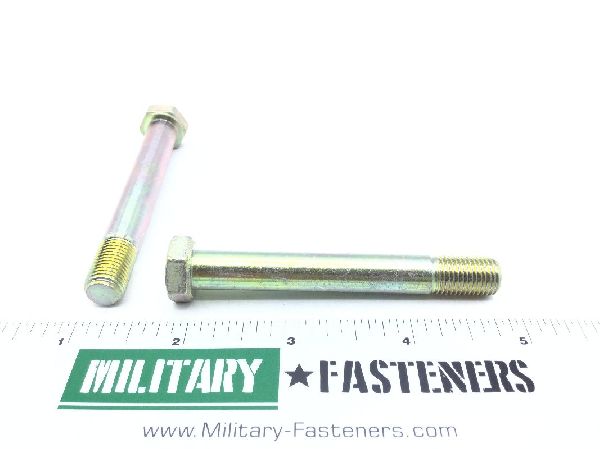

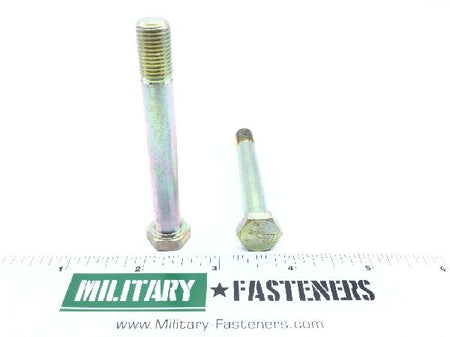

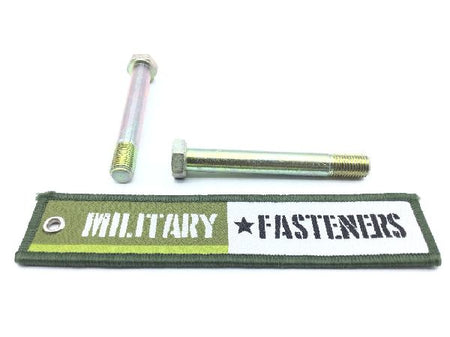

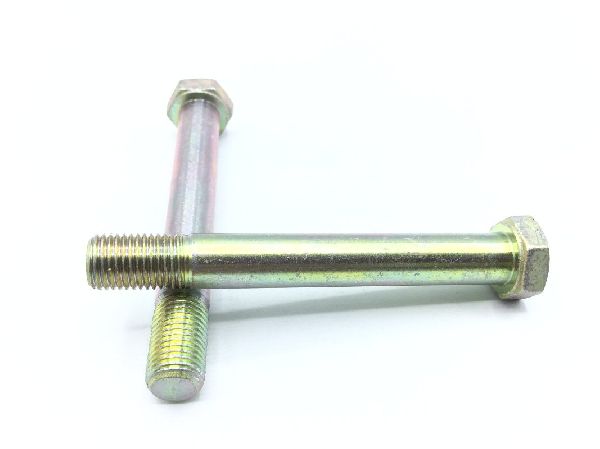

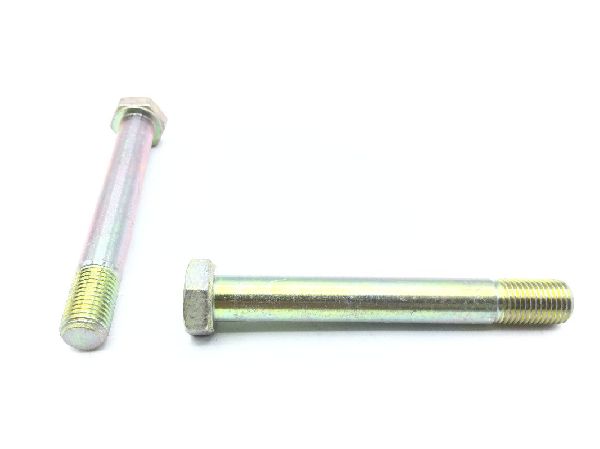

AN176-26A Close Tolerance Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $26.26

Units per Pack 2

Price per Pack $52.52

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $52.52

Add item to quote

Head Style

Hexagon

Material

Steel comp 8740 or steel comp 8630 or steel comp 8735 or steel comp 4037 or steel comp 4140 or steel comp 4130

Surface Treatment

Qq-p-416 type 2 cl 3 federal specification single treatment response

Thread Class

Fastener Length: Between 2.812 inches and 2.859 inches
Grip Diameter: Between 0.3737 inches and 0.3742 inches
Grip Length: Between 2.172 inches and 2.204 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.203 inches and 0.235 inches
Min. Tensile Strength (psi): 125000 pounds per square inch
Surface Finish: 63.0 microinches grip
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: Between 0.608 inches and 0.687 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.553 inches and 0.565 inches
