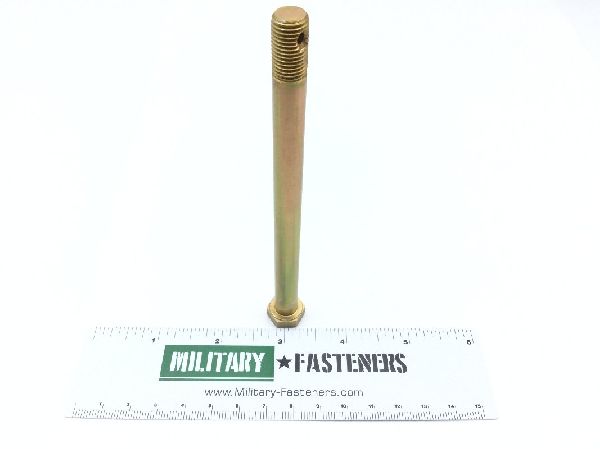

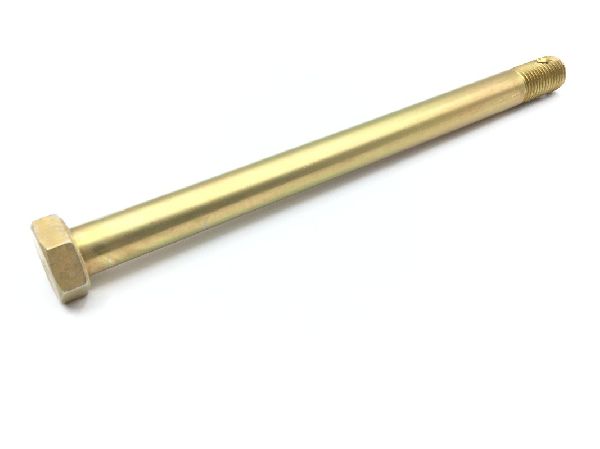

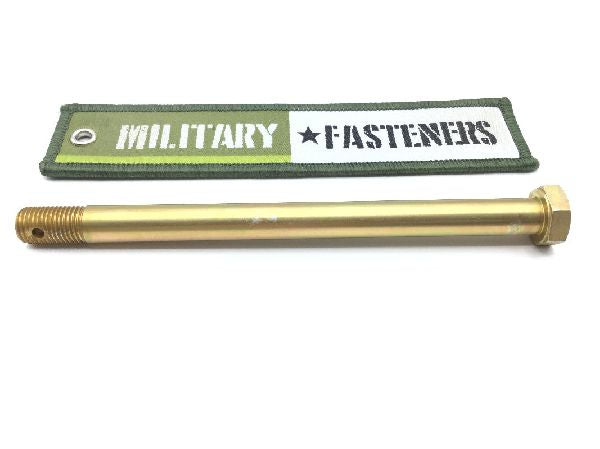

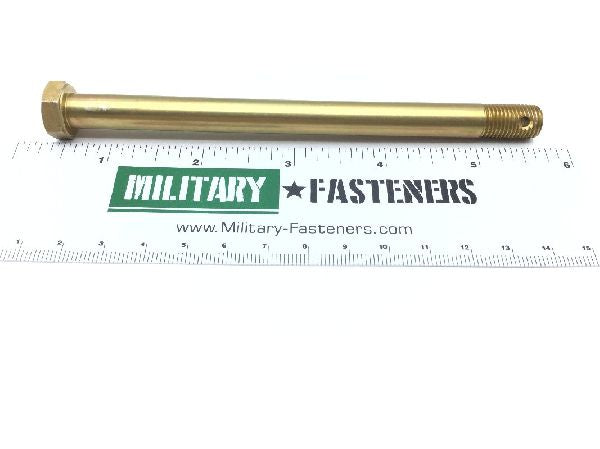

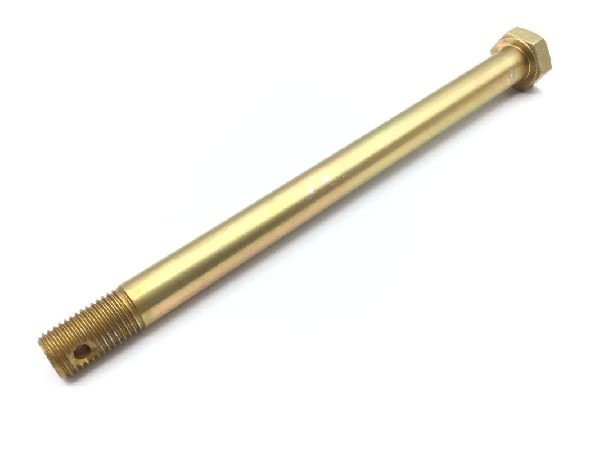

AN176-50 Close Tolerance Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $39.90

Units per Pack 2

Price per Pack $79.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $79.80

Add item to quote

Head Style

Hexagon

Material

Steel

Surface Treatment

Cl 3 federal specification all treatment responses type 2 qq-p-416

Thread Class

Distance From Head Largest Surface To Shank Hole Center: 4.876 inches first hole
Fastener Length: 5.078 in
Grip Diameter: Between 0.3737 inches and 0.3742 inches
Grip Length: 4.438 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.203 inches and 0.235 inches
Min. Tensile Strength (psi): 125000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.106 inches first hole
Surface Finish: 63.0 microinches bearing surface of head
Thread Diameter: 0.375 in
Thread Direction: Right-hand
Thread Length: 0.640 in
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.553 inches and 0.565 inches
