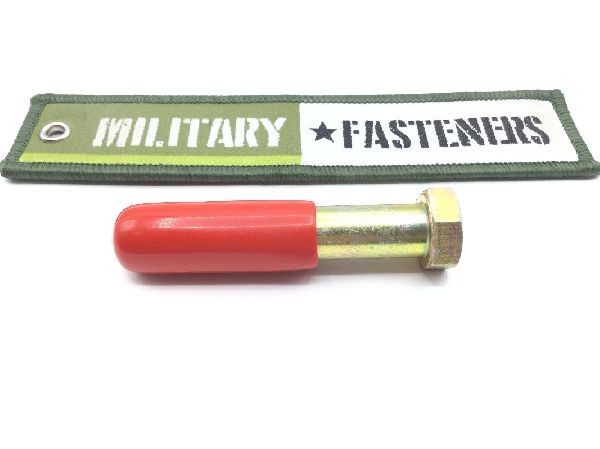

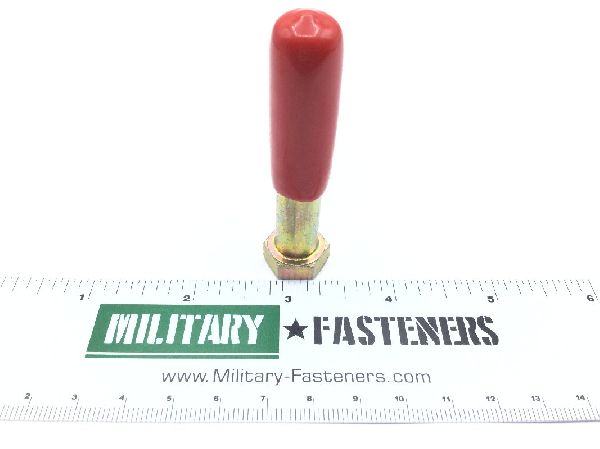

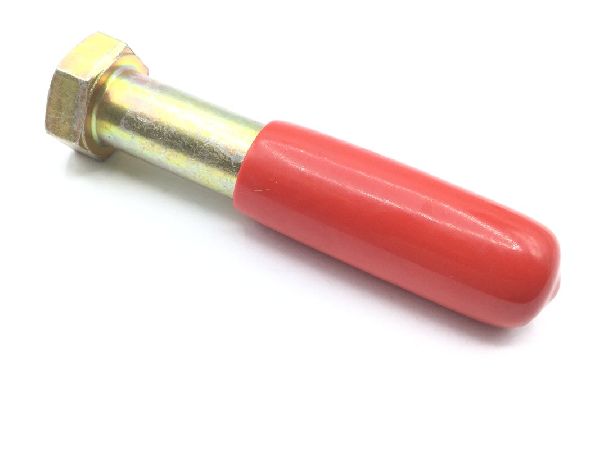

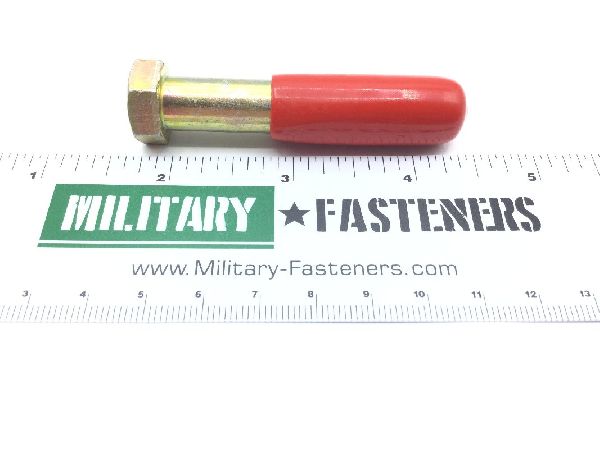

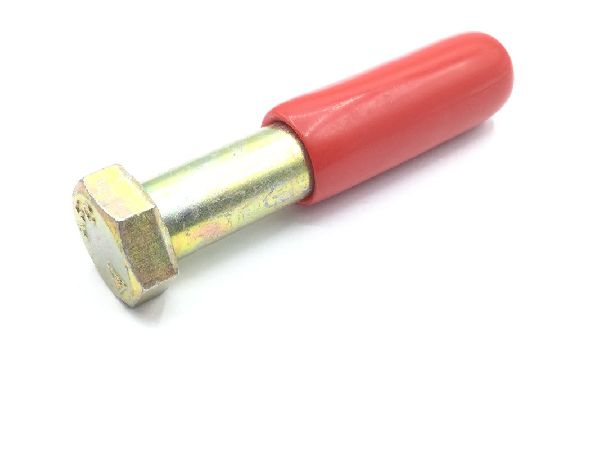

AN177-22 Close Tolerance Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $41.51

Units per Pack 1

Price per Pack $41.51

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $41.51

Add item to quote

Head Style

Hexagon

Material

Steel comp

Surface Treatment

Class 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Distance From Head Largest Bearing Surface To Shank Hole Center: 2.172 inches first hole
Fastener Length: Between 2.328 inches and 2.375 inches
Grip Diameter: Between 0.4362 inches and 0.4367 inches
Grip Length: Between 1.672 inches and 1.704 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.234 inches and 0.266 inches
Hole Configuration Style: Hexagon longitudinal hole
Hole Quantity: 1
Hole Type: Drilled
Min. Tensile Strength (psi): 125000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.106 inches first hole
Surface Finish: 63.0 microinches grip
Thread Diameter: 0.437 inches
Thread Direction: Right-hand
Thread Length: Between 0.624 inches and 0.703 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.615 inches and 0.627 inches
Hole Diameter: 0.070 inches
