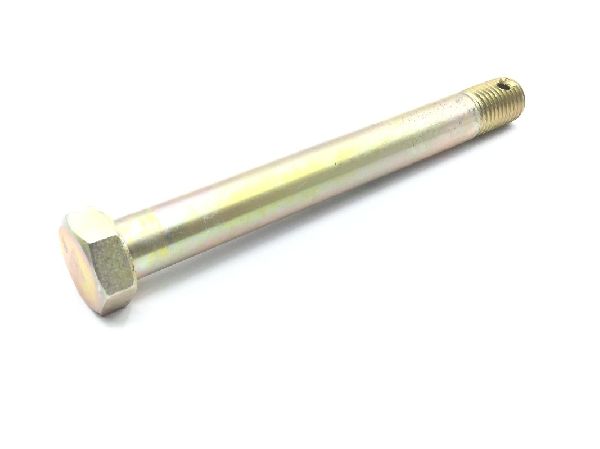

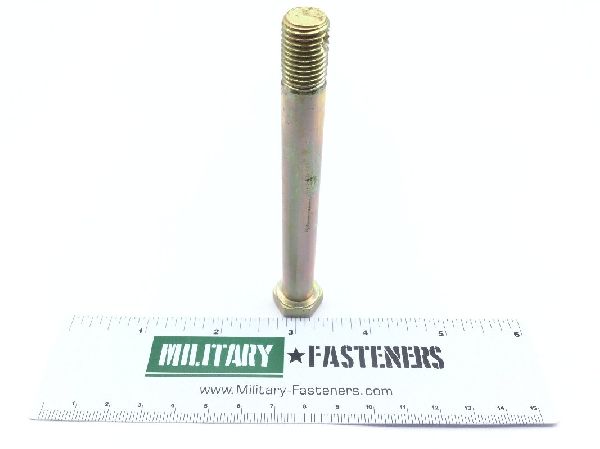

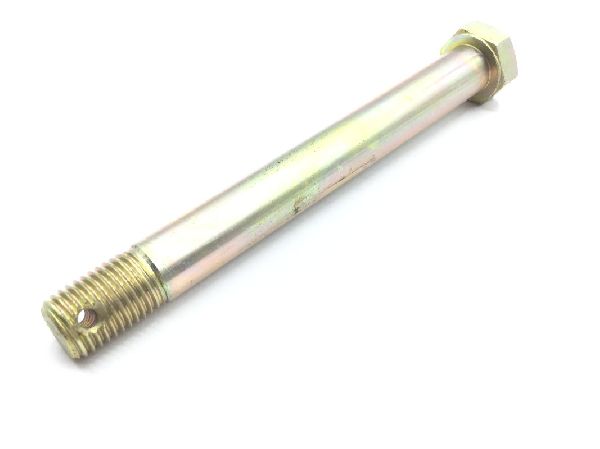

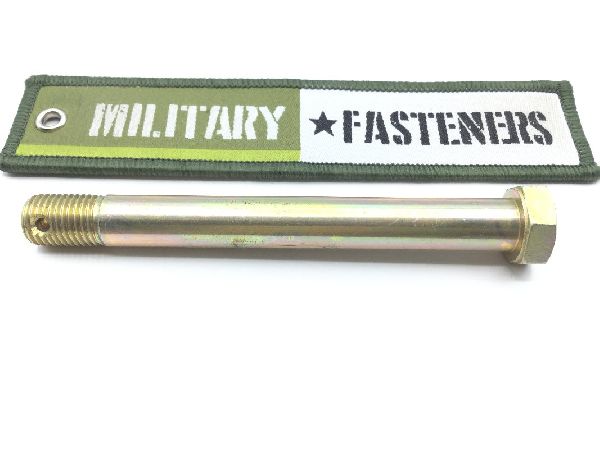

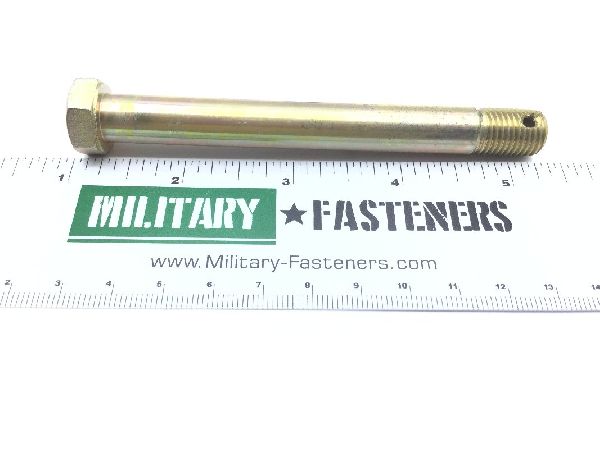

AN177-37 Close Tolerance Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Hexagon

Material

Steel comp

Surface Treatment

Qq-p-416 type 2 class 3 federal specification all treatment responses

Thread Class

Distance From Head Largest Surface To Shank Hole Center: 3.796 inches first hole
Fastener Length: 3.969 inches
Grip Diameter: Between 0.4362 inches and 0.4367 inches
Grip Length: 3.312 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.234 inches and 0.266 inches
Min. Tensile Strength (psi): 125000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.106 inches first hole
Surface Finish: 63.0 microinches grip
Thread Diameter: 0.437 inches
Thread Direction: Right-hand
Thread Length: 0.657 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.615 inches and 0.627 inches
