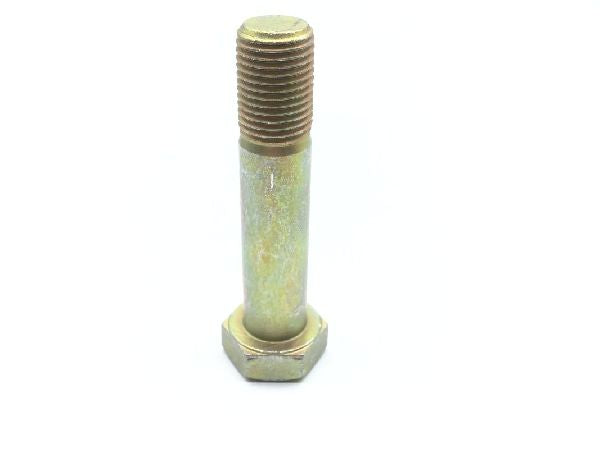

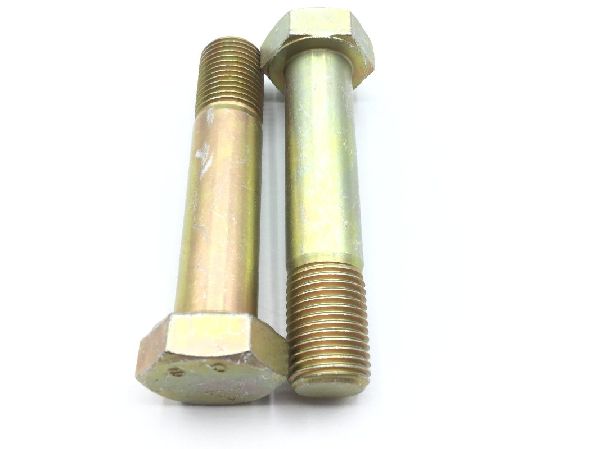

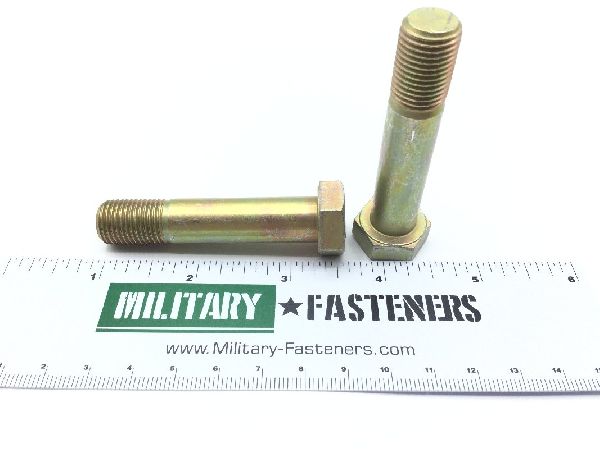

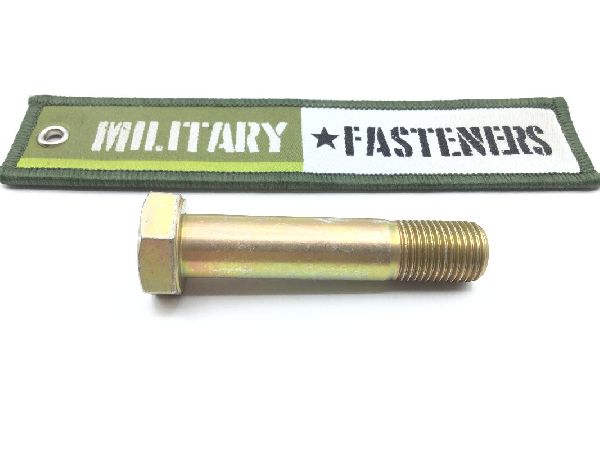

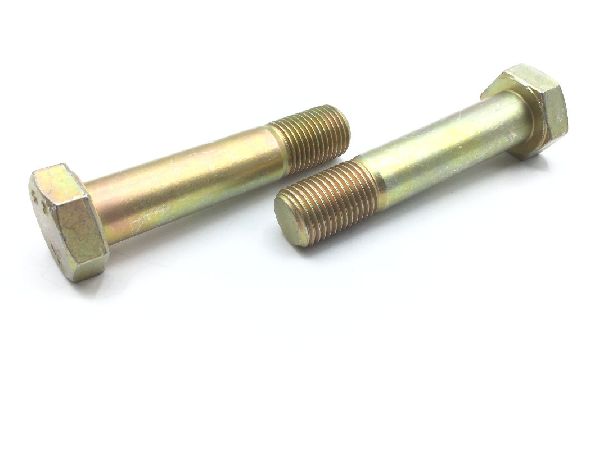

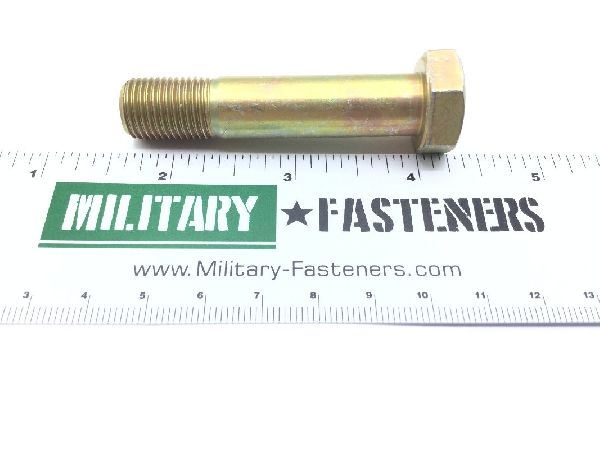

AN178-22A Close Tolerance Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $18.71

Units per Pack 2

Price per Pack $37.42

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $37.42

Add item to quote

Head Style

Hexagon

Material

Steel comp

Surface Treatment

Cl 3 federal specification all treatment responses type 2 qq-p-416

Thread Class

Fastener Length: Between 2.328 inches and 2.375 inches
Grip Diameter: Between 0.4986 inches and 0.4991 inches
Grip Length: Between 1.546 inches and 1.578 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.265 inches and 0.297 inches
Min. Tensile Strength (psi): 125000 pounds per square inch
Surface Finish: 63.0 microinches surface of head
Thread Diameter: 0.500 inches
Thread Direction: Right-hand
Thread Length: Between 0.750 inches and 0.829 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.740 inches and 0.752 inches
