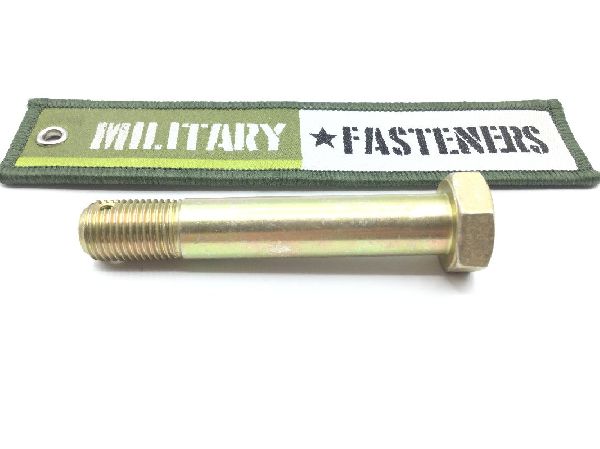

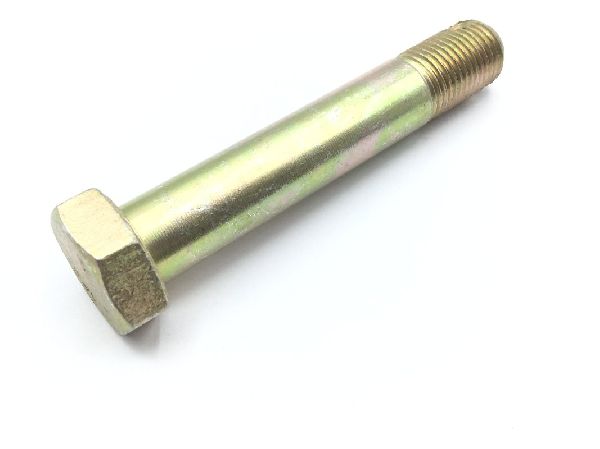

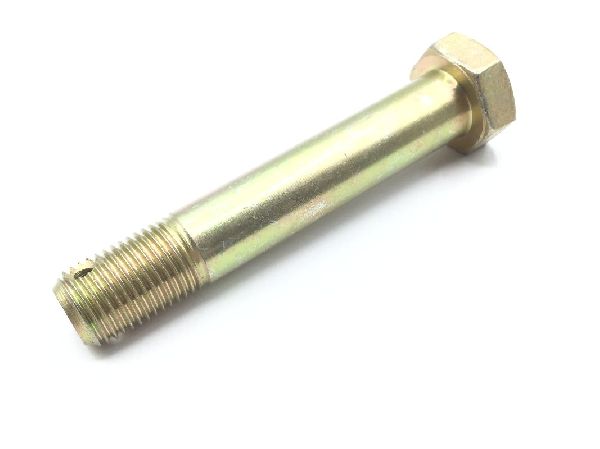

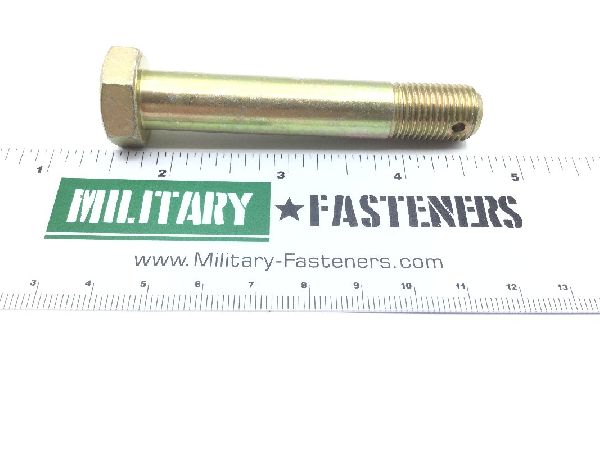

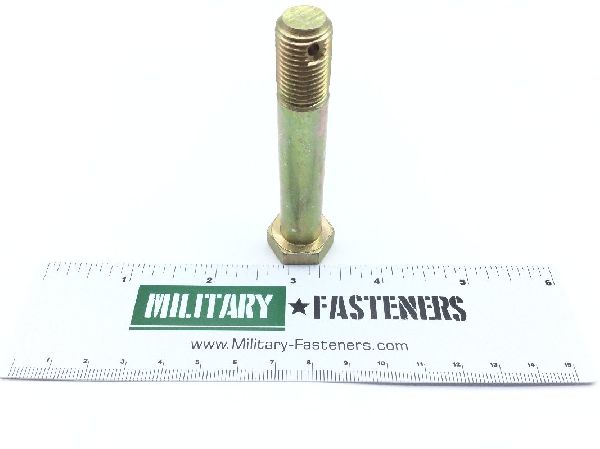

AN178-26 Close Tolerance Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $56.75

Units per Pack 1

Price per Pack $56.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $56.75

Add item to quote

Head Style

Hexagon

Material

Steel comp

Surface Treatment

Class 3 federal specification all treatment responses type 2 qq-p-416

Thread Class

Distance From Head Largest Surface To Shank Hole Center: 2.671 inches first hole
Fastener Length: 2.844 inches
Grip Diameter: Between 0.4986 inches and 0.4991 inches
Grip Length: 2.062 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.265 inches and 0.297 inches
Min. Tensile Strength (psi): 125000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.106 inches first hole
Surface Finish: 63.0 microinches surface of head
Thread Diameter: 0.500 inches
Thread Direction: Right-hand
Thread Length: 0.782 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.740 inches and 0.752 inches
