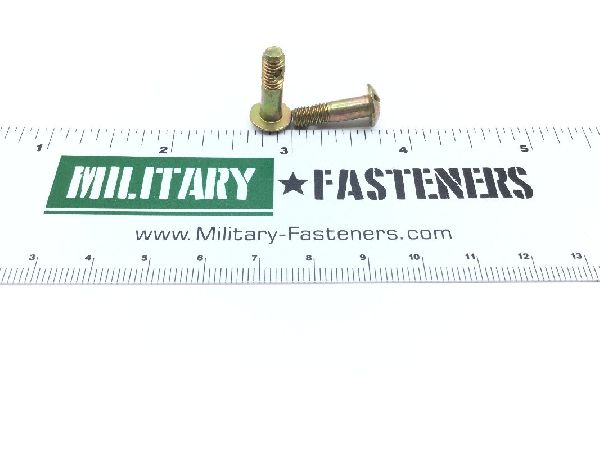

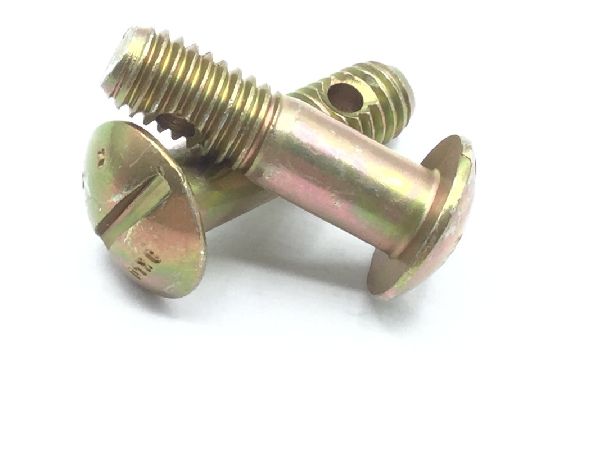

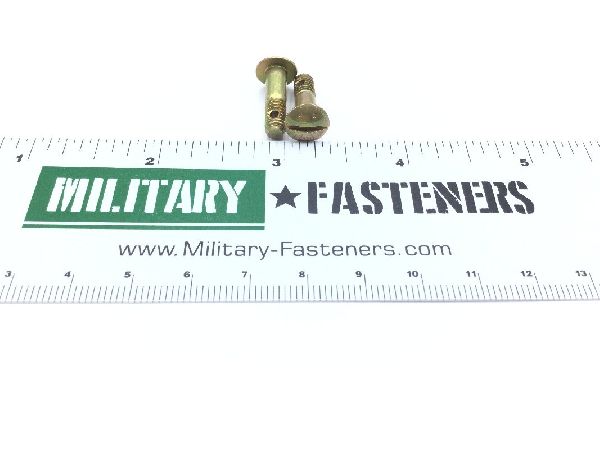

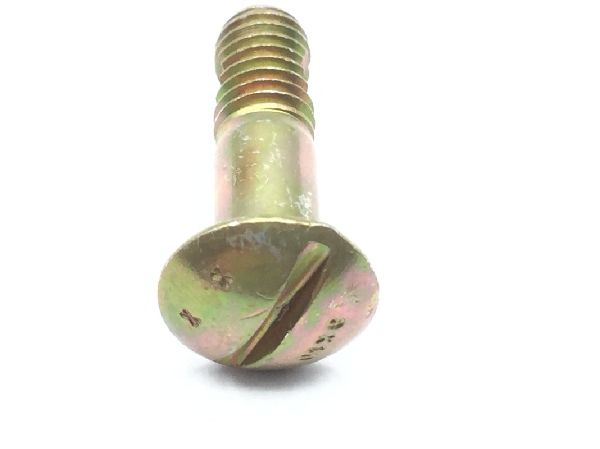

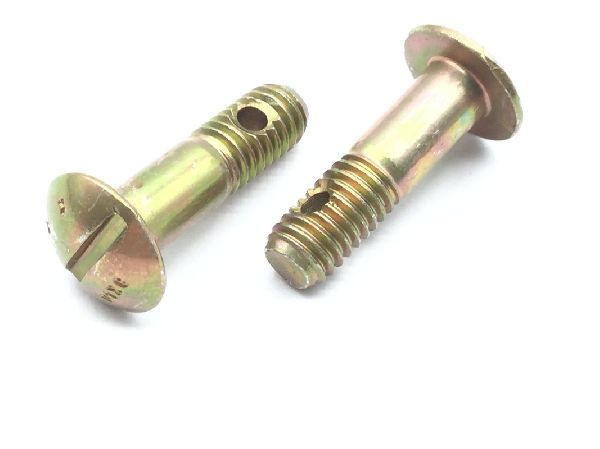

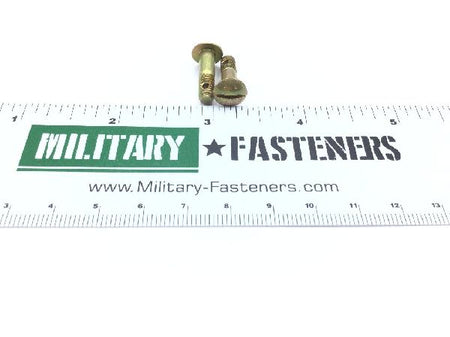

AN23-10 Clevis Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $3.57

Units per Pack 10

Price per Pack $35.70

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $35.70

Add item to quote

Head Style

Button

Material

Steel comp

Surface Treatment

Qq-p-416 type 2 class 3 federal specification single treatment response

Thread Class

Distance From Head Largest Surface To Shank Hole Center: 0.484 inches first hole and 0.516 inches first hole
Fastener Length: 0.656 inches
Groove Diameter: Between 0.136 inches and 0.146 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: 0.094 inches
Internal Drive Style: Slot
Min. Tensile Strength (psi): 125000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.070 inches first hole and 0.080 inches first hole
Single Shear Strength: 2125 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.297 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: 0.375 inches
