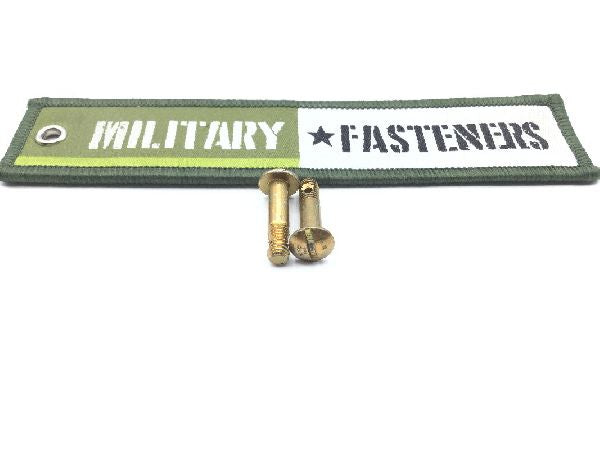

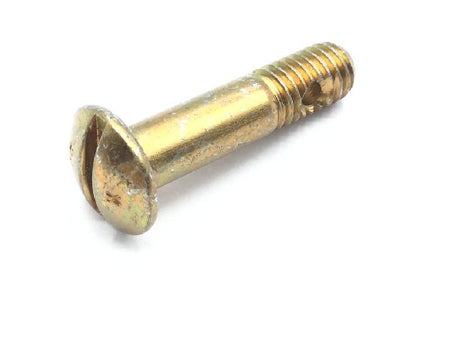

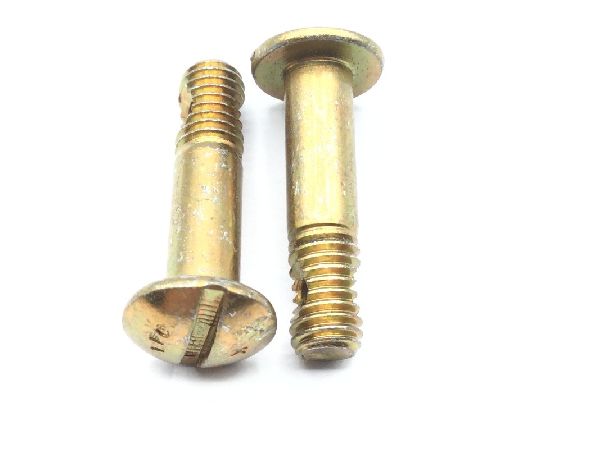

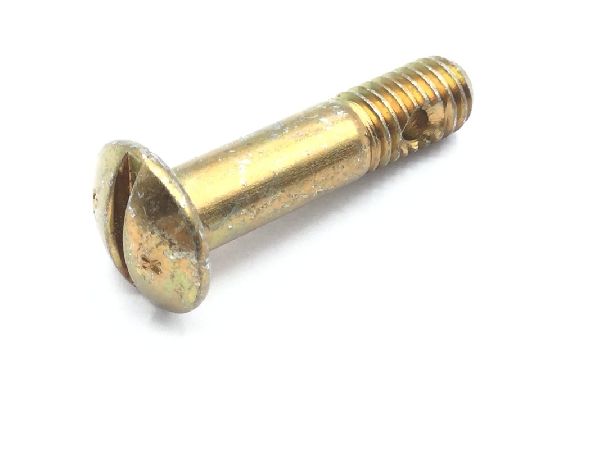

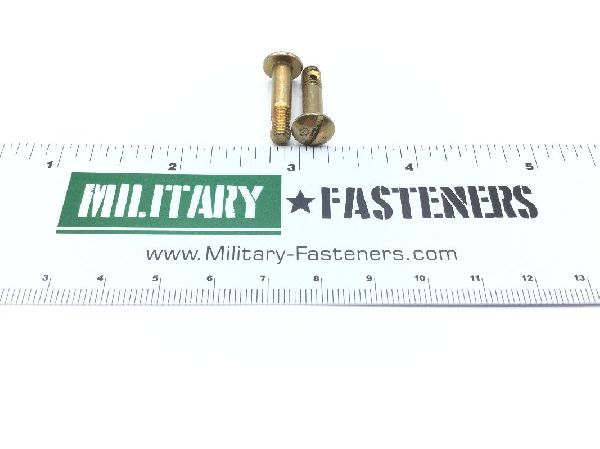

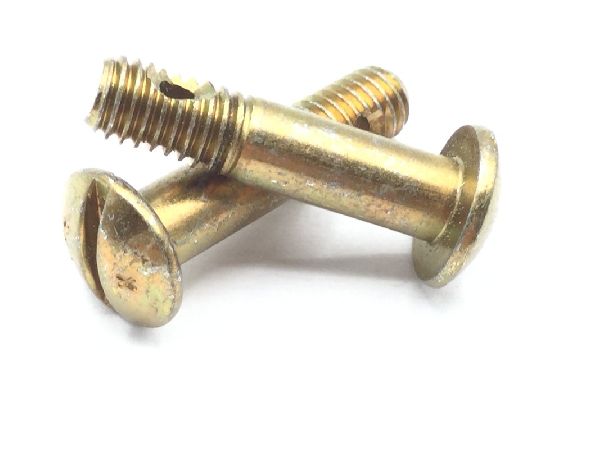

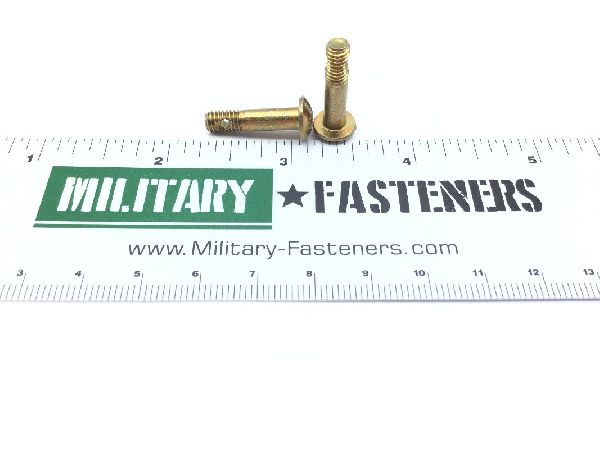

AN23-12 Clevis Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Button

Material

Steel comp 8740 or steel comp 8630 or steel comp 8735 or steel comp 4140 or steel comp 4130 or steel comp 4037

Surface Treatment

Qq-p-416 type 2 cl 3 federal specification single treatment response

Thread Class

Departure From Cited Document: Thread t per m1l-s-7742 except major d1a is not to exceed max allow bolt shank d1a
Distance From Head Largest Surface To Shank Hole Center: 0.136 inches first hole and 0.146 inches first hole
Fastener Length: Between 0.771 inches and 0.791 inches
Groove Diameter: 0.141 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.083 inches and 0.103 inches
Internal Drive Style: Slot
Min. Tensile Strength (psi): 125000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.070 inches first hole and 0.080 inches first hole
Single Shear Strength: 2125 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.323 inches and 0.363 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.365 inches and 0.385 inches
