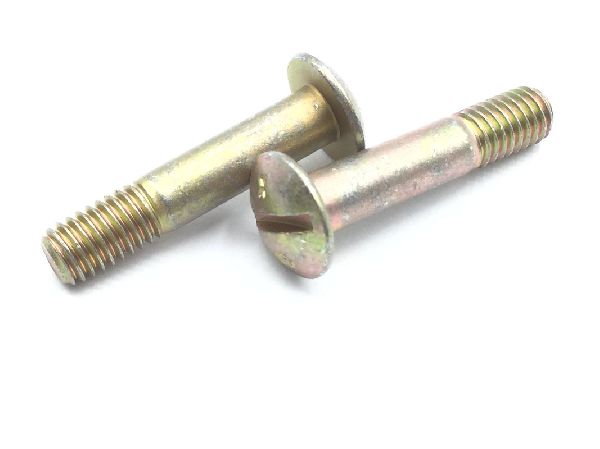

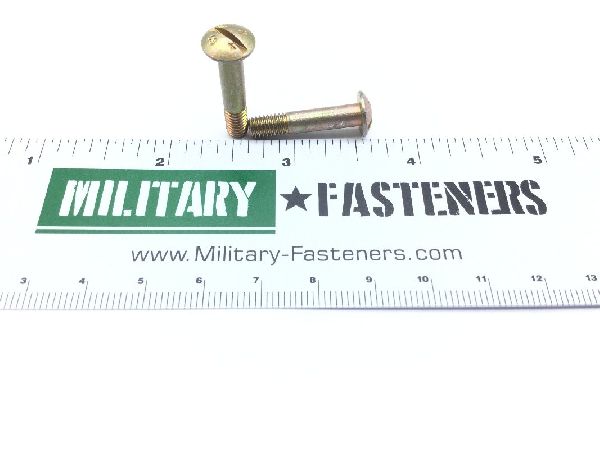

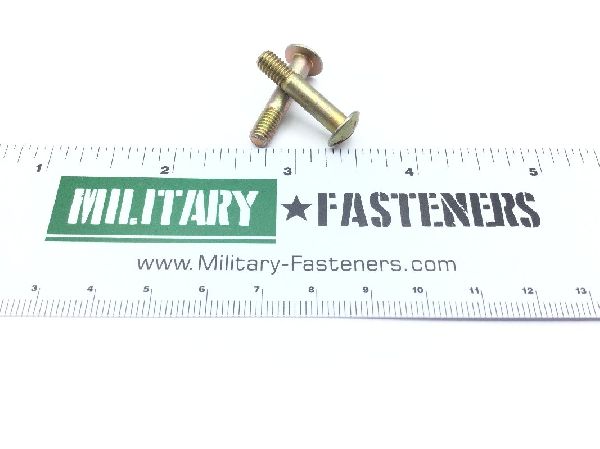

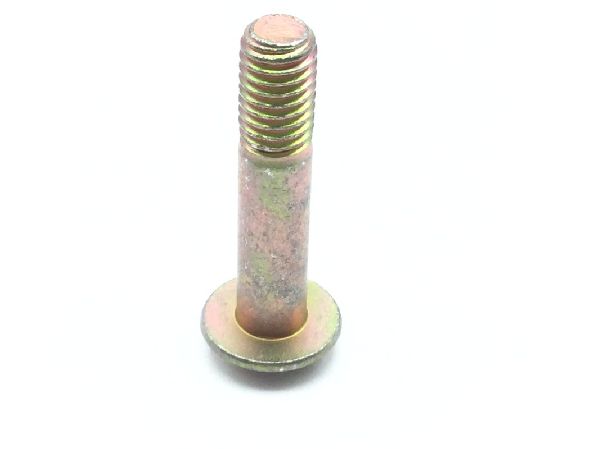

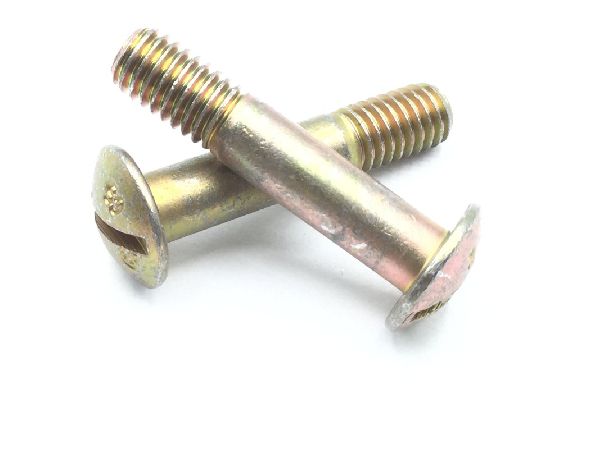

AN23-14A Clevis Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $1.84

Units per Pack 20

Price per Pack $36.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $36.80

Add item to quote

Head Style

Button

Material

Steel comp 4140 or steel comp 8740 or steel comp 8630 or steel comp 8735 or steel comp 4130 or steel comp 4037

Surface Treatment

type 2 cl 3 federal specification all treatment responses qq-p-416

Thread Class

Fastener Length: Between 0.896 inches and 0.916 inches
Groove Diameter: Between 0.136 inches and 0.146 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.083 inches and 0.103 inches
Internal Drive Style: Slot
Min. Tensile Strength (psi): 125000 pounds per square inch
Single Shear Strength: 2125 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.324 inches and 0.364 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.365 inches and 0.385 inches
