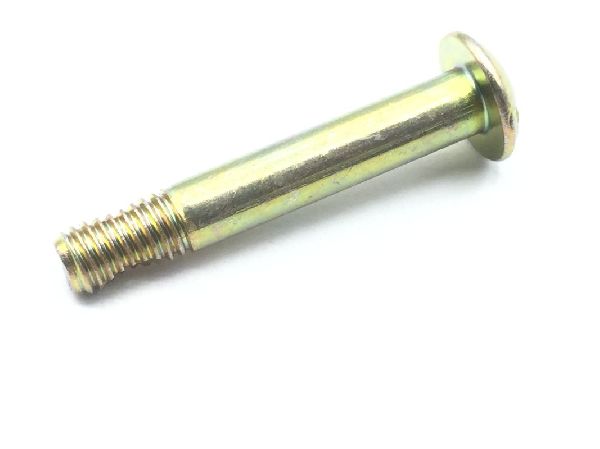

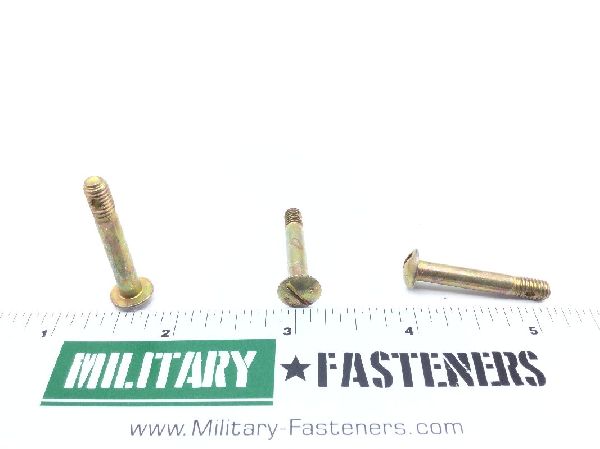

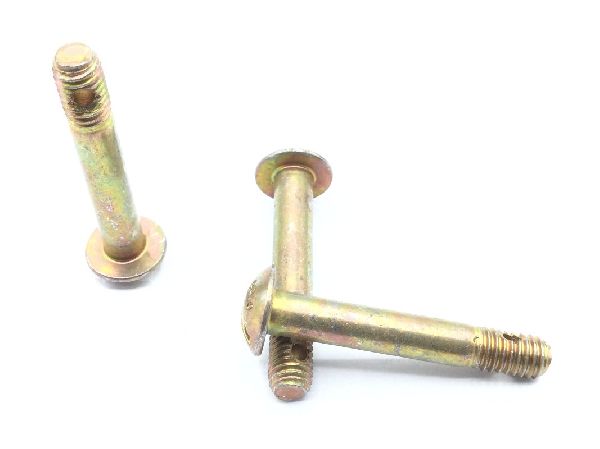

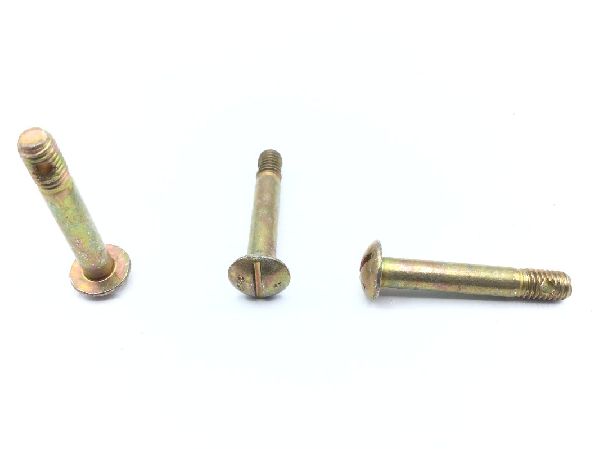

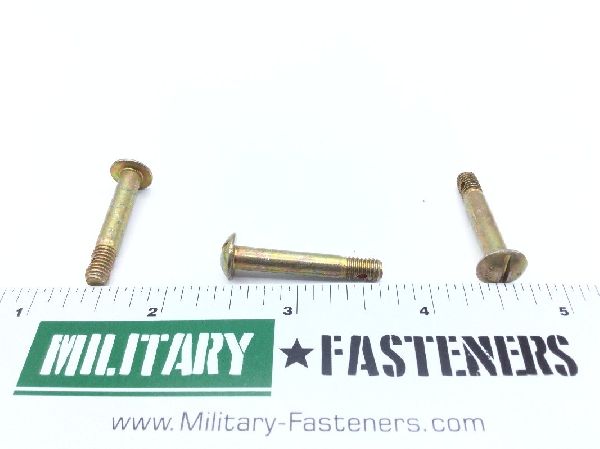

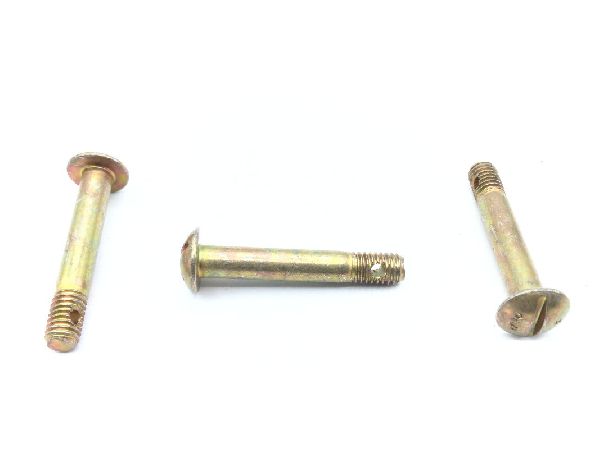

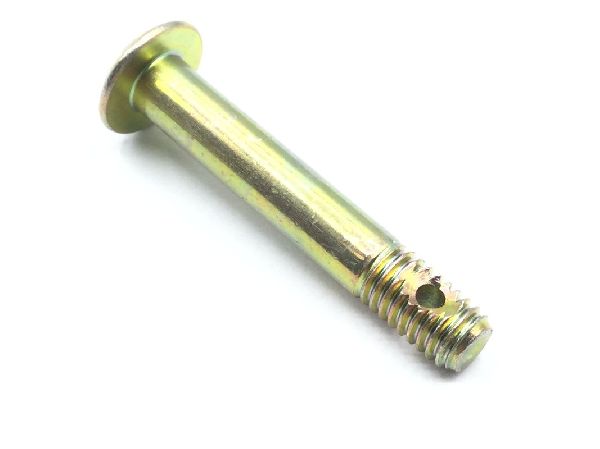

AN23-18 Clevis Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $2.52

Units per Pack 20

Price per Pack $50.40

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $50.40

Add item to quote

Head Style

Button

Material

Steel comp

Surface Treatment

Qq-p-416 type 2 class 3 federal specification single treatment response

Thread Class

Departure From Cited Document: Thread t per mil-s-7742 except major d1a is not to exceed max allow bolt shank d1a
Distance From Head Largest Surface To Shank Hole Center: 1.00 inches first hole
Fastener Length: 1.156 inches
Groove Diameter: 0.141 inches
Head Height: Between 0.078 inches and 0.110 inches
Internal Drive Style: Slot
Shank Unthreaded Hole Diameter: 0.070 inches first hole and 0.080 inches first hole
Single Shear Strength: 2125 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.297 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.359 inches and 0.391 inches
