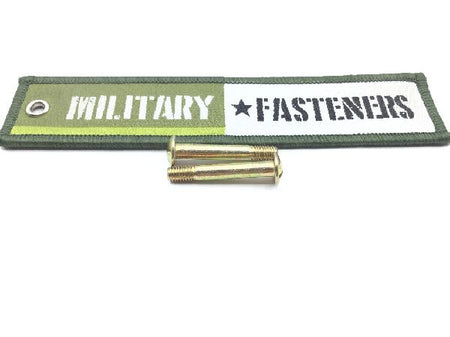

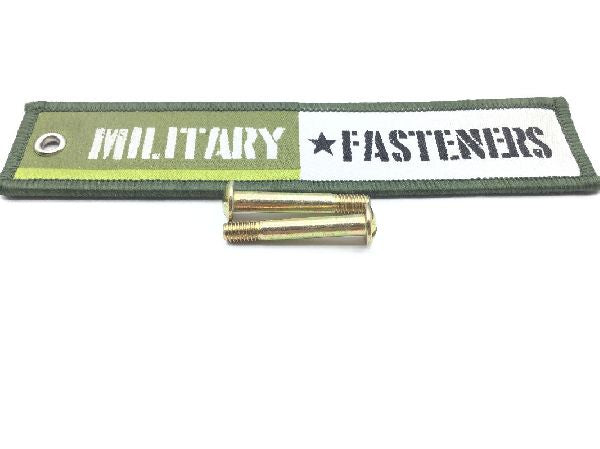

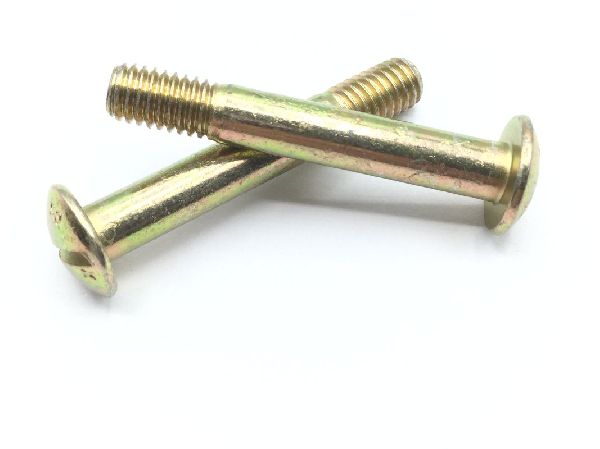

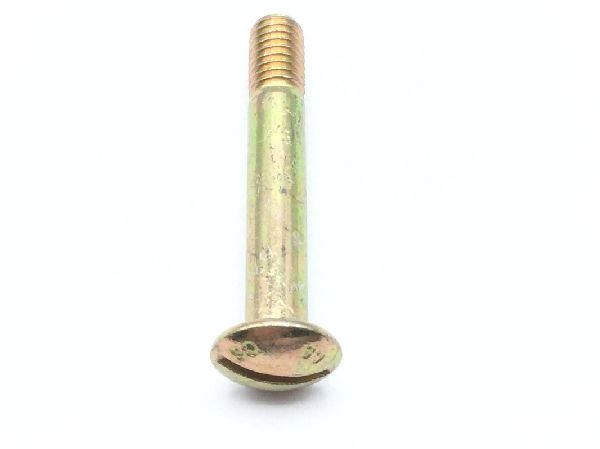

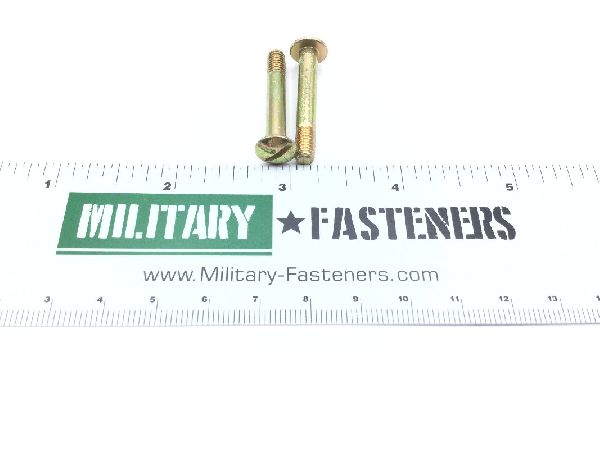

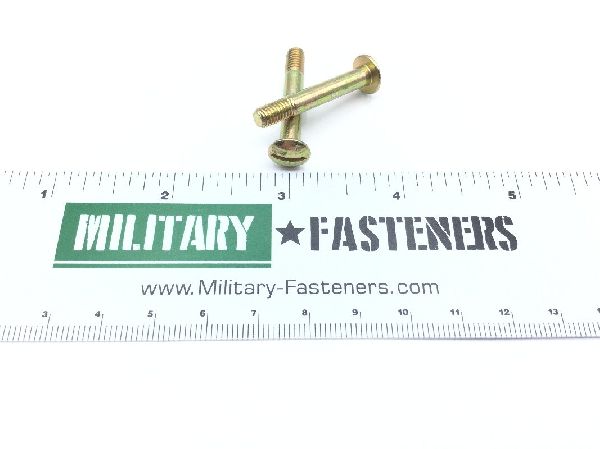

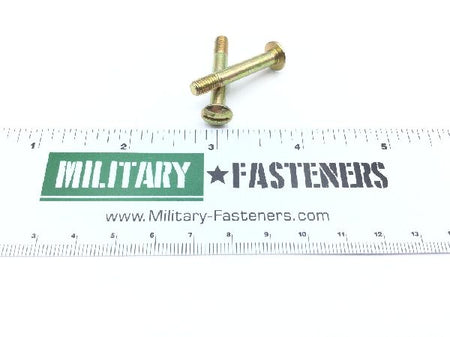

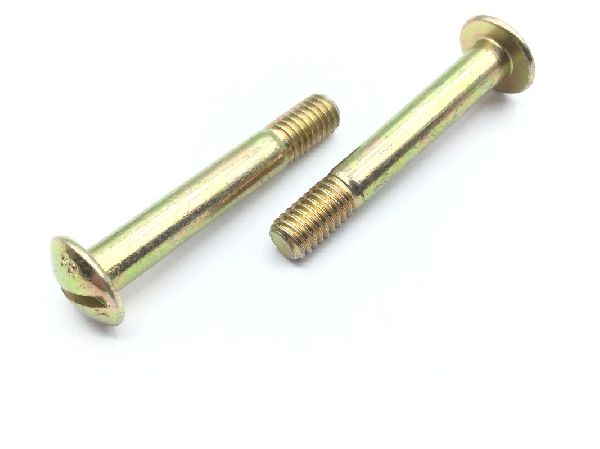

AN23-19A Clevis Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Button

Material

Steel comp 8740 or steel comp 8630 or steel comp 8735 or steel comp 4140 or steel comp 4130 or steel comp 4037

Surface Treatment

type 2 cl 3 federal specification all treatment responses qq-p-416

Thread Class

Departure From Cited Document: Thread t per mil-s-7742 except major diameter is not to exceed max allow bolt shank dia
Fastener Length: 1.219 inches
Groove Diameter: 0.141 inches
Head Height: Between 0.078 inches and 0.110 inches
Internal Drive Style: Slot
Single Shear Strength: 2125 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.297 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.359 inches and 0.391 inches
