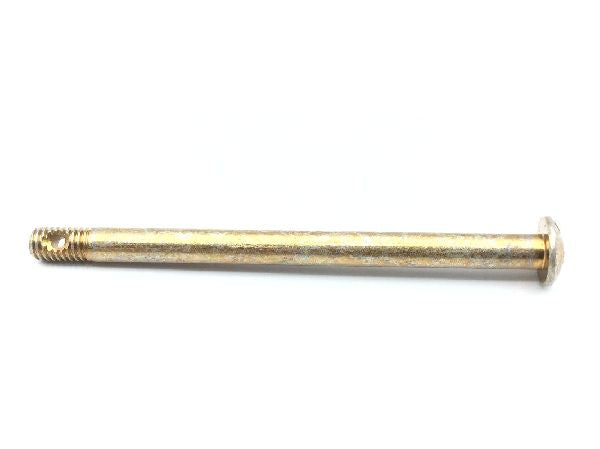

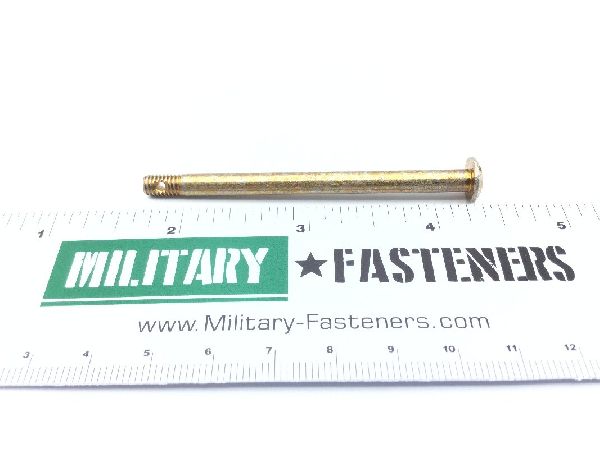

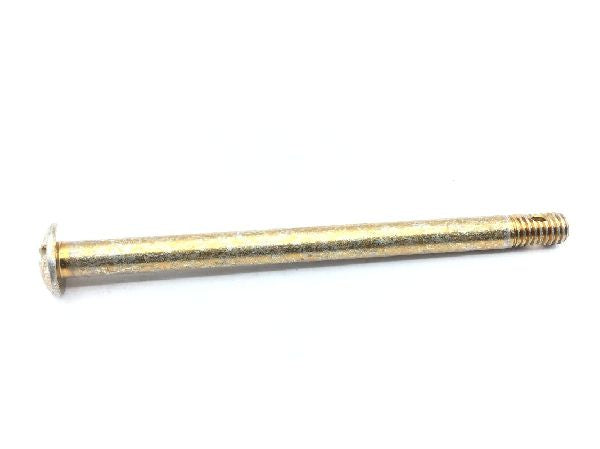

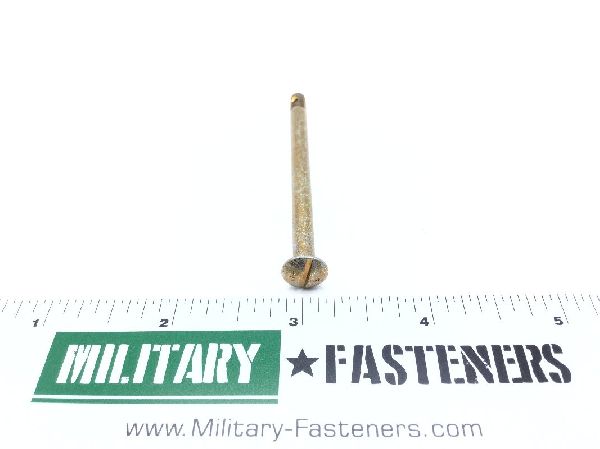

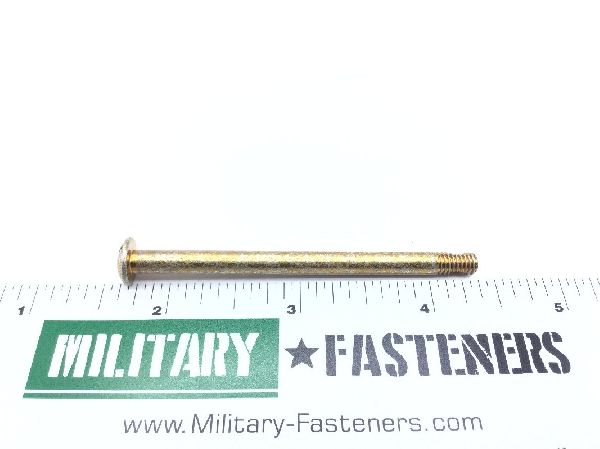

AN23-42 Clevis Bolt

Product Series: AN
ECCN: 9A991
Schedule: 7318.15.8085

Price per Unit $34.58

Units per Pack 1

Price per Pack $34.58

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $34.58

Add item to quote

Head Style

Button

Material

Steel comp

Surface Treatment

Qq-p-416 type 2 cl 3 federal specification single treatment response

Thread Class

Departure From Cited Document: Thread t per mil-s-7742 except major diameter is not to exceed max allow bolt shank d1a
Distance From Head Largest Bearing Surface To Shank Hole Center: 2.500 inches first hole
Fastener Length: 2.656 inches
Groove Diameter: 0.141 inches
Head Height: Between 0.078 inches and 0.110 inches
Internal Drive Style: Slot
Shank Unthreaded Hole Diameter: 0.070 inches first hole and 0.080 inches first hole
Single Shear Strength: 2125 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.297 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.359 inches and 0.391 inches
