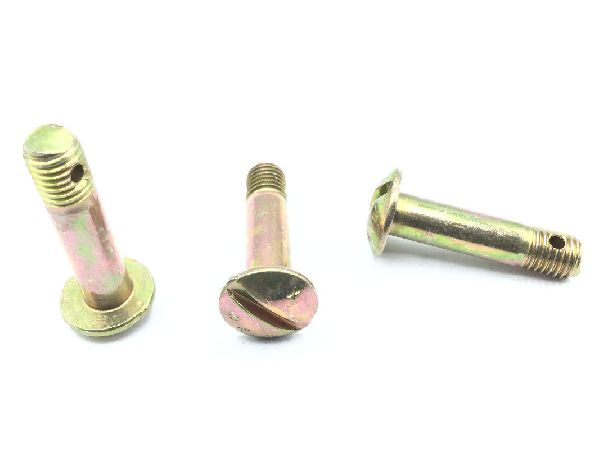

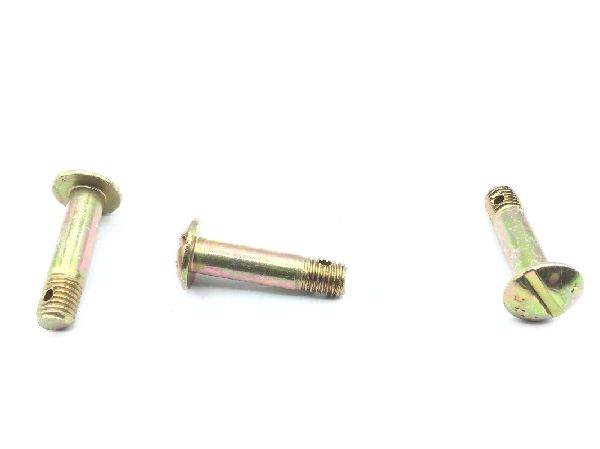

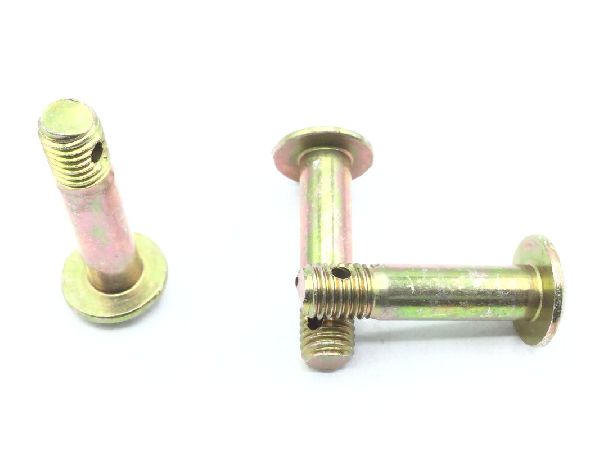

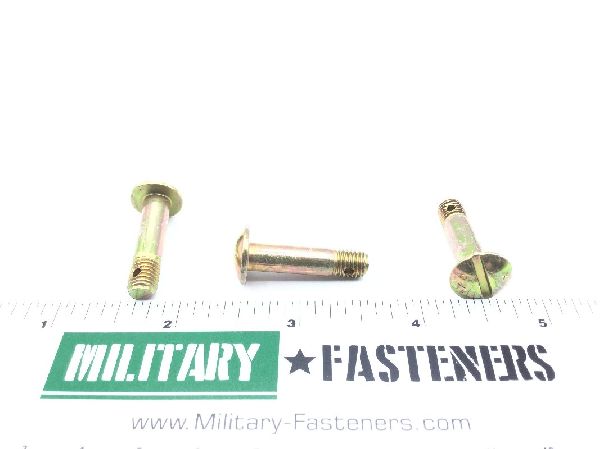

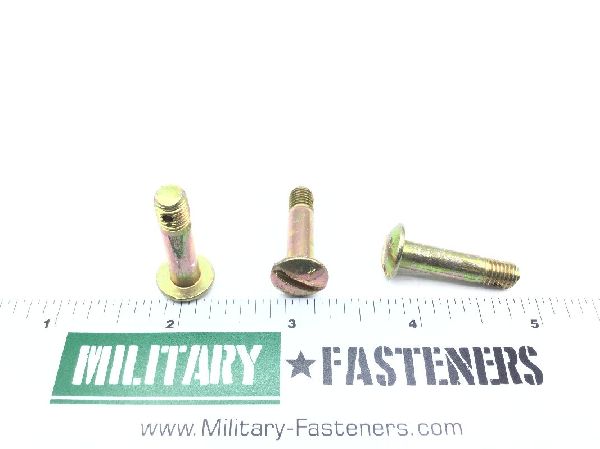

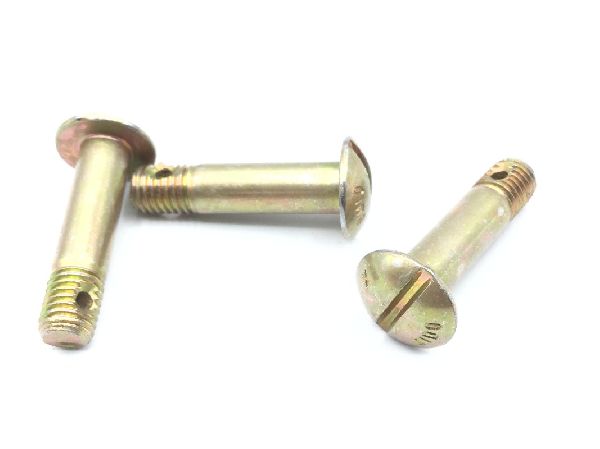

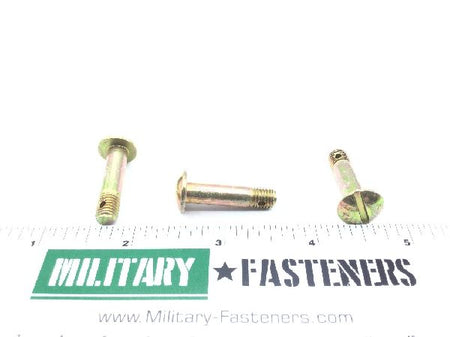

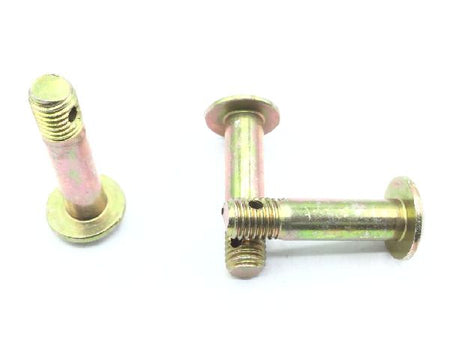

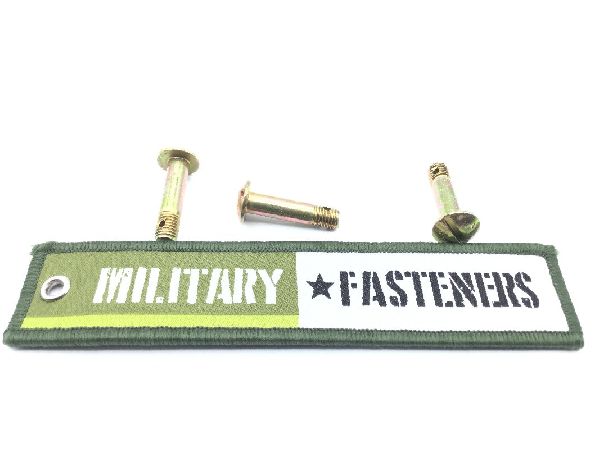

AN24-16 Clevis Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Button

Material

Steel comp 4140 or steel comp 8740 or steel comp 8630 or steel comp 8735 or steel comp 4130 or steel comp 4037

Surface Treatment

Qq-p-416 type 2 cl 3 federal specification single treatment response

Thread Class

Distance From Head Largest Bearing Surface To Shank Hole Center: 0.86 inches first hole and 0.892 inches first hole
Fastener Length: 1.031 inches
Groove Diameter: Between 0.191 inches and 0.201 inches
Head Height: 0.125 inches
Internal Drive Style: Slot
Shank Unthreaded Hole Diameter: 0.076 inches first hole and 0.086 inches first hole
Thread Diameter: 0.25 inches
Thread Direction: Right-hand
Thread Length: 0.225 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Head Diameter: 0.50 inches
