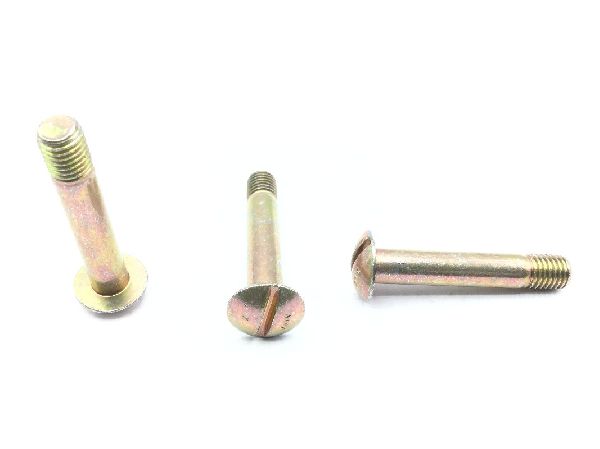

AN24-22A Clevis Bolt

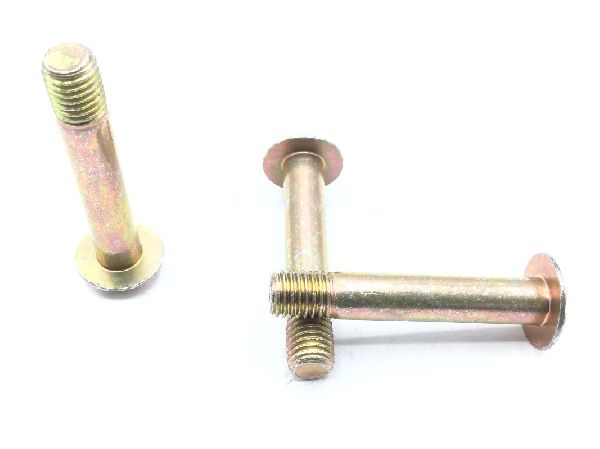

AN24-22A Clevis Bolt (2)

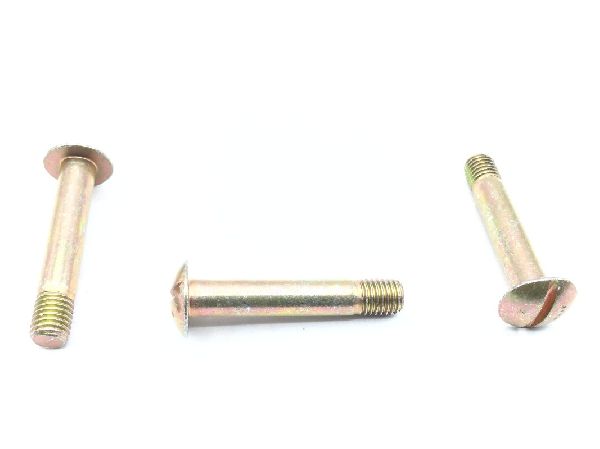

AN24-22A Clevis Bolt (3)

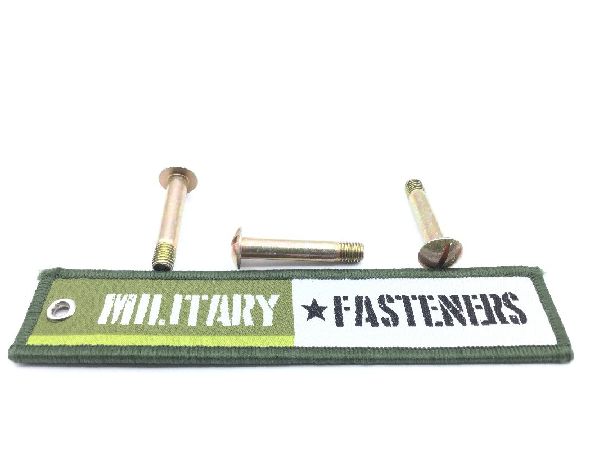

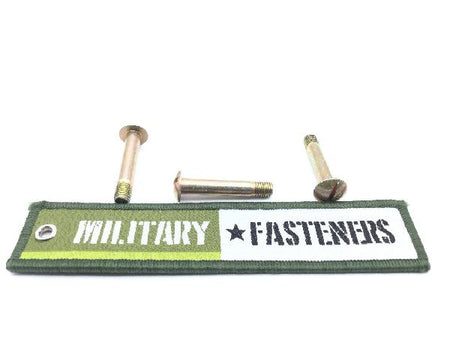

AN24-22A Clevis Bolt (4)

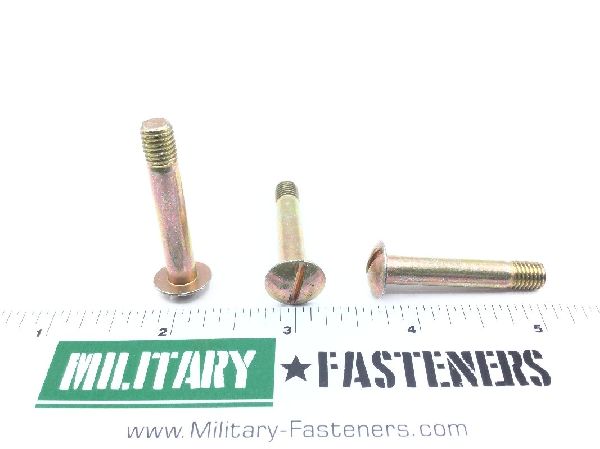

AN24-22A Clevis Bolt (5)

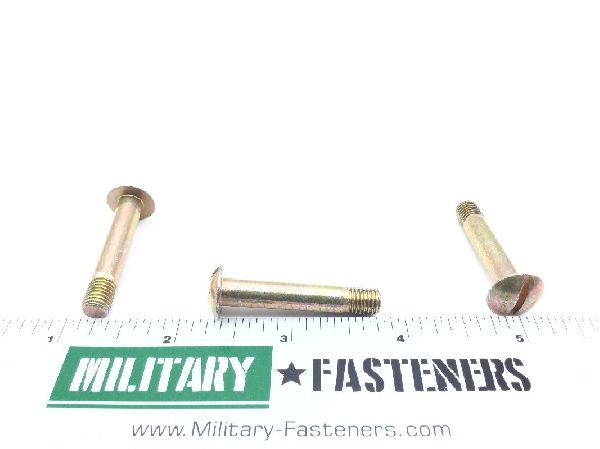

AN24-22A Clevis Bolt (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN24-22A Clevis Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $2.85

Units per Pack 20

Price per Pack $57.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $57.00

Add item to quote

Head Style

Button

Material

Steel comp 4140 or steel comp 8740 or steel comp 8630 or steel comp 8735 or steel comp 4130 or steel comp 4037

Surface Treatment

type 2 cl 3 federal specification all treatment responses qq-p-416

Thread Class

3a

Fastener Length: Between 1.396 inches and 1.416 inches
Groove Diameter: Between 0.191 inches and 0.201 inches
Head Height: 0.125 inches
Internal Drive Style: Slot
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.324 inches and 0.364 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Head Diameter: 0.500 inches
