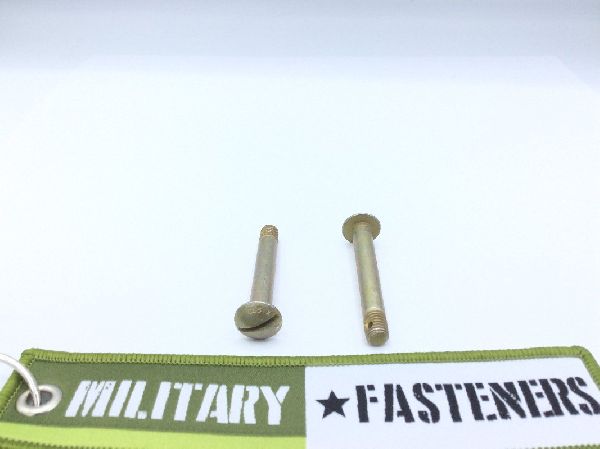

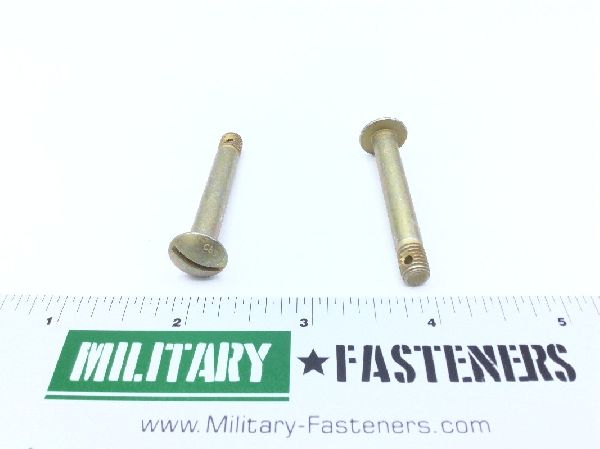

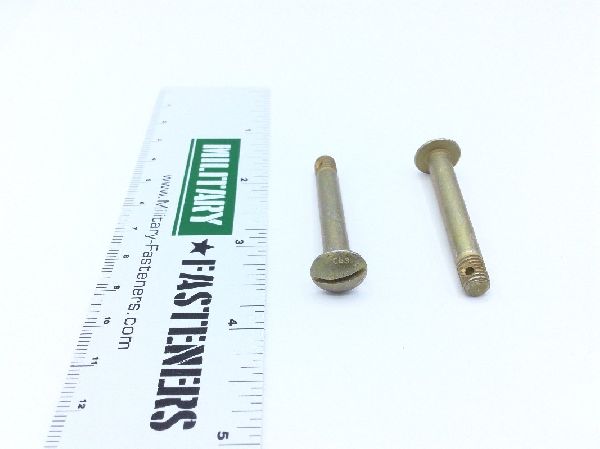

AN24-28 Clevis Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $19.16

Units per Pack 2

Price per Pack $38.32

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $38.32

Add item to quote

Head Style

Button

Material

Steel

Surface Treatment

type 2 cl 3 federal specification all treatment responses qq-p-416

Thread Class

Distance From Head Largest Bearing Surface To Shank Hole Center: 1.610 inches first hole and 1.642 inches first hole
Fastener Length: 1.781 inches
Groove Diameter: Between 0.191 inches and 0.201 inches
Head Height: 0.125 inches
Internal Drive Style: Slot
Shank Unthreaded Hole Diameter: 0.076 inches first hole and 0.086 inches first hole
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 0.225 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Head Diameter: 0.500 inches
