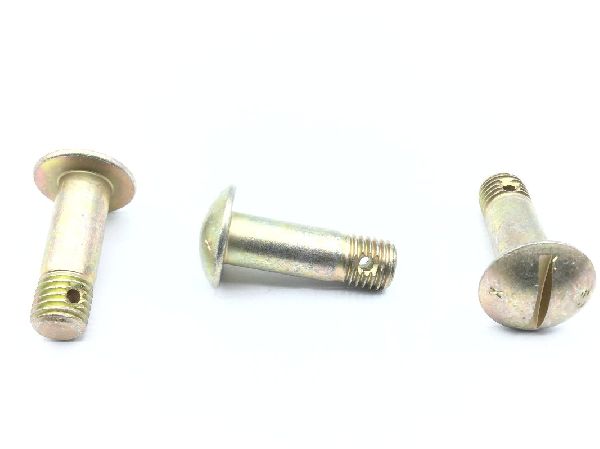

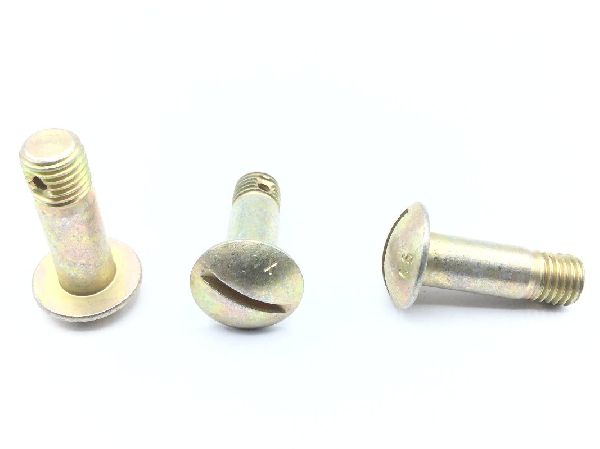

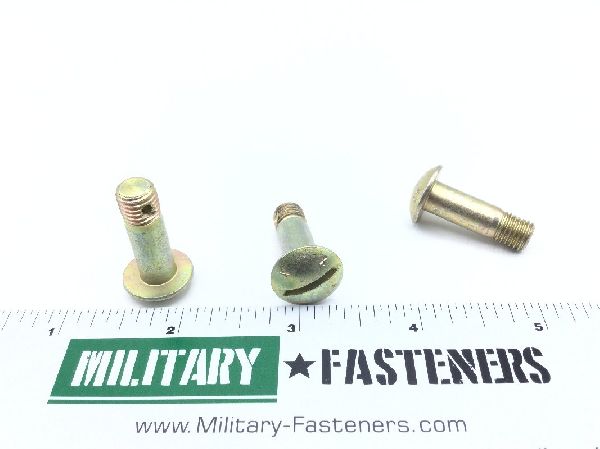

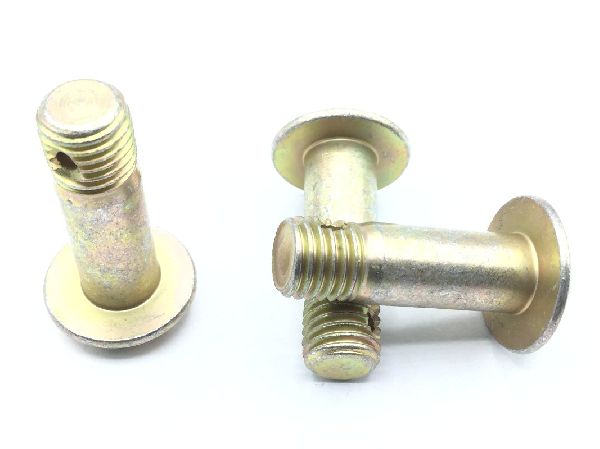

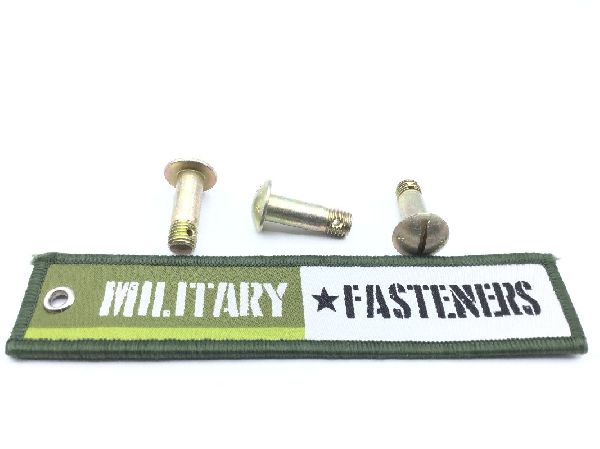

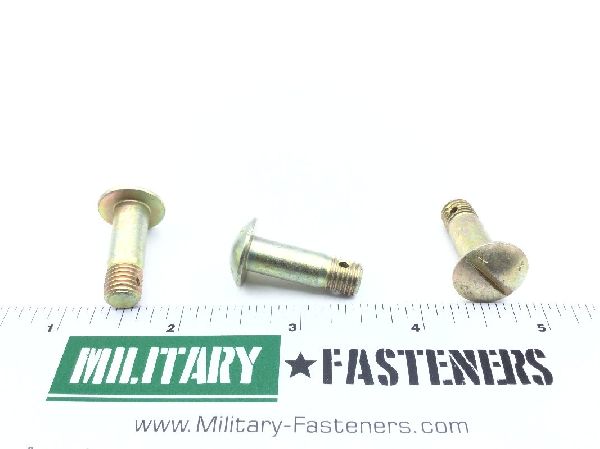

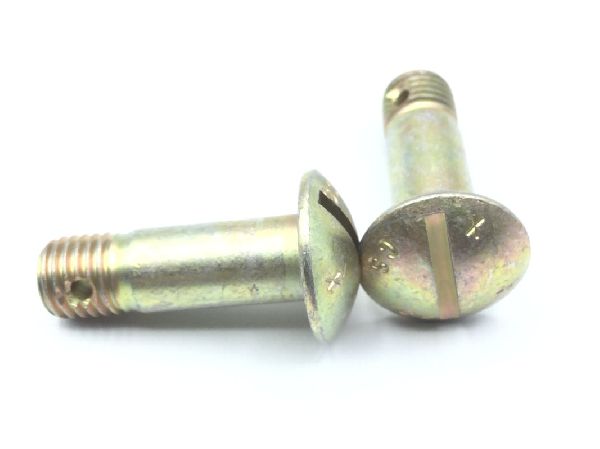

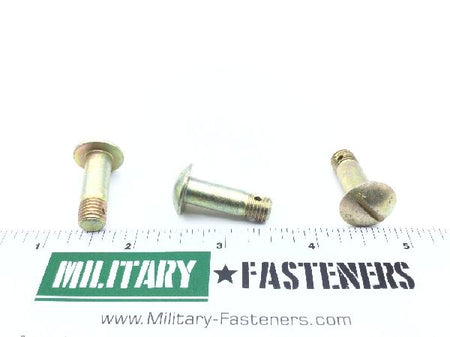

AN25-15 Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $12.40

Units per Pack 5

Price per Pack $62.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $62.00

Add item to quote

Head Style

Button

Material

Steel comp

Surface Treatment

Qq-p-416 type 2 class 3 federal specification single treatment response

Thread Class

Distance From Head Largest Surface To Shank Hole Center: 0.798 inches first hole and 0.828 inches first hole
Fastener Length: Between 0.974 inches and 0.994 inches
Groove Diameter: Between 0.245 inches and 0.255 inches
Head Height: 0.156 inches
Internal Drive Style: Slot
Shank Unthreaded Hole Diameter: 0.076 inches first hole and 0.086 inches first hole
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: Between 0.339 inches and 0.379 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Head Diameter: 0.625 inches
