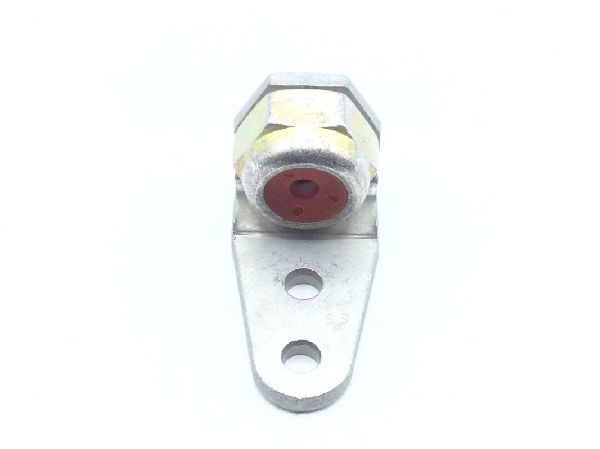

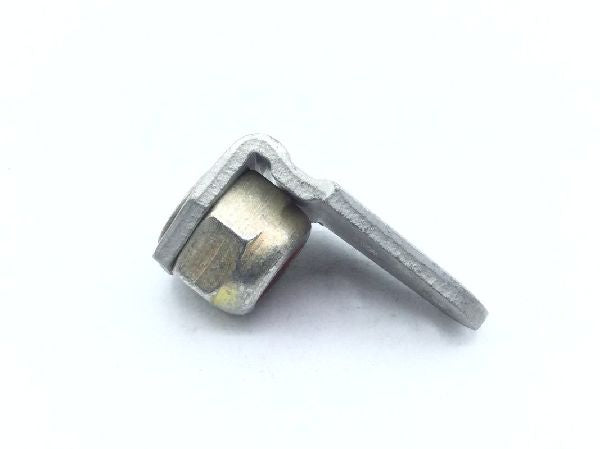

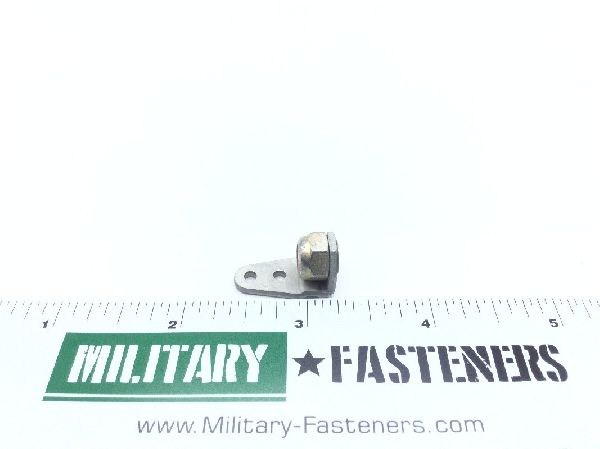

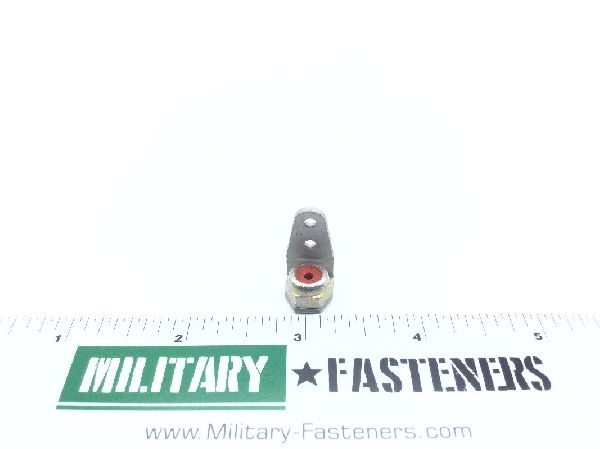

AN256F6 Self-Locking Nutplate

Product Series: AN
ECCN: EAR99
Schedule: 7318.16.0085

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel

Surface Treatment

Qq-p-416 federal specification single treatment response

Thread Class

Thread Series

Unc (coarse thread)

Thread Size

0.138 inches

Center To Center Distance Between Mounting Holes Along Length: Between 0.247 inches and 0.253 inches
Distance From Base To Center Of Aperture: Between 0.266 inches and 0.296 inches
Distance From Mounting Hole Center To Base: Between 0.453 inches and 0.483 inches
Locking Feature: Prevailing torque all metal design or prevailing torque with nonmetallic insert
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.098 inches and 0.103 inches
Nut Height: Between 0.298 inches and 0.328 inches
Nut Length: Between 0.875 inches and 0.905 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Plate Thickness: 0.062 inches
Plate Width: Between 0.423 inches and 0.453 inches
Tempurature Rating: 250.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
