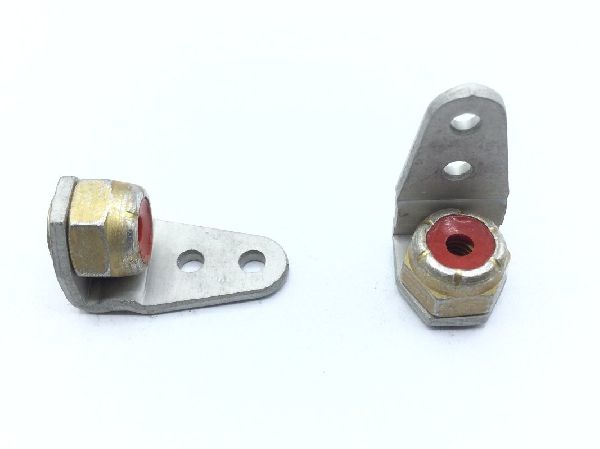

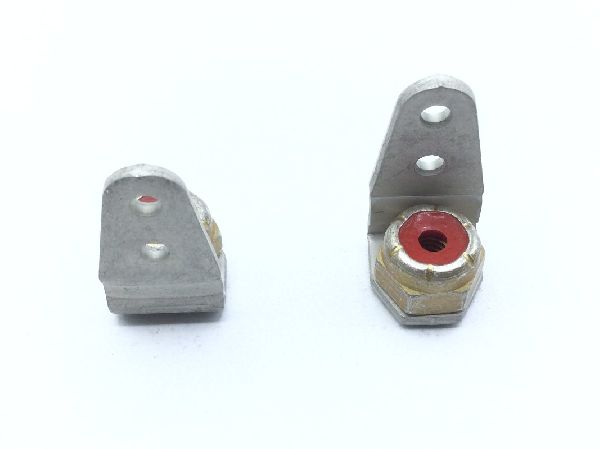

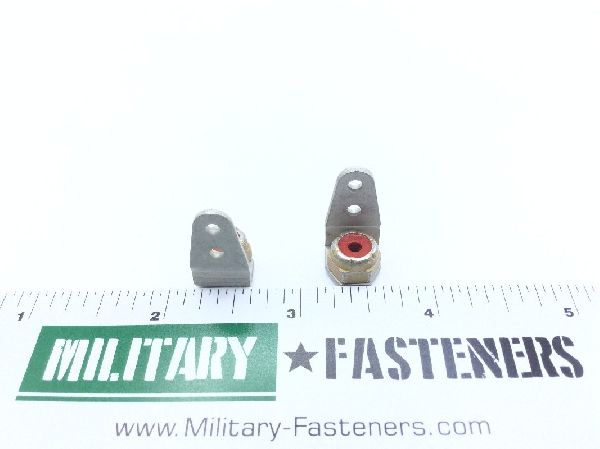

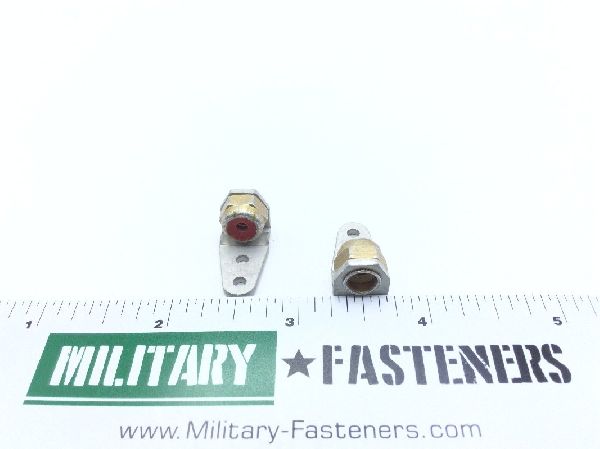

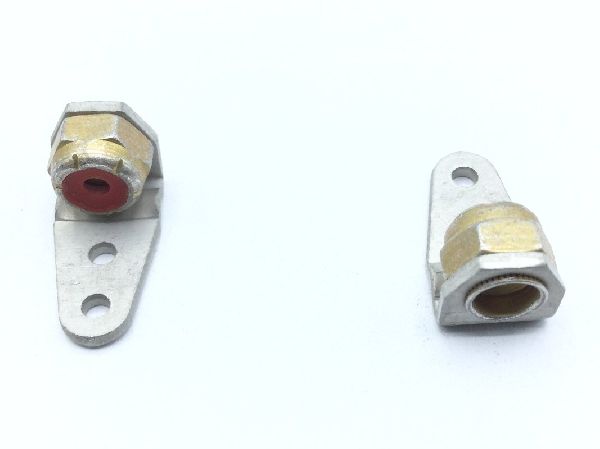

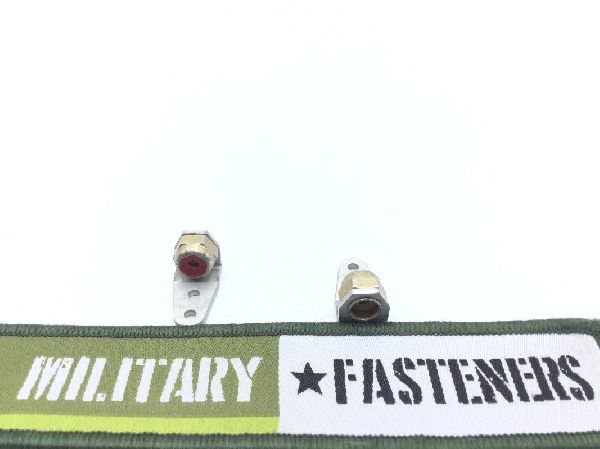

AN256F8 Locknut

Product Series: AN
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Plastic polyamide locking insert

Surface Treatment

Qq-p-416 federal specification single treatment response nut

Thread Class

Thread Series

Unc (coarse thread)

Thread Size

0.164 inches

Center To Center Distance Between Mounting Holes Along Length: Between 0.247 inches and 0.253 inches
Distance From Base To Center Of Aperture: 0.281 inches
Distance From Mounting Hole Center To Base: 0.468 inches
Locking Feature: Prevailing torque with nonmetallic insert
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.098 inches and 0.103 inches
Nut Height: 0.313 inches
Nut Length: 0.859 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Plate Thickness: 0.062 inches
Plate Width: 0.438 inches
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
