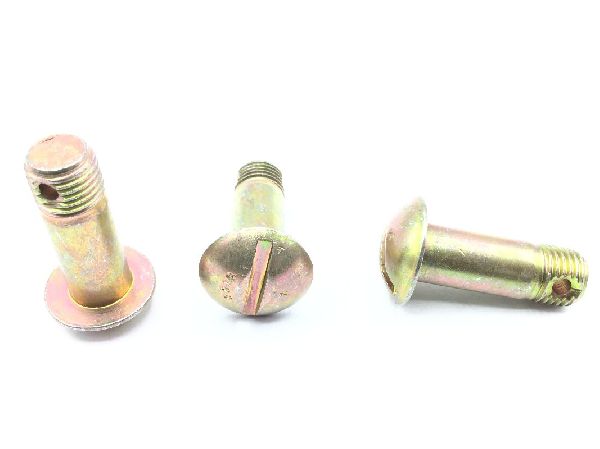

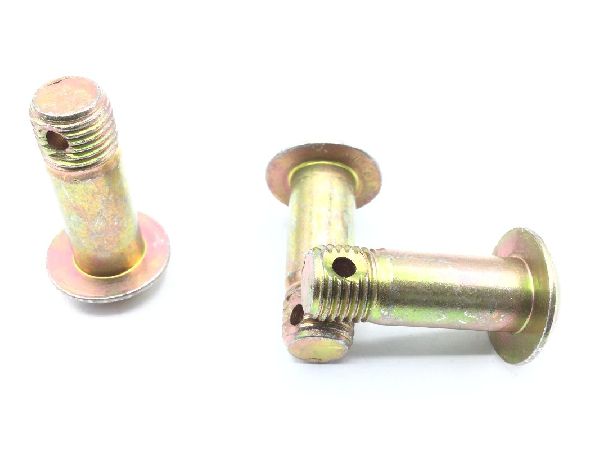

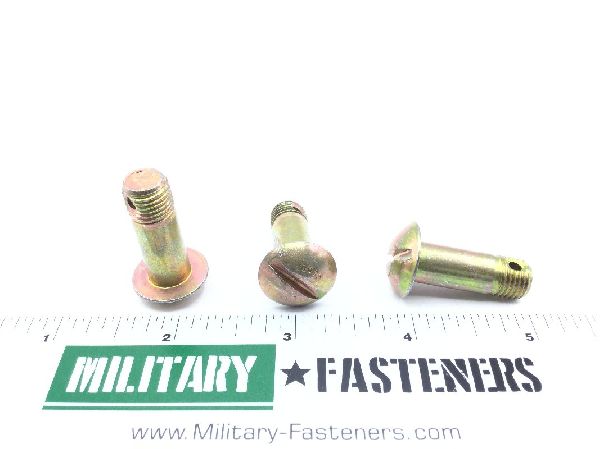

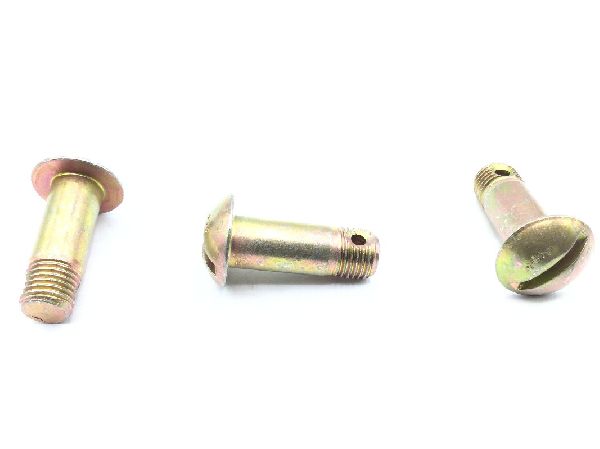

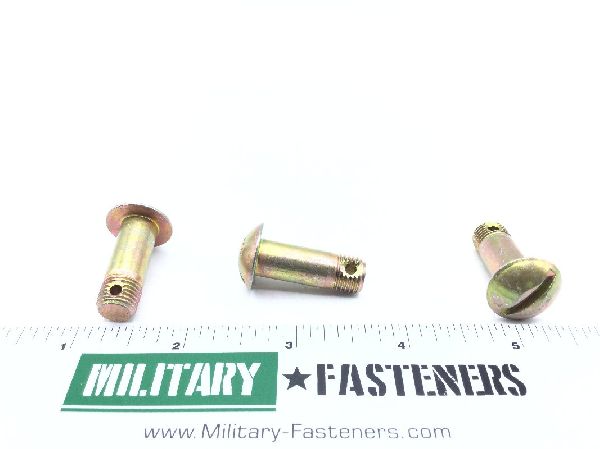

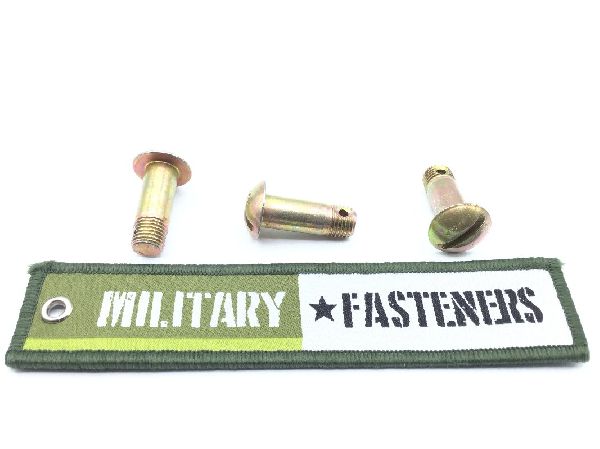

AN26-16 Clevis Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $2.56

Units per Pack 20

Price per Pack $51.20

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $51.20

Add item to quote

Head Style

Button

Material

Steel comp

Surface Treatment

Qq-p-416 type 2 cl 3 federal specification single treatment response

Thread Class

Distance From Head Largest Surface To Shank Hole Center: 0.907 inches first hole
Fastener Length: 1.047 inches
Groove Diameter: 0.062 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: 0.188 inches
Internal Drive Style: Slot
Min. Tensile Strength (psi): 125000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.106 inches first hole
Single Shear Strength: 8280 pounds per square inch
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: 0.359 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Head Diameter: 0.688 inches
