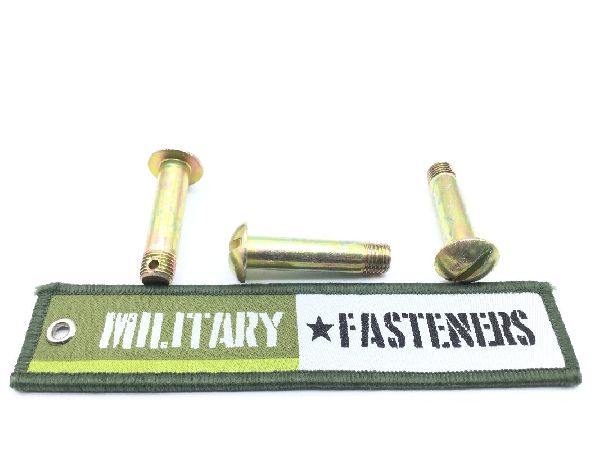

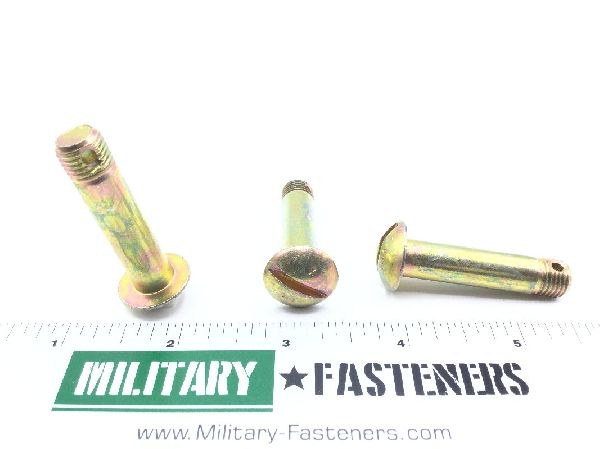

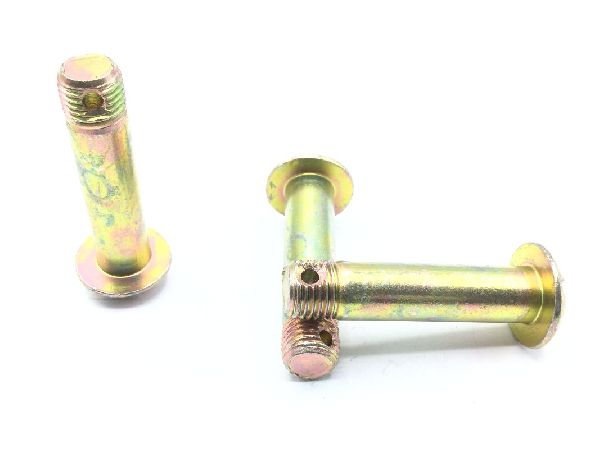

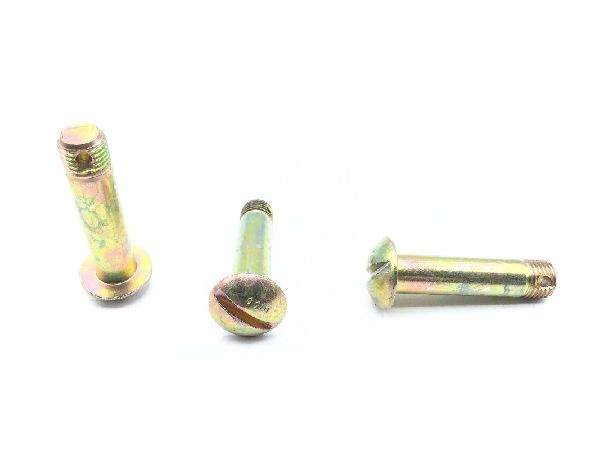

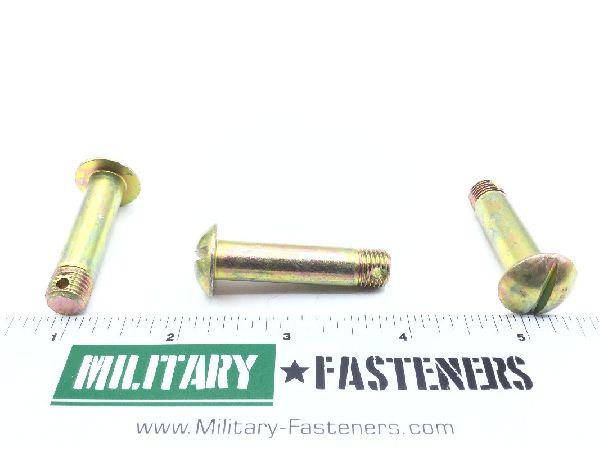

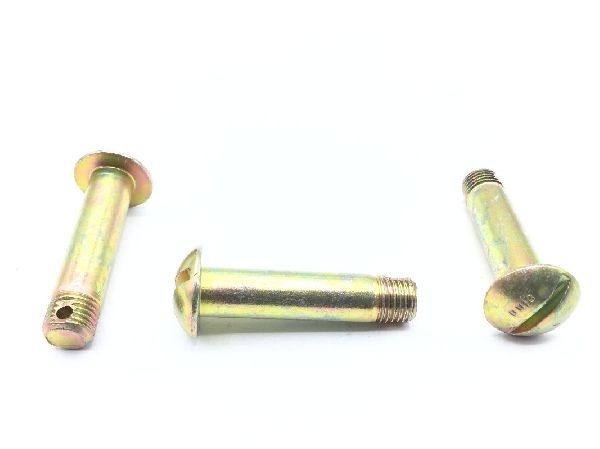

AN26-25 Clevis Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $9.01

Units per Pack 5

Price per Pack $45.05

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $45.05

Add item to quote

Head Style

Button

Material

Steel comp 4037 or steel comp 4130 or steel comp 8630 or steel comp 8735 or steel comp 8740 or steel comp 4140

Surface Treatment

Qq-p-416 type 2 cl 3 federal specification single treatment response

Thread Class

Departure From Cited Document: Thread t per mil-s-7742 except major diameter is not to exceed max allow shank bolt dia
Distance From Head Largest Bearing Surface To Shank Hole Center: 1.469 inches first hole
Fastener Length: 1.609 inches
Groove Diameter: 0.313 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: 0.188 inches
Internal Drive Style: Slot
Material Specification: Mil-b-6812 military specification all material responses
Min. Tensile Strength (psi): 125000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.106 inches first hole and 0.116 inches first hole
Single Shear Strength: 8280 pounds per square inch
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: 0.359 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Head Diameter: 0.688 inches
