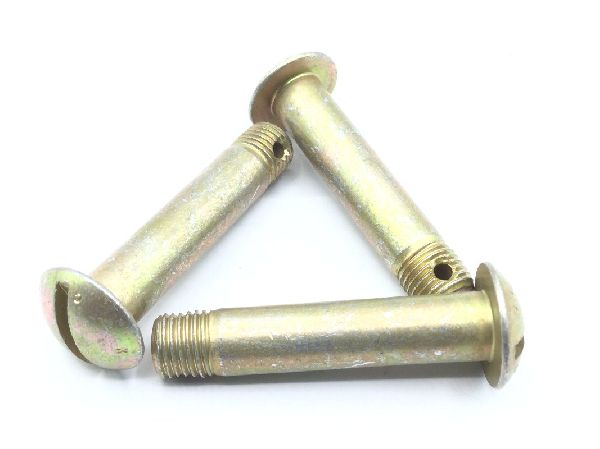

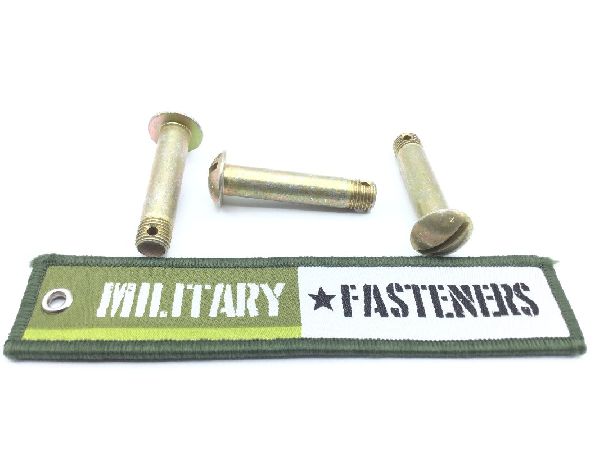

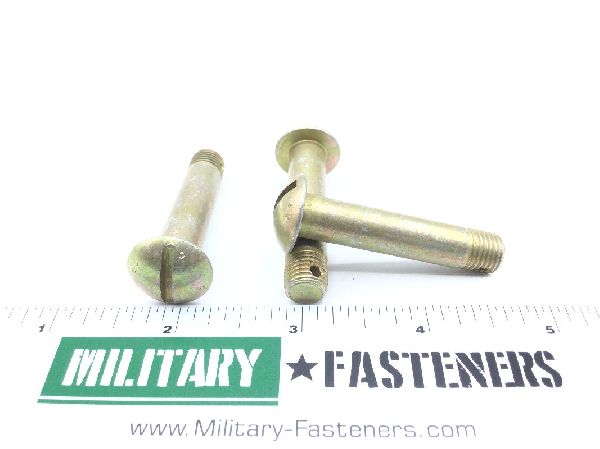

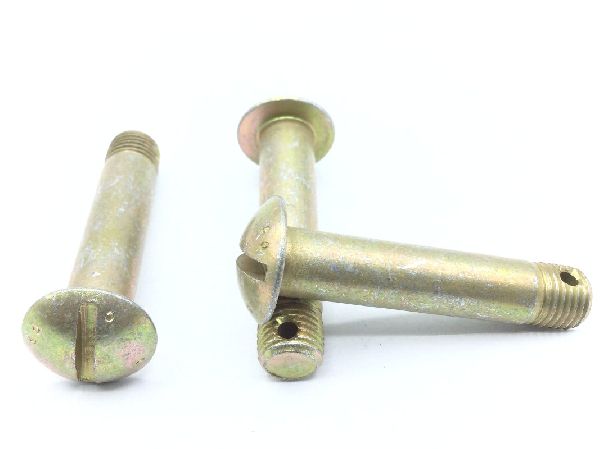

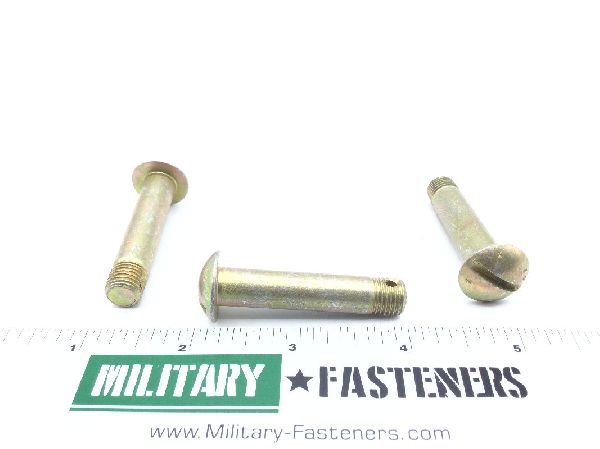

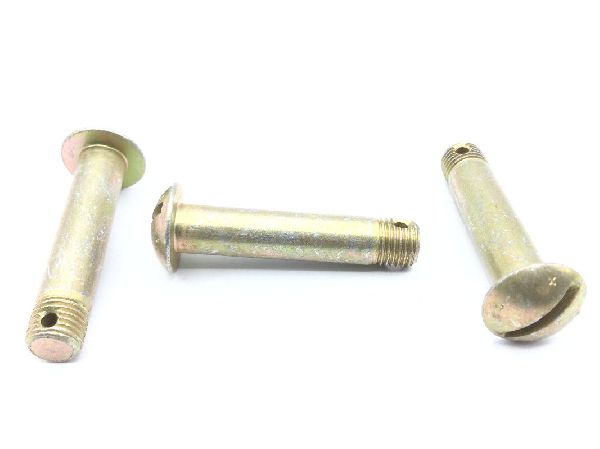

AN26-28 Clevis Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $44.28

Units per Pack 2

Price per Pack $88.56

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $88.56

Add item to quote

Head Style

Button

Material

Steel

Surface Treatment

Qq-p-416 type 2 cl 3 federal specification single treatment response

Thread Class

Distance From Head Largest Bearing Surface To Shank Hole Center: 1.641 inches first hole and 1.672 inches first hole
Fastener Length: Between 1.781 inches and 1.812 inches
Groove Diameter: Between 0.308 inches and 0.318 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.172 inches and 0.203 inches
Internal Drive Style: Slot
Min. Tensile Strength (psi): 125000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.106 inches first hole and 0.116 inches first hole
Single Shear Strength: 8280 pounds per square inch
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: 1.781 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.672 inches and 0.703 inches
