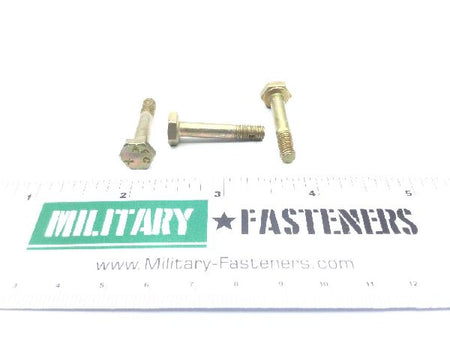

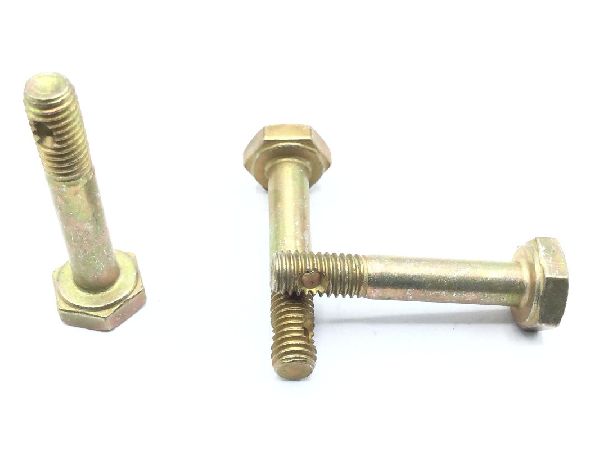

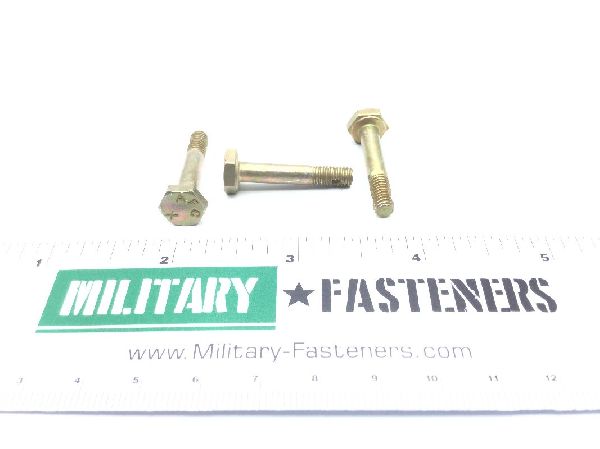

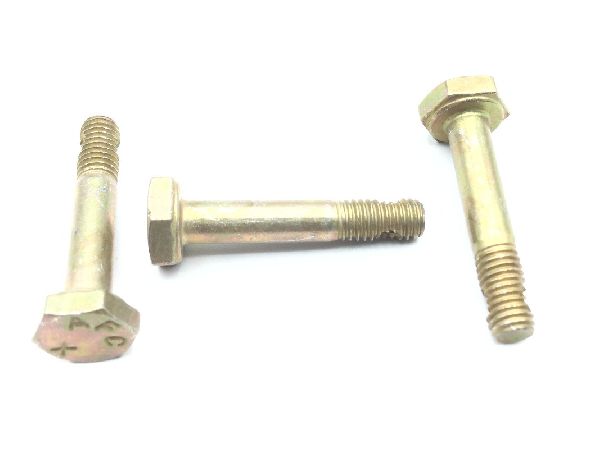

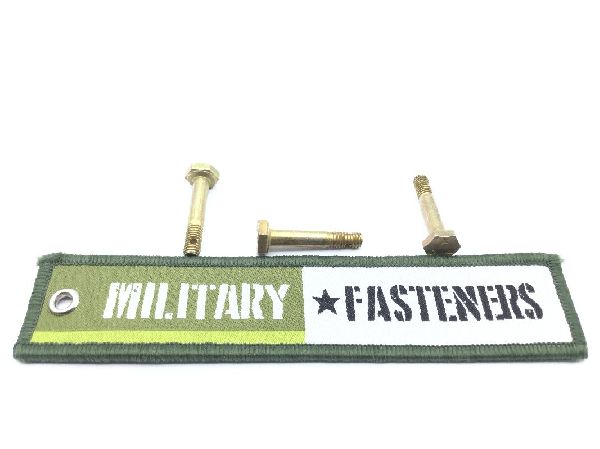

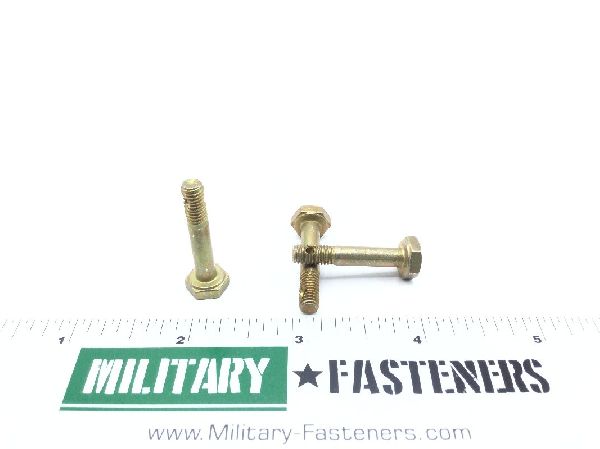

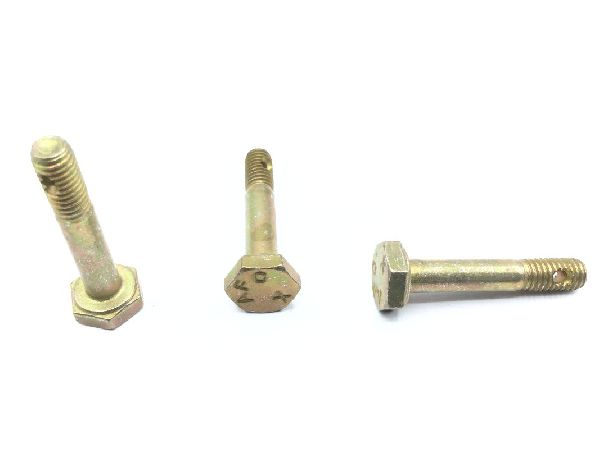

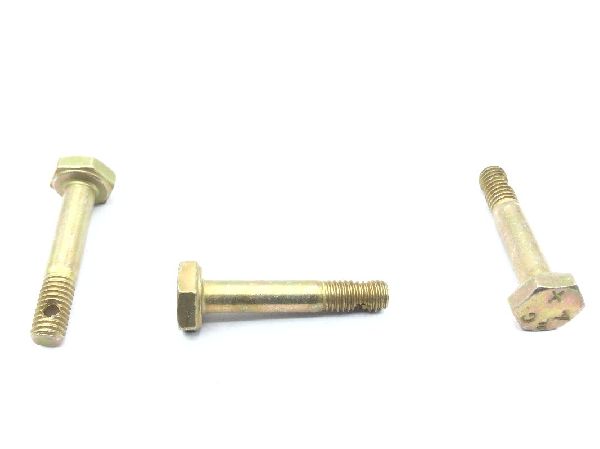

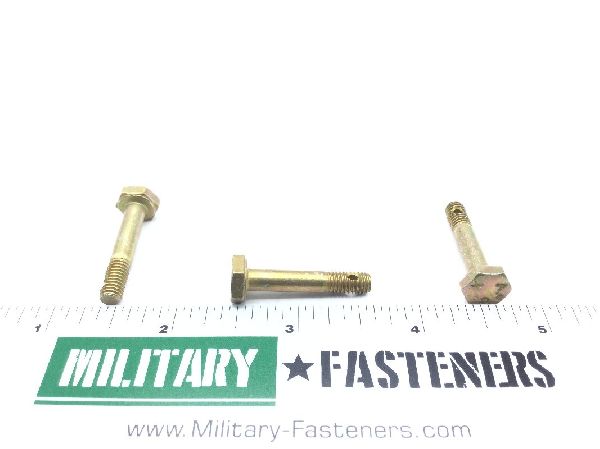

AN3-10 Machine Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $1.30

Units per Pack 25

Price per Pack $32.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $32.50

Add item to quote

Head Style

Hexagon

Material

Steel comp 4140 or steel comp 8740 or steel comp 8630 or steel comp 8735 or steel comp 4130 or steel comp 4037

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Distance From Head Largest Bearing Surface To Shank Hole Center: 0.891 inches first hole
Fastener Length: 1.031 inches
Features: Finished head
Features Provided: Finished head
Grip Length: 0.625 inches
Hardness Rating: 26 rockwell c and 32 rockwell c
Head Height: Between 0.109 inches and 0.141 inches
Min. Tensile Strength (psi): 125000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.07 inches first hole
Thread Diameter: 0.19 inches
Thread Direction: Right-hand
Thread Length: 0.406 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.365 inches and 0.377 inches
