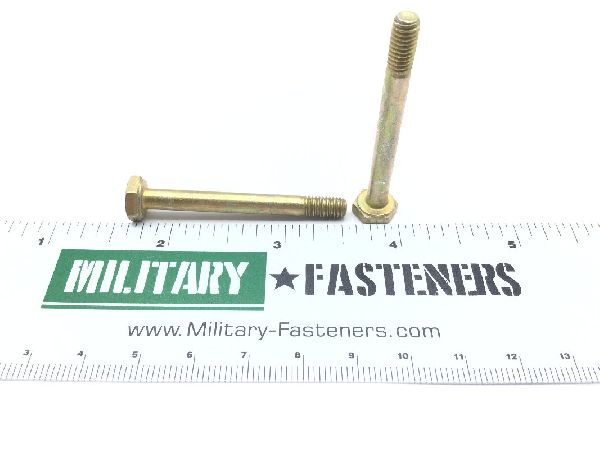

AN3-16A Machine Bolt

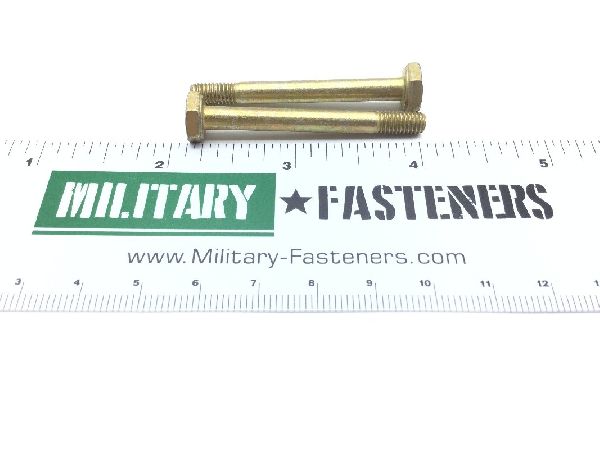

AN3-16A Machine Bolt (2)

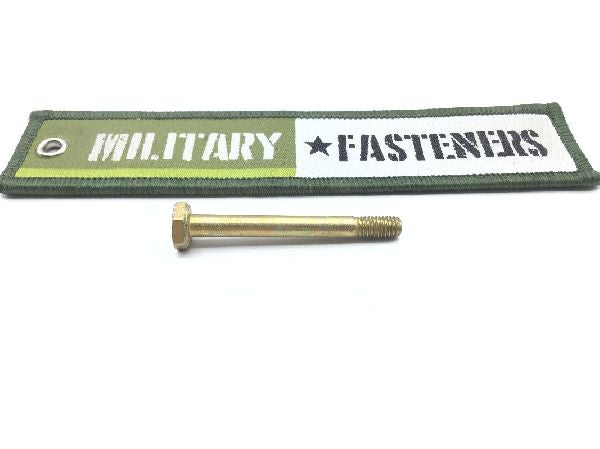

AN3-16A Machine Bolt (3)

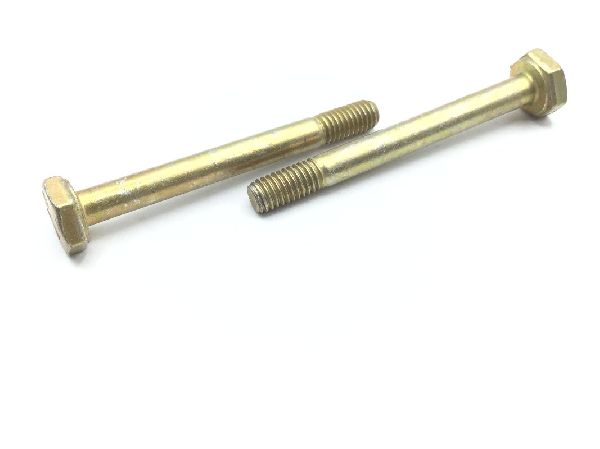

AN3-16A Machine Bolt (4)

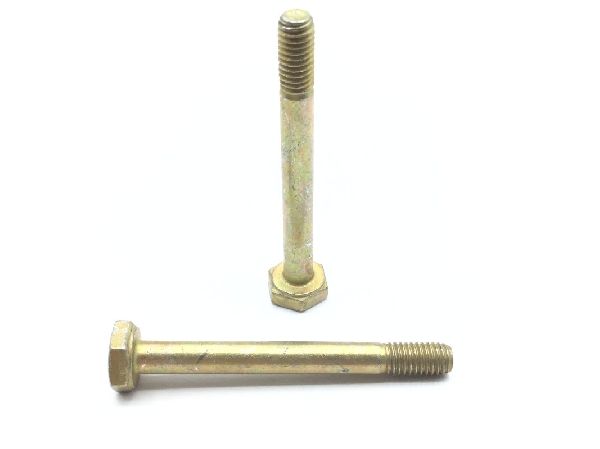

AN3-16A Machine Bolt (5)

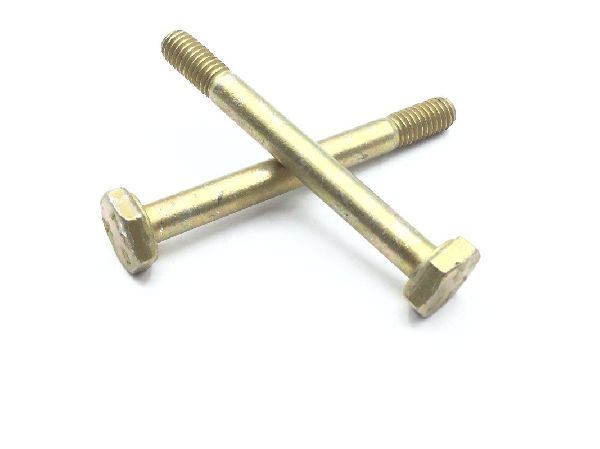

AN3-16A Machine Bolt (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN3-16A Machine Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Head Style

Hexagon

Material

Steel comp 8740 or steel comp 8630 or steel comp 8735 or steel comp 4037 or steel comp 4140 or steel comp 4130

Surface Treatment

Class 3 federal specification all treatment responses type 2 qq-p-416

Thread Class

3a

Fastener Length: 1.781 inches
Features: Finished head
Features Provided: Finished head
Grip Length: 1.375 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.109 inches and 0.141 inches
Min. Tensile Strength (psi): 125000 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.406 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.365 inches and 0.377 inches
