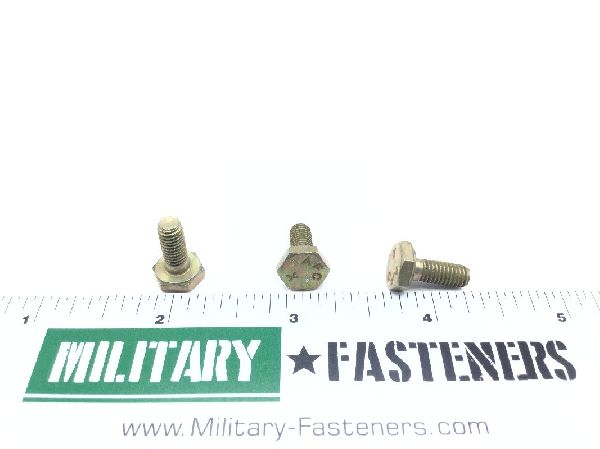

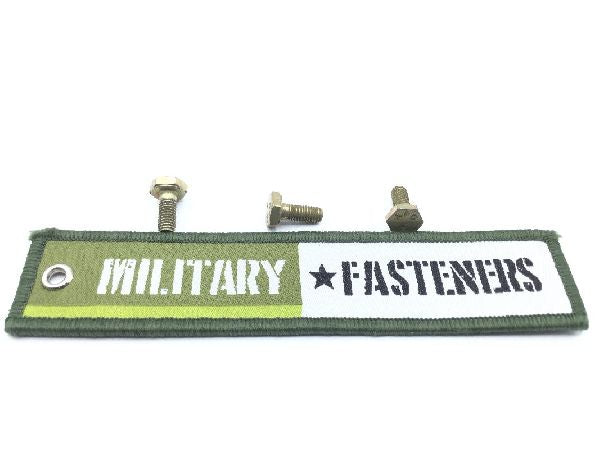

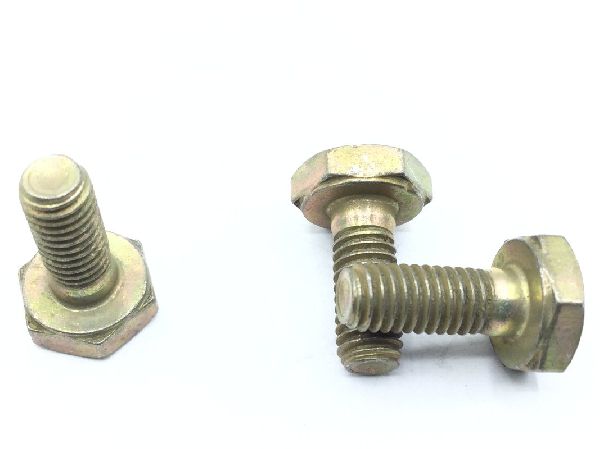

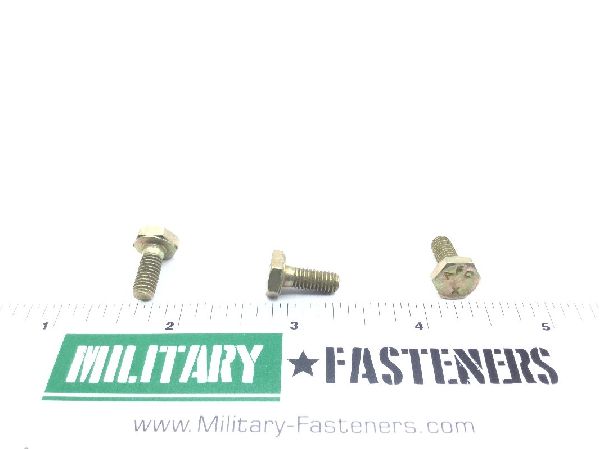

AN3-3A Machine Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $0.68

Units per Pack 50

Price per Pack $34.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $34.00

Add item to quote

Head Style

Dished hexagon

Material

Steel comp 4130 or steel comp 8630 or steel comp 8735 or steel comp 8740

Surface Treatment

Cl 3 federal specification single treatment response type 1 qq-p-416

Thread Class

Fastener Length: Between 0.453 inches and 0.50 inches
Features: Casehardened and finished head
Features Provided: Casehardened and finished head
Grip Length: Between 0.047 inches and 0.078 inches
Hardness Rating: 26 rockwell c and 32 rockwell c
Head Height: Between 0.109 inches and 0.141 inches
Material Specification: Mil-s-6758 military specification 1st material response or mil-s-6050 military specification 2nd material response or mil-s-6098 military specification 3rd material response or mil-s-6049 military specification 4th material response
Min. Tensile Strength (psi): 125000 pounds per square inch
Minimum Yield Strength: 1690 pounds per square inch

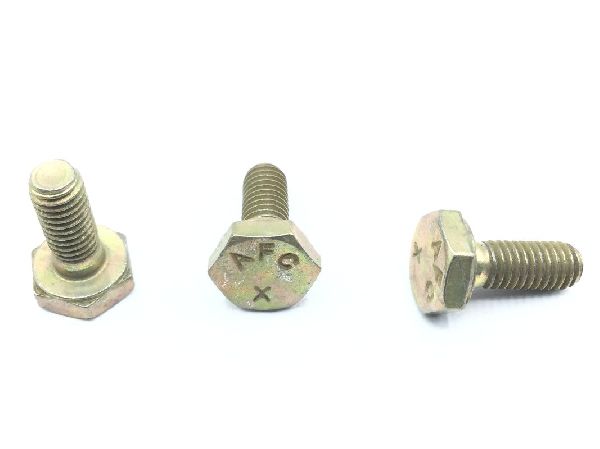

Special Features: Mark non-corrosion resistant steel bolts with x on top of head
Test Data Document: Etc.).
Thread Diameter: 0.19 inches
Thread Direction: Right-hand
Thread Length: 0.406 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.365 inches and 0.377 inches
