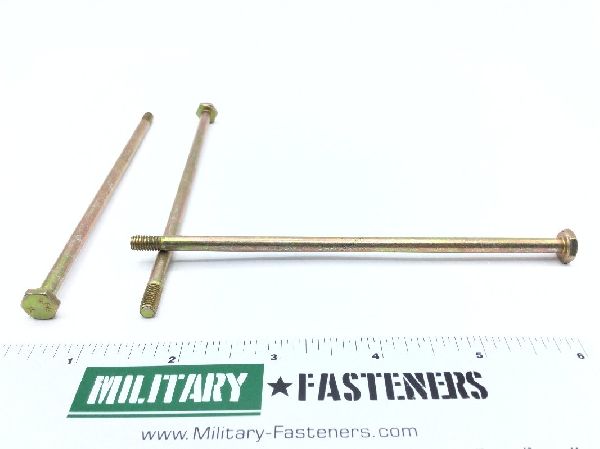

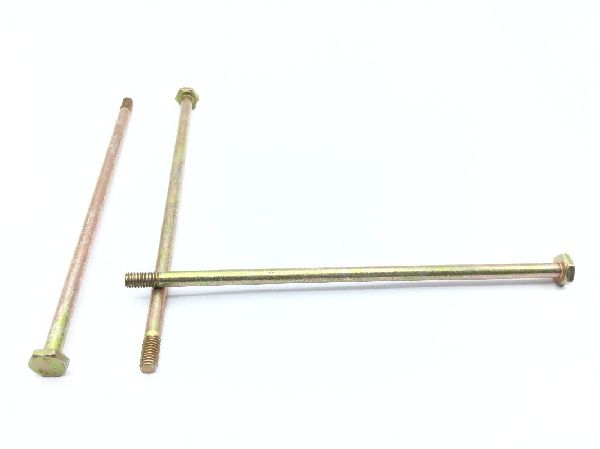

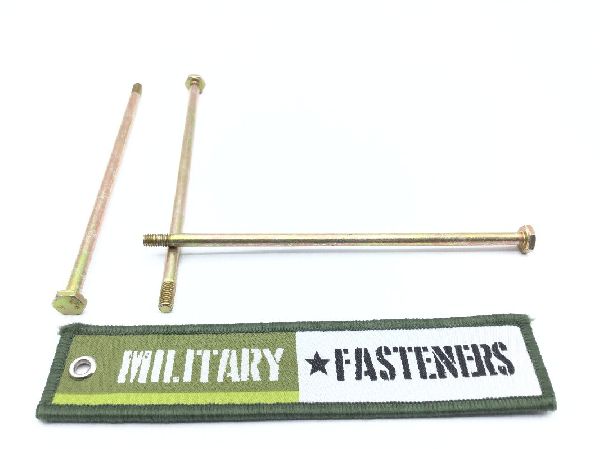

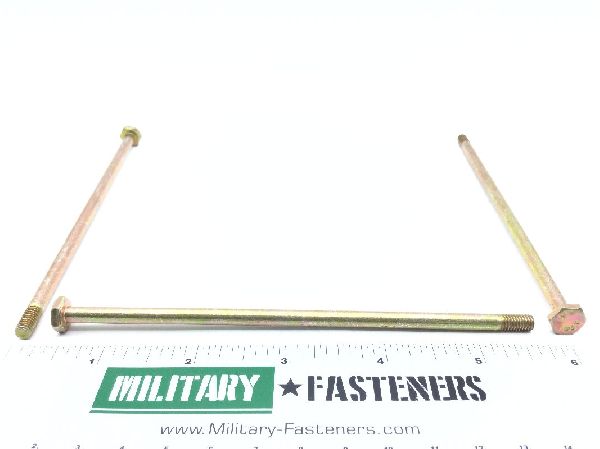

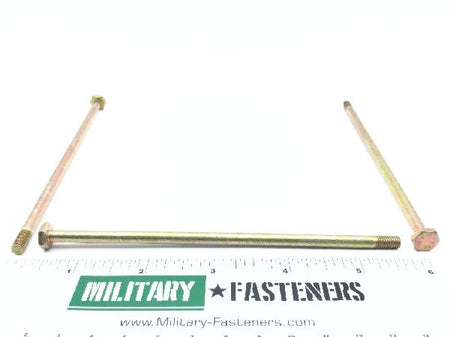

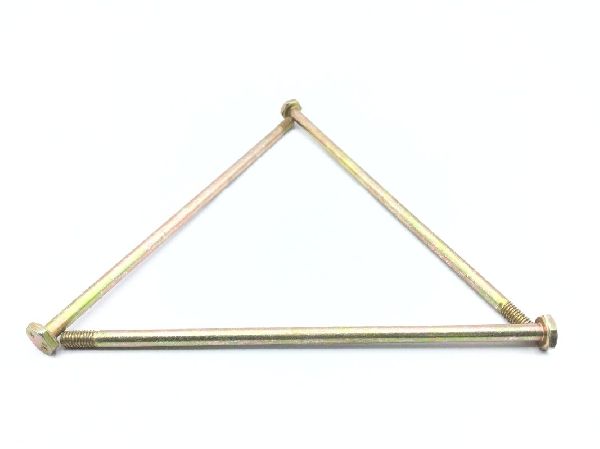

AN3-51A Machine Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $8.24

Units per Pack 5

Price per Pack $41.20

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $41.20

Add item to quote

Head Style

Hexagon

Material

Steel comp

Surface Treatment

Cl 3 federal specification all treatment responses type 2 qq-p-416

Thread Class

Fastener Length: 5.156 inches
Features: Finished head
Features Provided: Finished head
Grip Length: 4.750 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.109 inches and 0.141 inches
Material Specification: Mil-b-6812 military specification all material responses
Min. Tensile Strength (psi): 125000 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.406 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.365 inches and 0.377 inches
