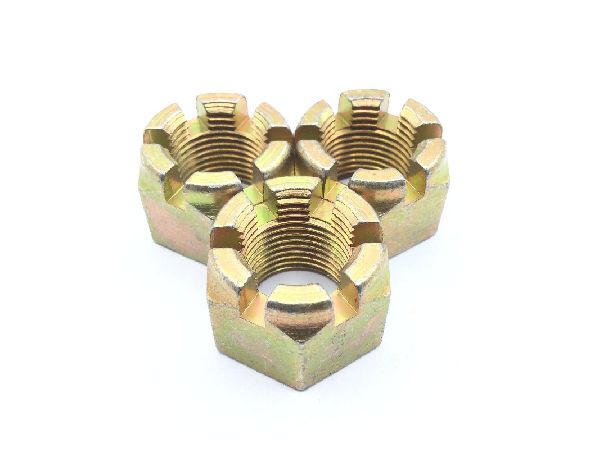

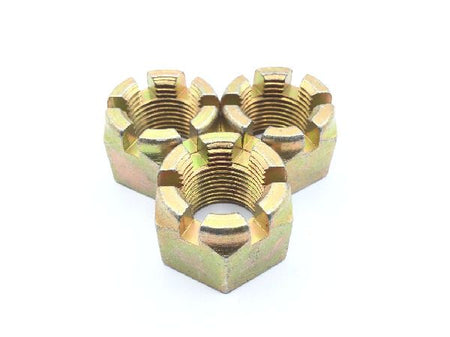

AN310-12 Plain Castellated Hexagon Nut

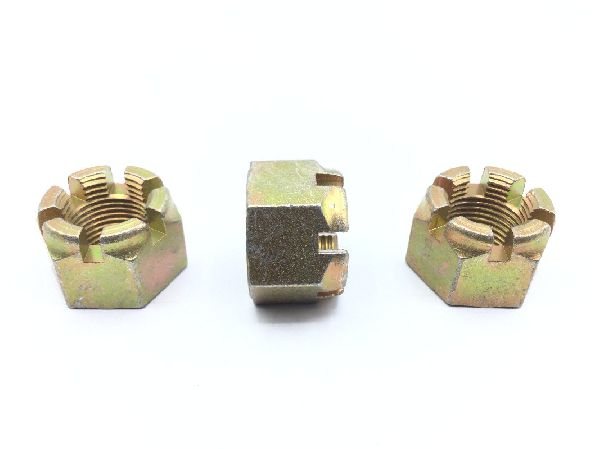

AN310-12 Plain Castellated Hexagon Nut (2)

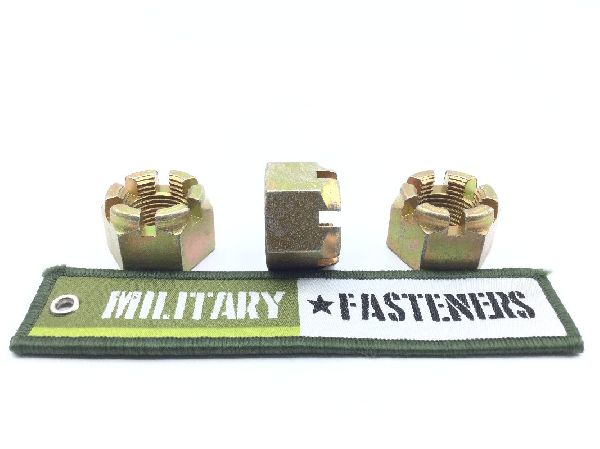

AN310-12 Plain Castellated Hexagon Nut (3)

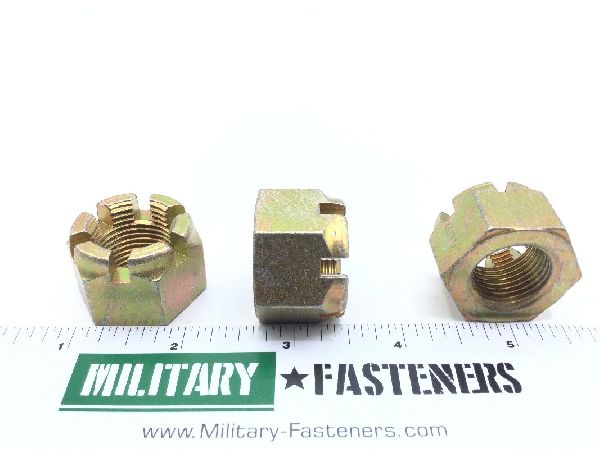

AN310-12 Plain Castellated Hexagon Nut (4)
AN310-12 Plain Castellated Hexagon Nut
AN310-12 Plain Castellated Hexagon Nut (2)
AN310-12 Plain Castellated Hexagon Nut (3)
AN310-12 Plain Castellated Hexagon Nut (4)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN310-12 Plain Castellated Hexagon Nut

Product Series
AN
ECCN
EAR99
Schedule
7318.16.0085
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Steel
Surface Treatment
Qq-p-416 type 2 cl 3 federal specification single treatment response
Thread Class
3b
Thread Series
Unf (fine thread)
Thread Size
0.750 inches
Bearing Surface Type
Chamfered or washer faced
Nut Height
Between 0.796 inches and 0.828 inches
Nut Style
Hexagon castellated
Thread Direction
Right-hand
Thread Qty Per Inch (tpi)
16
Width Across Flats
Between 1.109 inches and 1.127 inches
