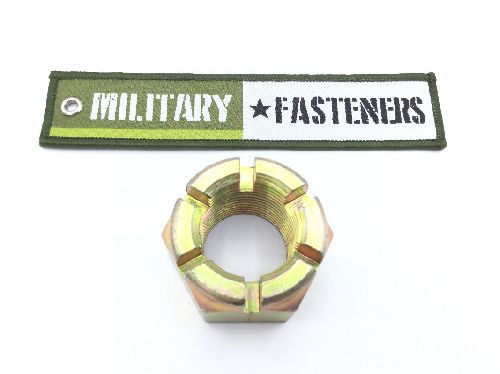

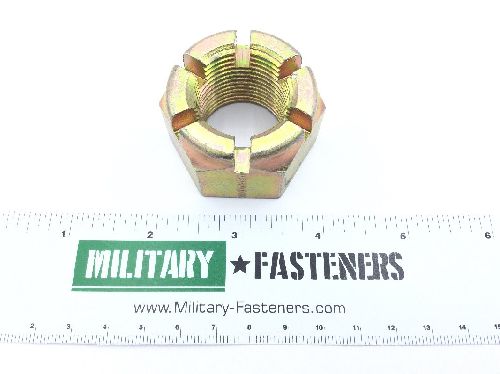

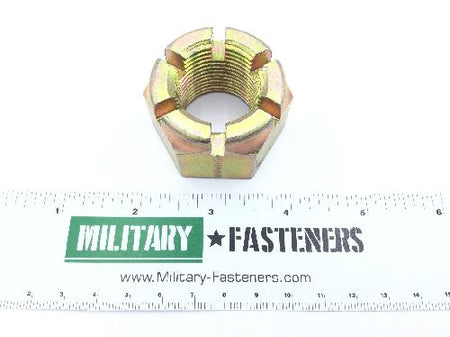

AN310-18 Plain Castellated Hexagon Nut
Unit of Measure:
EA
Add to Quote
We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.
Add to QuoteCouldn't load pickup availability
- Bearing Surface Type
- Washer faced
- Countersink Angle
- 109.0 degrees nut and 111.0 degrees nut
- Hardness Rating
- Between 80.0 rockwell b and 32.0 rockwell c
- Nondefinitive Specification/std Data
- 5 type and a grade
- Nut Height
- Between 1.141 inches and 1.172 inches
- Nut Style
- Hexagon castellated
- Thread Direction
- Right-hand
- Thread Qty Per Inch (tpi)
- 12
- Width Across Flats
- Between 1.667 inches and 1.690 inches
