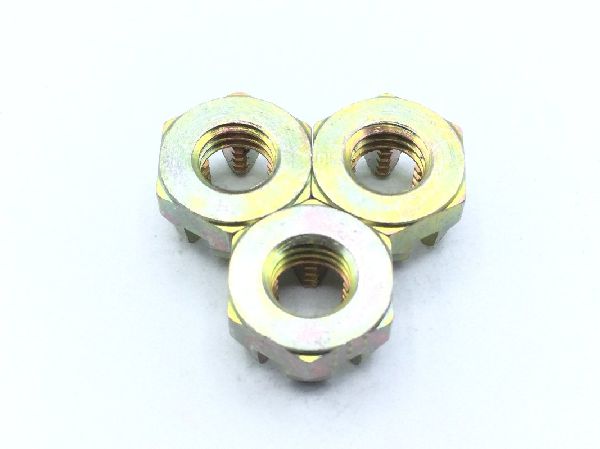

AN310-4 Plain Castellated Hexagon Nut

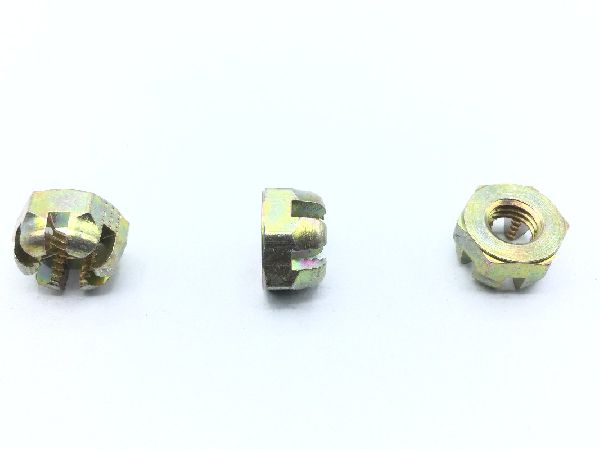

AN310-4 Plain Castellated Hexagon Nut (2)

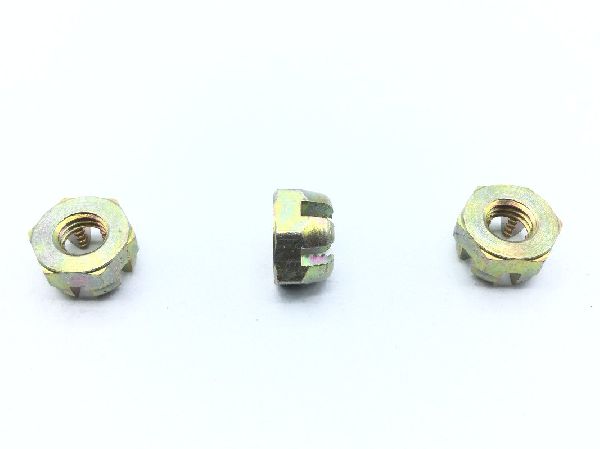

AN310-4 Plain Castellated Hexagon Nut (3)

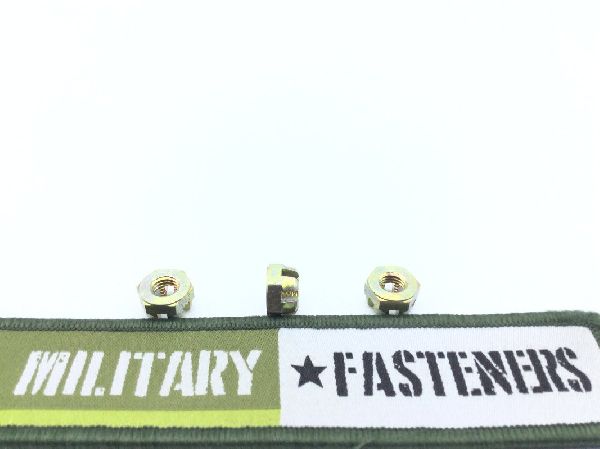

AN310-4 Plain Castellated Hexagon Nut (4)

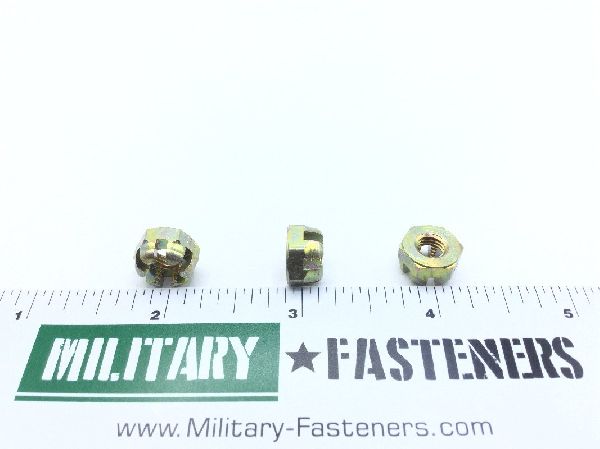

AN310-4 Plain Castellated Hexagon Nut (5)

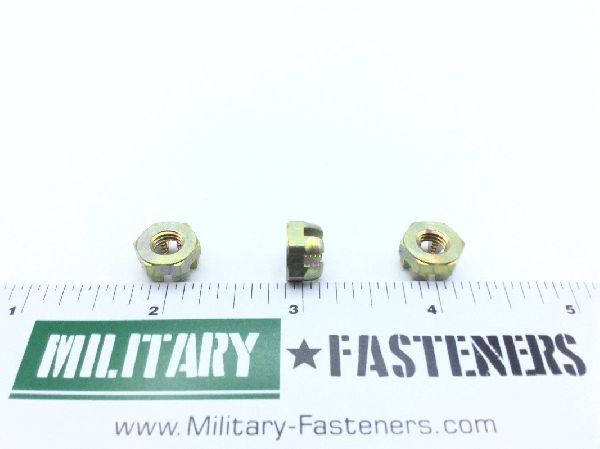

AN310-4 Plain Castellated Hexagon Nut (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN310-4 Plain Castellated Hexagon Nut

NSN: 5310-00-167-1285
Product Series: AN
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $4.50

Units per Pack 10

Price per Pack $45.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $45.00

Add item to quote

Material

Steel

Surface Treatment

Qq-p-416 type 2 class 3 federal specification single treatment response

Thread Class

3b

Thread Series

Unf (fine thread)

Thread Size

0.250 inches

Nut Height: Between 0.265 inches and 0.297 inches
Nut Style: Hexagon castellated
Surface Type: Chamfered or washer faced
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
Width Across Flats: Between 0.428 inches and 0.440 inches
