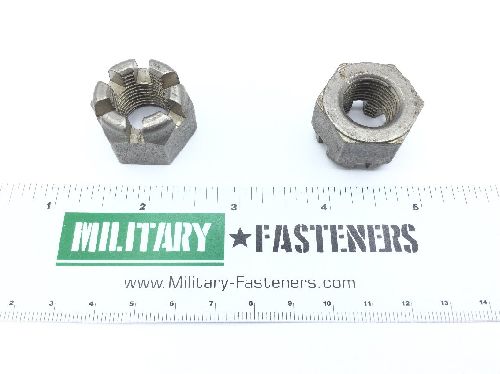

AN310C10 Plain Castellated Hexagon Nut

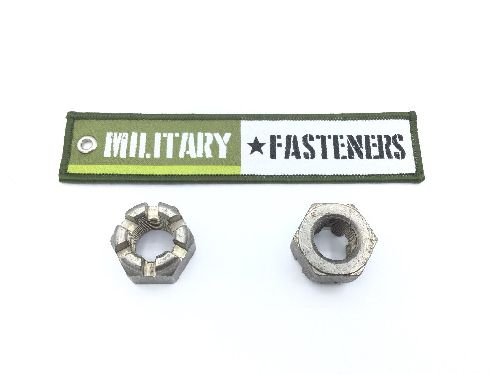

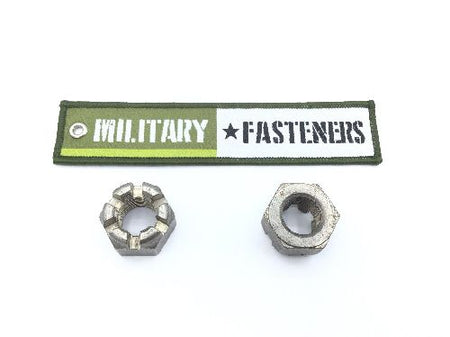

AN310C10 Plain Castellated Hexagon Nut (2)
AN310C10 Plain Castellated Hexagon Nut (3)
AN310C10 Plain Castellated Hexagon Nut
AN310C10 Plain Castellated Hexagon Nut (2)
AN310C10 Plain Castellated Hexagon Nut (3)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN310C10 Plain Castellated Hexagon Nut

NSN
5310-00-268-7292
Product Series
AN
ECCN
EAR99
Schedule
7318.16.0085
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Stainless Steel
Thread Class
3b
Thread Series
Unf (fine thread)
Thread Size
0.625 inches
Bearing Surface Type
Chamfered or washer faced
Material Specification
66 federal standard single material response
Nut Height
Between 0.703 inches and 0.734 inches
Nut Style
Hexagon castellated
Thread Direction
Right-hand
Thread Qty Per Inch (tpi)
18
Width Across Flats
Between 0.986 inches and 1.002 inches
