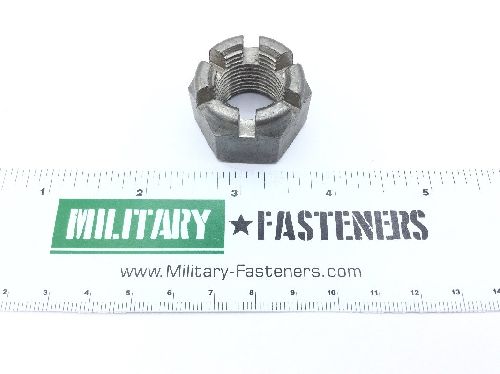

AN310C12 Plain Castellated Hexagon Nut

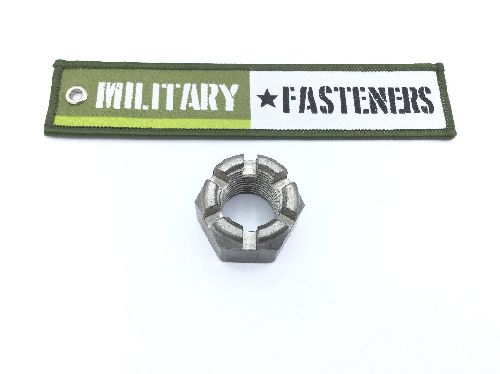

AN310C12 Plain Castellated Hexagon Nut (2)
AN310C12 Plain Castellated Hexagon Nut (3)
AN310C12 Plain Castellated Hexagon Nut
AN310C12 Plain Castellated Hexagon Nut (2)
AN310C12 Plain Castellated Hexagon Nut (3)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN310C12 Plain Castellated Hexagon Nut

Product Series
AN
ECCN
EAR99
Schedule
7318.16.0085
Price per Unit $24.87
Units per Pack 5
Price per Pack $124.35
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:
Total Packs 1
Total Price $124.35
Add item to quote
Material
Stainless Steel
Thread Class
3b
Thread Series
Unf (fine thread)
Thread Size
0.750 inches
Bearing Surface Type
Washer faced
Countersink Angle
109.0 degrees nut and 111.0 degrees nut
Nut Height
Between 0.797 inches and 0.828 inches
Nut Style
Hexagon castellated
Thread Direction
Right-hand
Thread Qty Per Inch (tpi)
16
Width Across Flats
Between 1.109 inches and 1.127 inches
