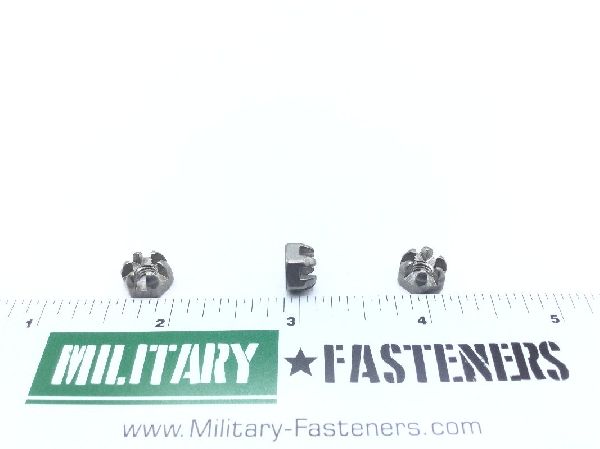

AN310C3 Plain Castellated Hexagon Nut

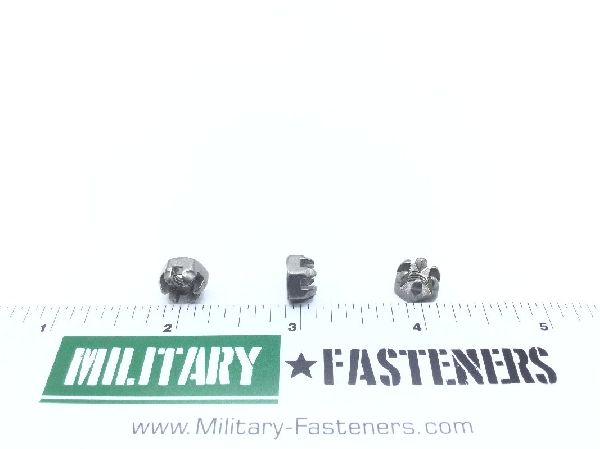

AN310C3 Plain Castellated Hexagon Nut (2)

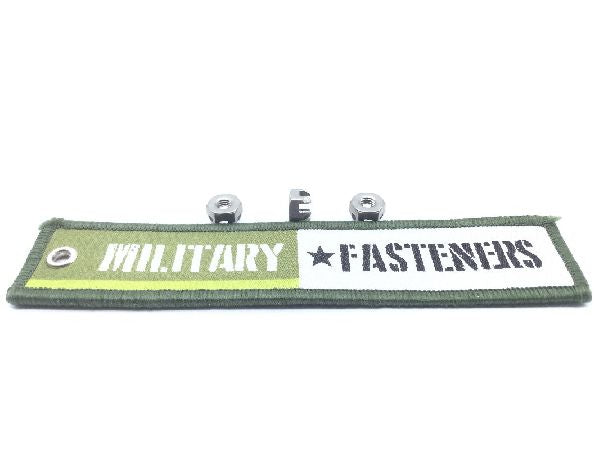

AN310C3 Plain Castellated Hexagon Nut (3)

AN310C3 Plain Castellated Hexagon Nut (4)

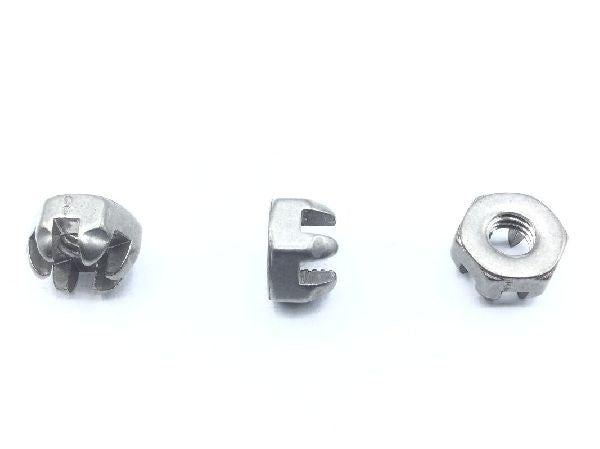

AN310C3 Plain Castellated Hexagon Nut (5)

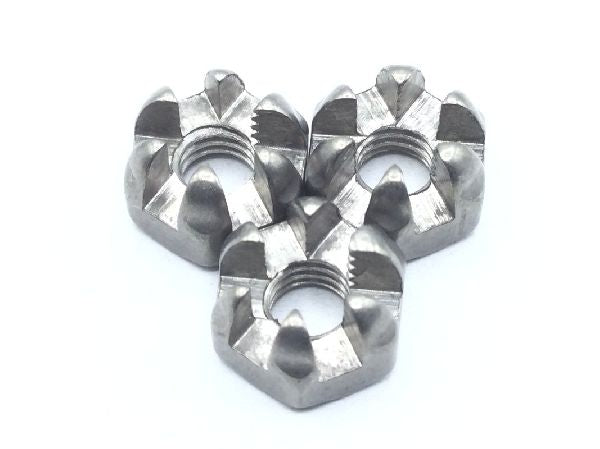

AN310C3 Plain Castellated Hexagon Nut (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN310C3 Plain Castellated Hexagon Nut

Product Series: AN
ECCN: EAR99
Schedule: 7318.16.0085

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Steel

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

3b

Thread Series

Unf (fine thread)

Thread Size

0.190 inches

Bearing Surface Type: Washer faced
Countersink Angle: 109.0 degrees and 111.0 degrees
Material Specification: 66 federal standard all material responses
Nondefinitive Specification/std Data: 5 type
Nut Height: Between 0.234 inches and 0.266 inches
Nut Style: Hexagon castellated
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Width Across Flats: Between 0.365 inches and 0.377 inches
