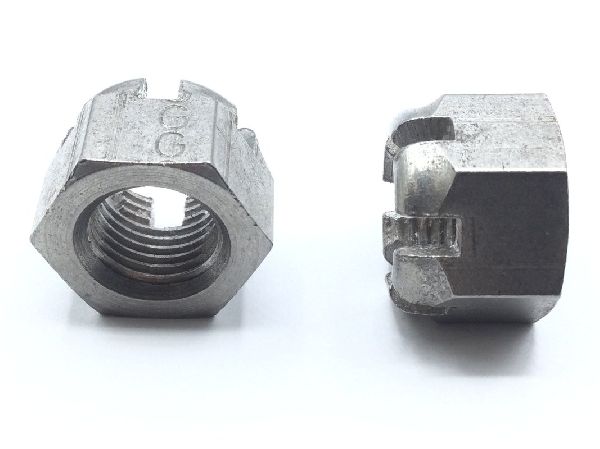

AN310C8 Plain Castellated Hexagon Nut

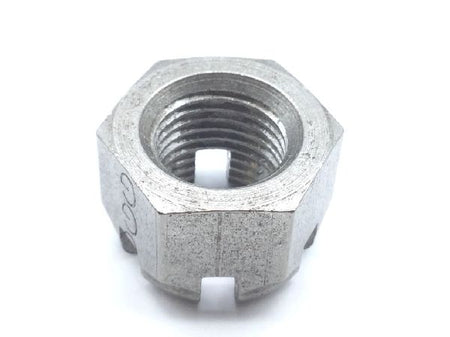

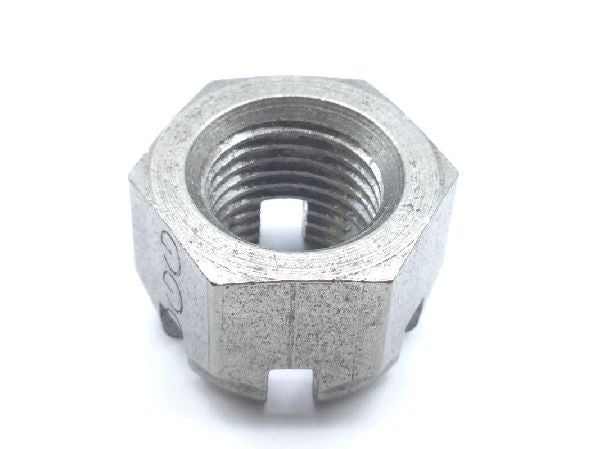

AN310C8 Plain Castellated Hexagon Nut (2)

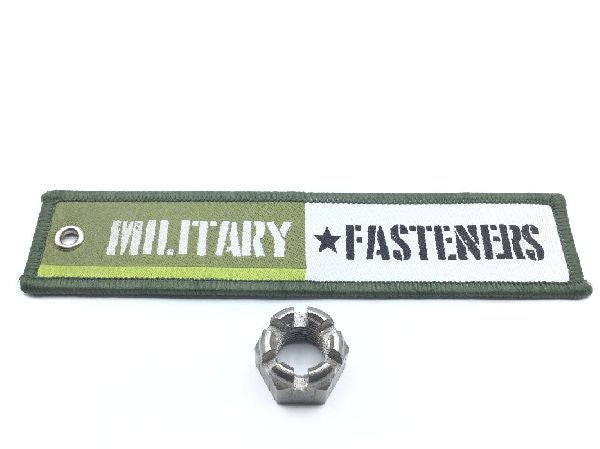

AN310C8 Plain Castellated Hexagon Nut (3)

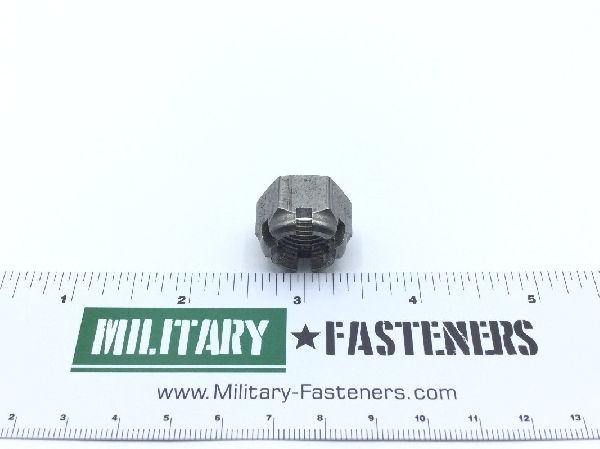

AN310C8 Plain Castellated Hexagon Nut (4)

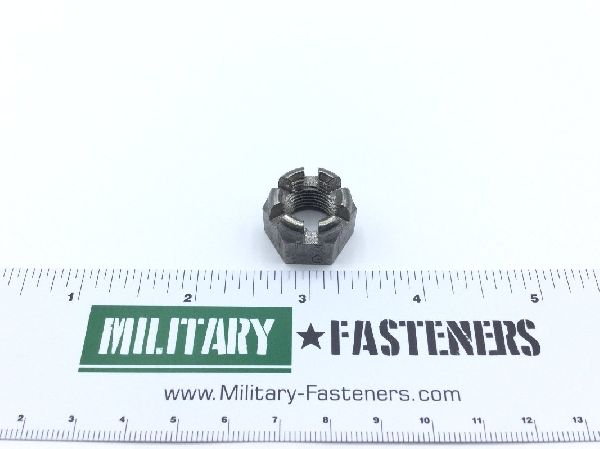

AN310C8 Plain Castellated Hexagon Nut (5)

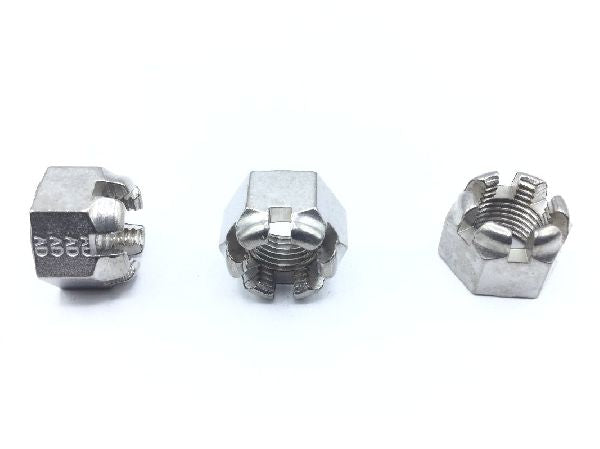

AN310C8 Plain Castellated Hexagon Nut (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN310C8 Plain Castellated Hexagon Nut

Product Series: AN
ECCN: EAR99
Schedule: 7318.16.0000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Steel comp 302 or steel comp 304 or steel comp 305 or steel comp 316 or steel comp 317 or steel comp 347 or steel comp 410 or steel comp 414 or steel comp 416

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

3b

Thread Series

Unf (fine thread)

Thread Size

0.500 inches

Bearing Surface Type: Washer faced
Countersink Angle: 109.0 degrees nut and 111.0 degrees nut
Material Specification: 66 federal standard all material responses
Nondefinitive Specification/std Data: 5 type
Nut Height: Between 0.547 inches and 0.578 inches
Nut Style: Hexagon castellated
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 20
Width Across Flats: Between 0.738 inches and 0.752 inches
